Effect of solid-liquid stirring on membrane deformation in the slurry electrolysis tank

LU Ting-ting; YANG Run-jie; LIU Feng-qin; ZHAO Hong-liang

doi:10.13374/j.issn2095-9389.2022.05.23.008

Volume 45 Issue 7

Jul. 2023

Turn off MathJax

Article Contents

Article Navigation > Chinese Journal of Engineering > 2023 > 45(7): 1205-1213

LU Ting-ting, YANG Run-jie, LIU Feng-qin, ZHAO Hong-liang. Effect of solid-liquid stirring on membrane deformation in the slurry electrolysis tank[J]. Chinese Journal of Engineering, 2023, 45(7): 1205-1213. doi: 10.13374/j.issn2095-9389.2022.05.23.008

Citation:

LU Ting-ting, YANG Run-jie, LIU Feng-qin, ZHAO Hong-liang. Effect of solid-liquid stirring on membrane deformation in the slurry electrolysis tank[J]. Chinese Journal of Engineering, 2023, 45(7): 1205-1213. doi: 10.13374/j.issn2095-9389.2022.05.23.008

Citation:

PDF( 2332 KB)

Effect of solid-liquid stirring on membrane deformation in the slurry electrolysis tank

doi: 10.13374/j.issn2095-9389.2022.05.23.008

School of Metallurgical and Ecological Engineering, University of Science and Technology Beijing, Beijing 100083, China

More Information

Corresponding author: E-mail: zhaohl@ustb.edu.cn
Received Date: 2022-05-23
Available Online: 2022-07-14
Publish Date: 2023-07-25

Abstract

Abstract

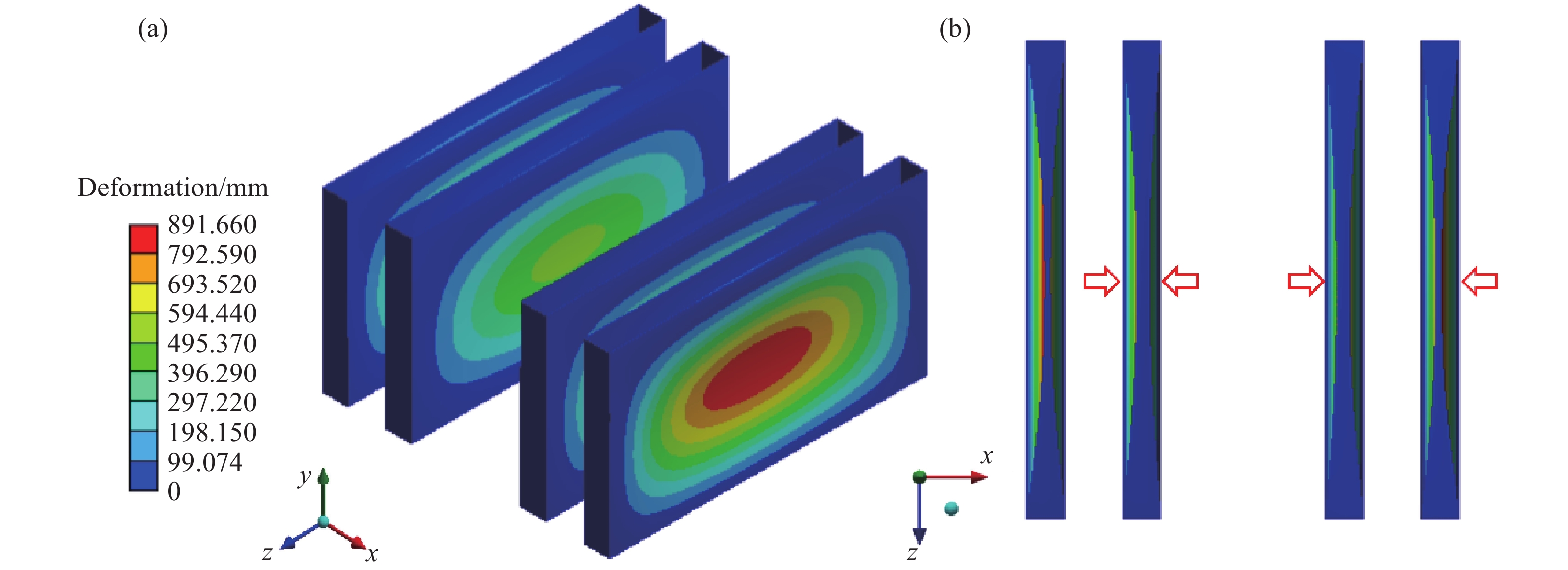

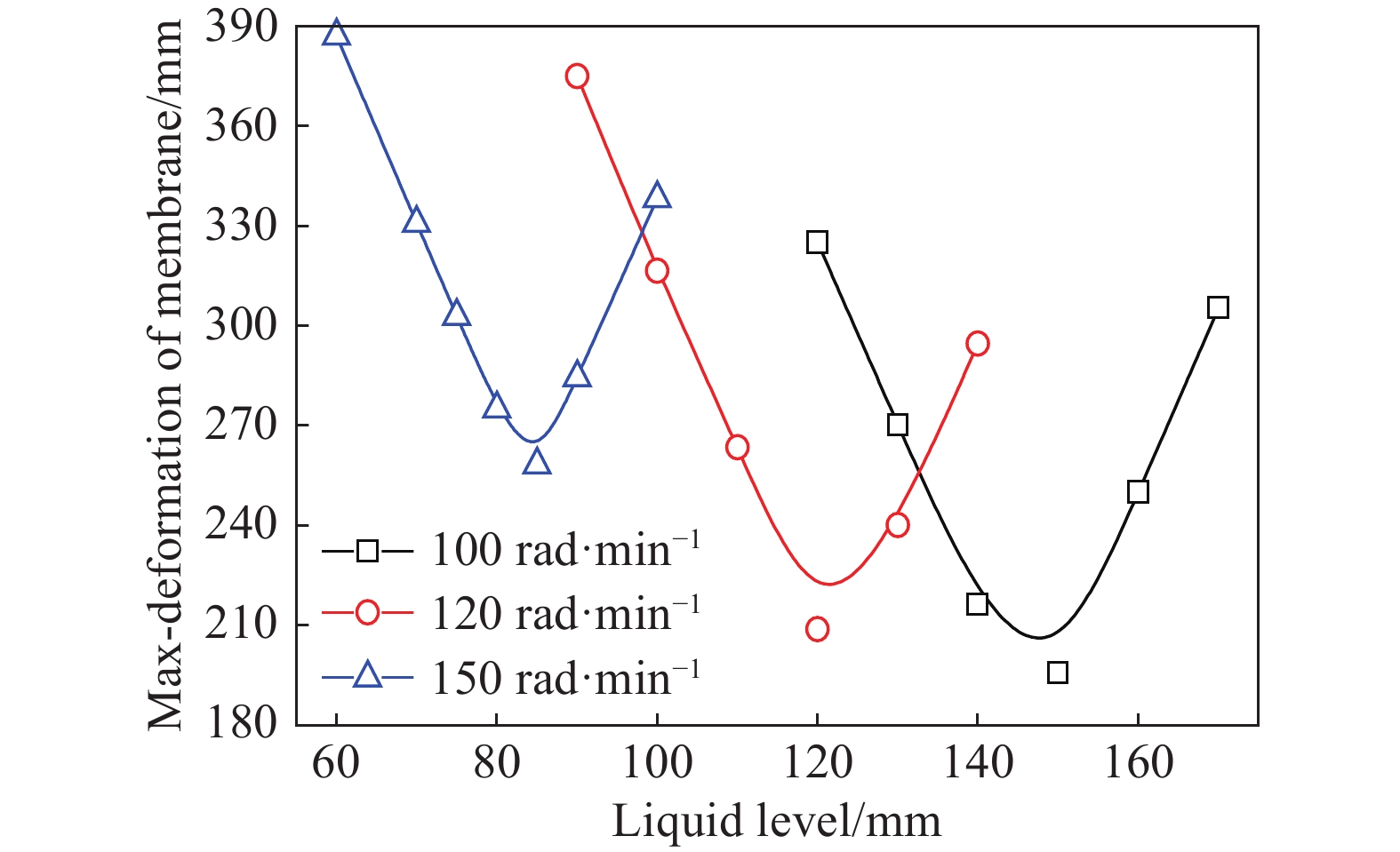

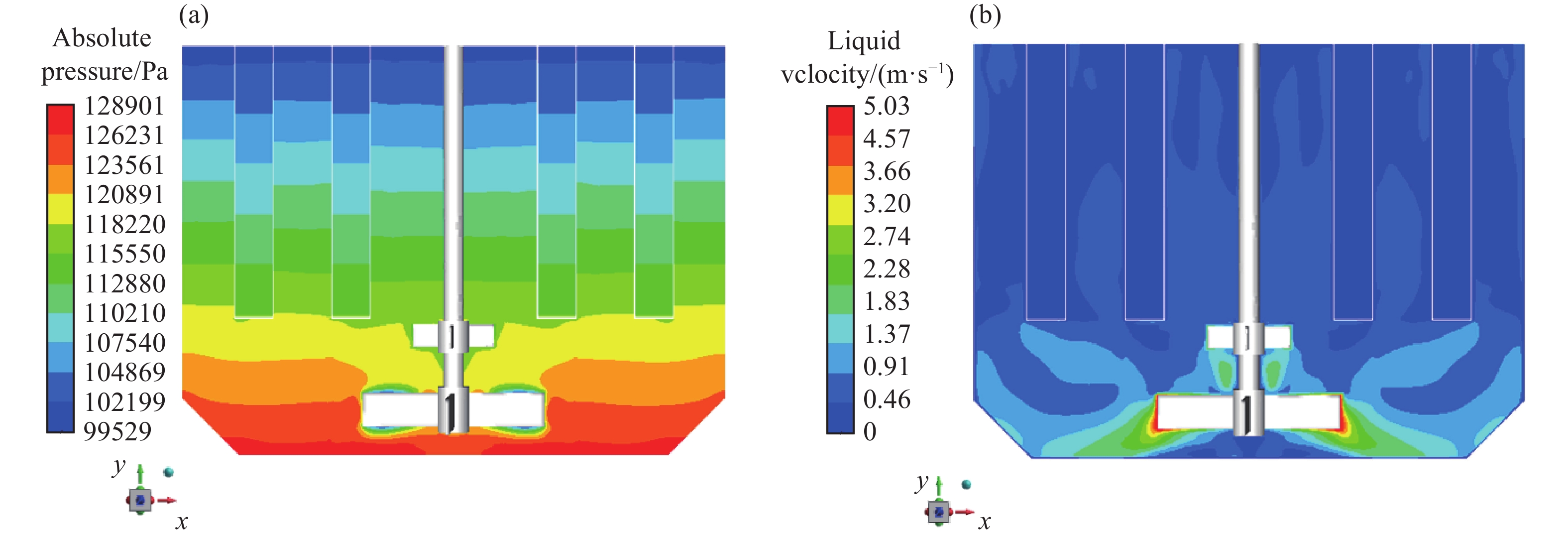

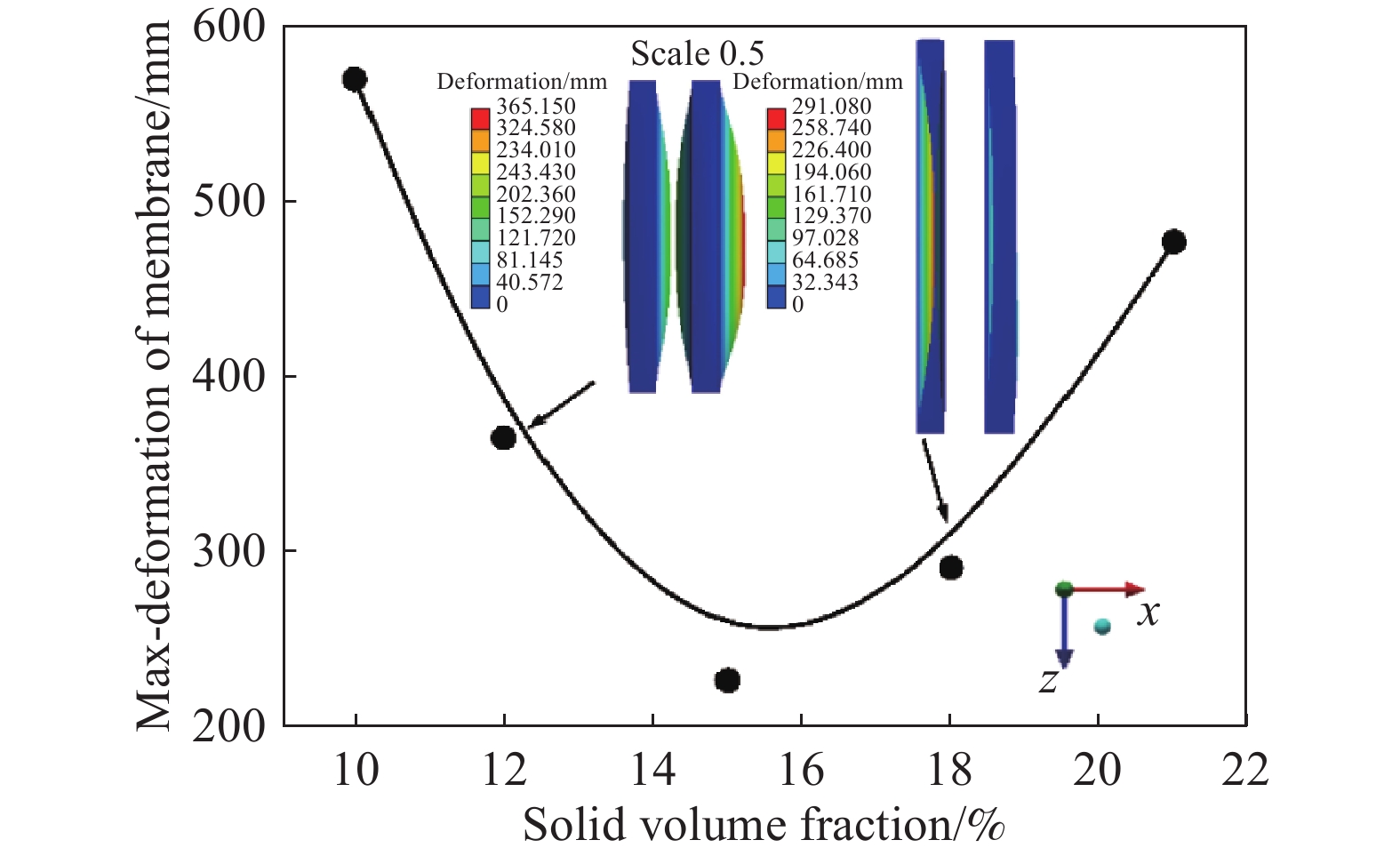

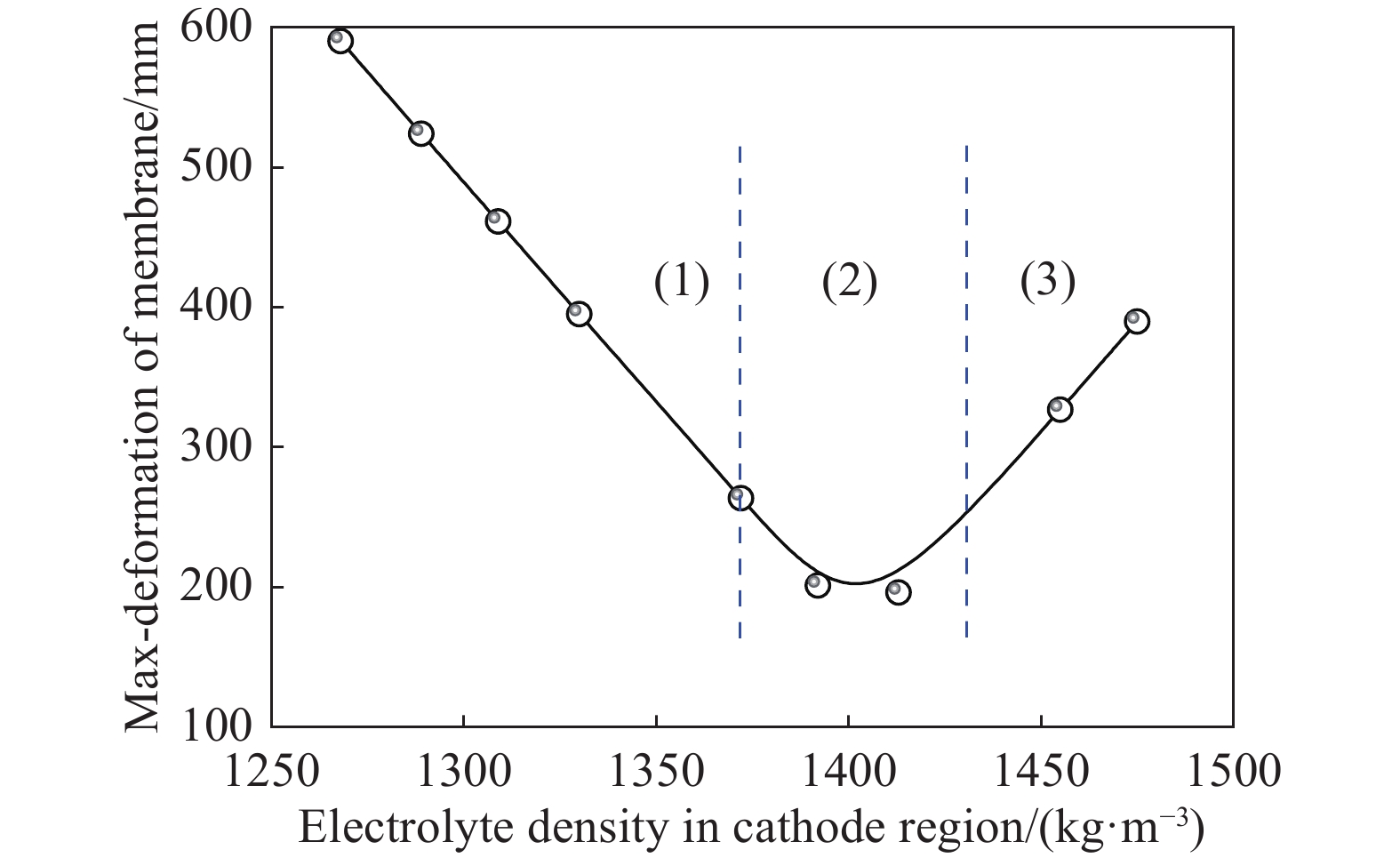

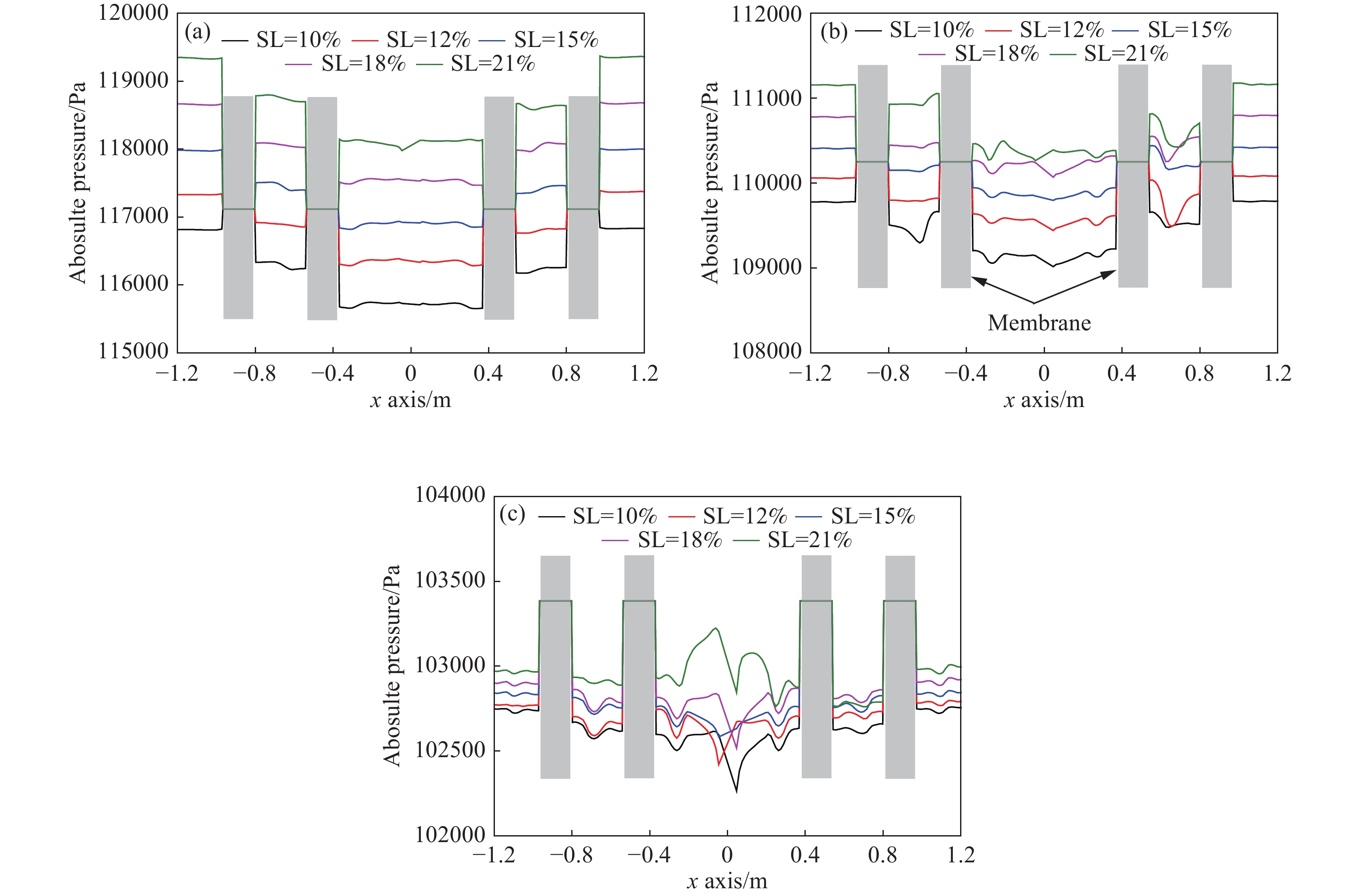

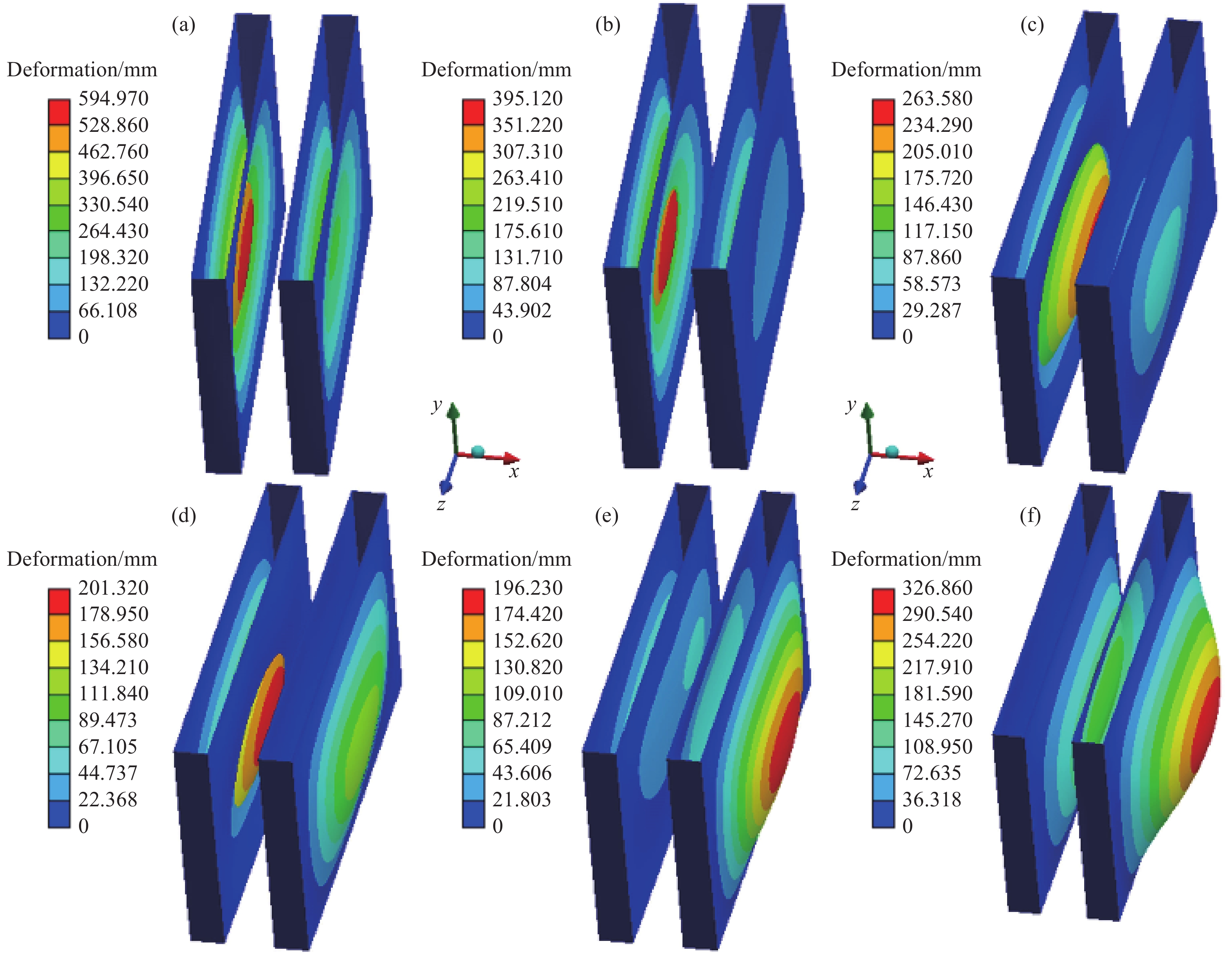

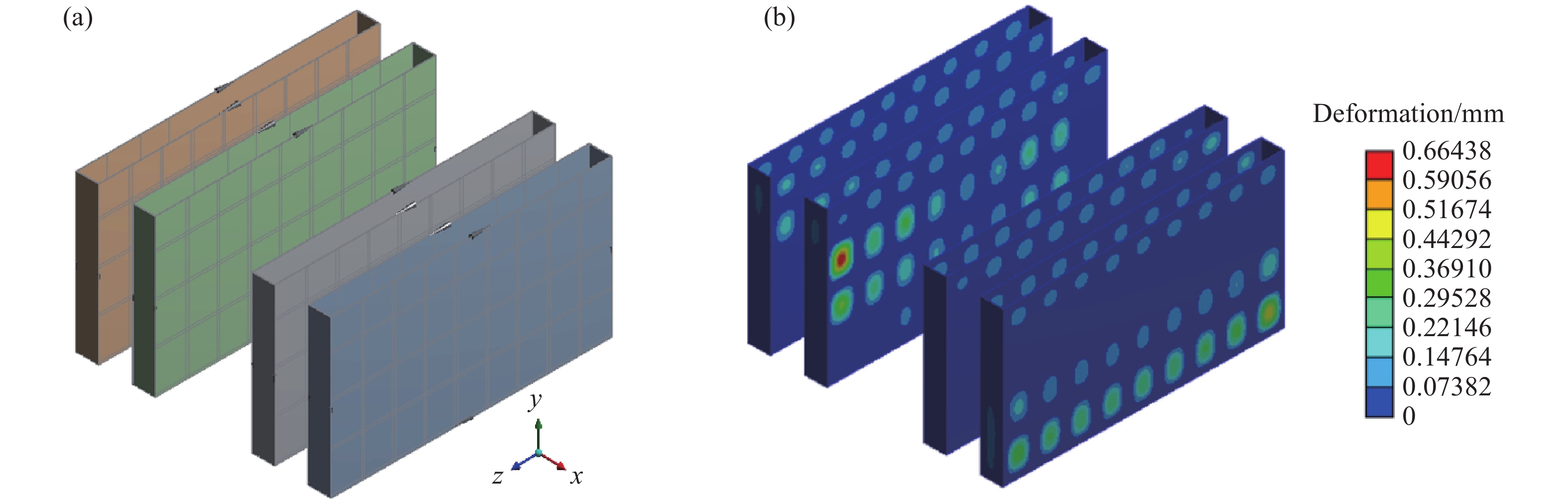

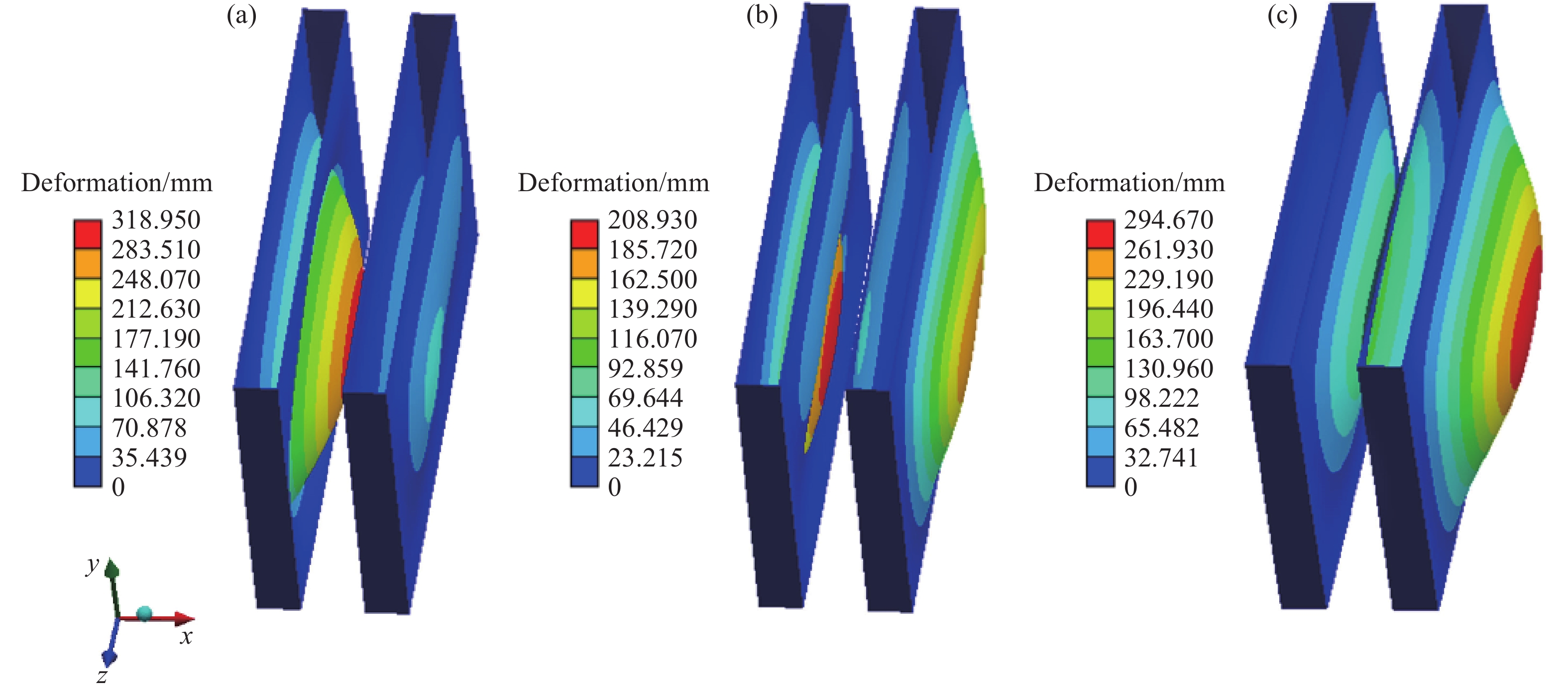

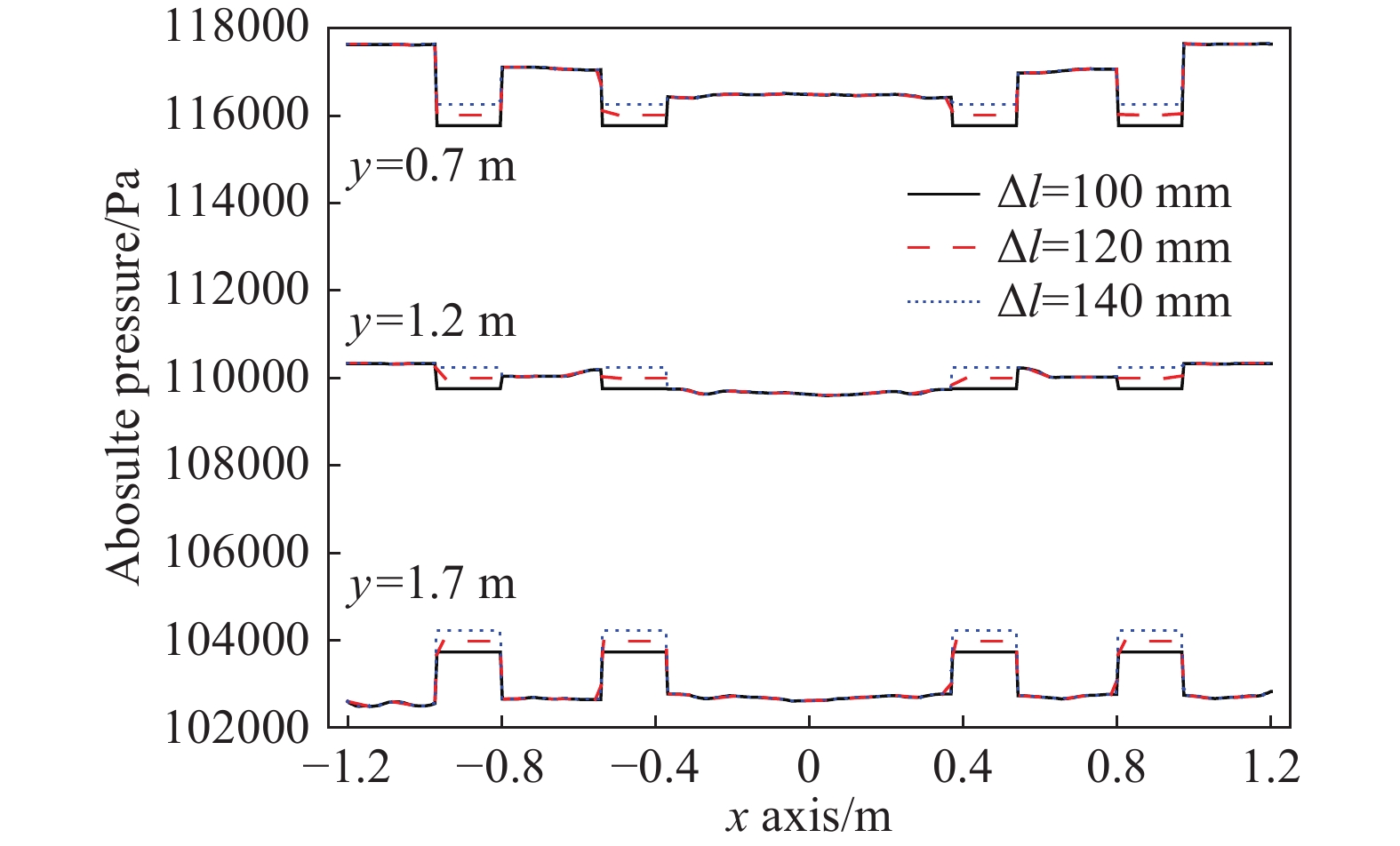

As a short-process hydrometallurgical technology, slurry electrolysis (SE) collects the stirring that improves the suspension of ore, the membrane bag that acts as purifying, and the cathodic and anodic plates that promote ion migration in one tank. The stirring helps to maintain the ore suspended. As the SE tank is stirred, the membrane bag will deform and become damaged, severely limiting production efficiency. In this research, the one-way fluid-structure interaction (FSI) was used to examine the impact of the solid–liquid suspension on membrane deformation, which was based on the computational fluid dynamics (CFD) and solid finite element method (FEM). Through the full 3D quantitative analysis, the database of membrane deformation under various conditions was established. The membrane was extruded to the center during the initial stirring conditions, and the greatest deformation measured 891.66 mm. Primarily, membrane deformation was brought on by the pressure differential brought on by liquid velocity, solid concentration distribution, and liquid level. The maximum deformation of the membrane first decreased and then increased with the increased liquid level difference between the cathode and anode. With the upper fixed constraint, the maximum deformation of the membrane appears at y = 1.2 m. The larger the stirring speed is, the smaller the optimal liquid level difference required to minimize the membrane deformation. The stirring speed changes the overall pressure distribution by changing the dynamic pressure in the anode domain. The maximum deformation of the membrane decreases first and then increases with the increase of electrolyte density in the cathode domain. The membrane bag is extruded to the cathode domain when the pressure in the cathode region is insufficient because of the low electrolyte density in the cathode domain. When the cathode pressure increases, the membrane bag bulges to both sides, and the inner bulge is greater than the outer. With an increase in solid volume concentration (SL) in the anode domain, the maximum membrane deformation first reduces and subsequently increases. When SL = 15%, the membrane deformation reaches the minimum value of 226.7 mm. The closer to the bottom of the tank, the greater the influence of solid content on absolute pressure. The maximum membrane deformation is drastically decreased to 0.664 mm when the frame restrictions are considered. It can support the industrial control process via visual analysis.
- slurry electrolysis,
- fluid-solid interaction,
- membrane deformation,
- CFD?FEM,
- pressure difference

FullText(HTML)

References(26)

References

[1]	邱定蕃. 礦漿電解的特點和研究背景. 礦冶, 1998, 7(4):40 Qiu D F. The characteristics of slurry electrolysis and research background. Min Metall, 1998, 7(4): 40
[2]	王成彥, 尹飛, 陳永強, 等. 一種礦漿電解裝置: 中國專利, 202968719U. 2013-06-05 Wang C Y, Yin F, Chen Y Q, et al. A Slurry Electrolysis Device: China Patent, 202968719U. 2013-06-05
[3]	楊顯萬, 張英杰, 鄧綸浩, 等. 礦漿電解過程的浸出機理. 中國工程科學, 2000, 2(6):49 doi: 10.3969/j.issn.1009-1742.2000.06.010 Yang X W, Zhang Y J, Deng L H, et al. Leaching mechanism of slurry electrolysis. Eng Sci, 2000, 2(6): 49 doi: 10.3969/j.issn.1009-1742.2000.06.010
[4]	陳永強, 劉勇, 王成彥, 等. 高砷銻金精礦礦漿電解連續擴大試驗. 有色金屬(冶煉部分), 2015(12):5 Chen Y Q, Liu Y, Wang C Y, et al. Continuous expanding test on slurry electrolysis of As-rich antimonic gold concentrate. Nonferrous Met Extr Metall, 2015(12): 5
[5]	王成彥, 邱定蕃, 江培海, 等. 礦漿電解法處理脆硫銻鉛礦的介質體系選擇. 有色金屬, 2002, 2:35 Wang C Y, Qiu D F, Jiang P H, et al. Slurry electrolysis medium selection for jamesonite treatment. Nonferrous Met, 2002, 2: 35
[6]	Wang C Y, Qiu D F, Yin F, et al. Slurry electrolysis of ocean polymetallic nodule. Trans Nonferrous Met Soc China, 2010, 20: 60 doi: 10.1016/S1003-6326(10)60013-1
[7]	Li F F, Chen M J, Shu J C, et al. Copper and gold recovery from CPU sockets by one-step slurry electrolysis. J Clean Prod, 2019, 213: 673 doi: 10.1016/j.jclepro.2018.12.161
[8]	Zhang Y L, Wang C Y, Ma B Z, et al. Extracting antimony from high arsenic and gold-containing stibnite ore using slurry electrolysis. Hydrometallurgy, 2019, 186: 284 doi: 10.1016/j.hydromet.2019.04.026
[9]	王成彥, 邱定蕃, 江培海, 等. 輝鉍礦礦漿電解過程硫的形成及氧化機理. 有色金屬(冶煉部分), 2002(6):2 Wang C Y, Qiu D F, Jiang P H, et al. Foramtion and oxidation mechanism of sulfur in the process of slurry electrolysis on bismuthinite. Nonferrous Met Extr Metall, 2002(6): 2
[10]	Zhang Y L, Qiu D F, Wang C Y, et al. Anodic process of stibnite in slurry electrolysis: The direct collision oxidation. Chin J Chem Eng, 2022, 41: 466 doi: 10.1016/j.cjche.2021.12.011
[11]	Lu T T, Shen H, Na G Y, et al. CFD simulation of suspension characteristics in a stirred tank for slurry electrolysis. Metall Mater Trans B, 2022, 53(3): 1747 doi: 10.1007/s11663-022-02484-8
[12]	張永祿, 王成彥, 陳永強, 等. 高砷銻金精礦礦漿電解生產實踐. 有色金屬(冶煉部分), 2014(11):16 Zhang Y L, Wang C Y, Chen Y Q, et al. Plant practice of slurry electrolysis of high arsenic gold-bearing stibnite concentrate. Nonferrous Met Extr Metall, 2014(11): 16
[13]	楊德澤. 礦漿電解從WPCBs中回收金屬的實驗室放大工藝研究[學位論文]. 綿陽: 西南科技大學, 2019 Yang D Z. Laboratory Amplification for Metals Recovering From WPCBs by Slurry Electrolysis [Dissertation]. Mianyang: Southwest University of Science and Technology, 2019
[14]	Heners J P, Radtke L, Hinze M, et al. Adjoint shape optimization for fluid–structure interaction of ducted flows. Computational Mechanics, 2017, 61(3): 259
[15]	Khalafvand S S, Ng E Y K, Zhong L. CFD simulation of flow through heart: A perspective review. Comput Methods Biomech Biomed Eng, 2011, 14(1): 113 doi: 10.1080/10255842.2010.493515
[16]	Zhu H, Sun Q L, Liu X F, et al. Fluid–structure interaction-based aerodynamic modeling for flight dynamics simulation of parafoil system. Nonlinear Dyn, 2021, 104(4): 3445 doi: 10.1007/s11071-021-06486-0
[17]	Yang M, Wei Y S, Zheng X, et al. CFD simulation and optimization of membrane scouring and nitrogen removal for an airlift external circulation membrane bioreactor. Bioresour Technol, 2016, 219: 566 doi: 10.1016/j.biortech.2016.07.139
[18]	Jin Y, Liu C L, Song X F, et al. Computational fluid dynamics simulation as a tool for optimizing the hydrodynamic performance of membrane bioreactors. RSC Adv, 2019, 9(55): 32034 doi: 10.1039/C9RA06706J
[19]	Gowda H G B, Wallrabe U. Simulation of an adaptive fluid-membrane piezoelectric lens. Micromachines, 2019, 10(12): 797 doi: 10.3390/mi10120797
[20]	吳姝, 宋俊偉, 魏新華, 等. 植保機械用泵穩壓氣室隔膜變形特性研究. 振動與沖擊, 2019, 38(7):257 Wu S, Song J W, Wei X H, et al. Deformation characteristics of stable pressure chamber diaphragm for pumps of plant protection machinery. J Vib Shock, 2019, 38(7): 257
[21]	Ageze M, Hu Y F, Wu H C. Comparative study on uni- and Bi-directional fluid structure coupling of wind turbine blades. Energies, 2017, 10(10): 1499 doi: 10.3390/en10101499
[22]	Tezduyar T E, Sathe S, Pausewang J, et al. Interface projection techniques for fluid–structure interaction modeling with moving-mesh methods. Comput Mech, 2008, 43(1): 39 doi: 10.1007/s00466-008-0261-7
[23]	Sotiropoulos F, Yang X L. Immersed boundary methods for simulating fluid–structure interaction. Prog Aerosp Sci, 2014, 65: 1 doi: 10.1016/j.paerosci.2013.09.003
[24]	張亮, 何環宇, 張學偉, 等. 垂直軸水輪機單向流固耦合數值研究. 華中科技大學學報(自然科學版), 2014, 42(5):80 Zhang L, He H Y, Zhang X W, et al. One way fluid and structure interaction numerical analysis of vertical axis tidal turbine. J Huazhong Univ Sci Technol Nat Sci, 2014, 42(5): 80
[25]	劉厚林, 徐歡, 吳賢芳, 等. 基于流固耦合的導葉式離心泵強度分析. 振動與沖擊, 2013, 32(12):27 doi: 10.3969/j.issn.1000-3835.2013.12.006 Liu H L, Xu H, Wu X F, et al. Strength analysis of a diffuser pump based on fluid-structure interaction. J Vib Shock, 2013, 32(12): 27 doi: 10.3969/j.issn.1000-3835.2013.12.006
[26]	Shahrestani A B, Alshuraiaan B, Izadi M. Combined natural convection-FSI inside a circular enclosure divided by a movable barrier. Int Commun Heat Mass Transf, 2021, 126: 105426 doi: 10.1016/j.icheatmasstransfer.2021.105426
