Effect of austenite grain size on the acicular ferrite transformation in Ti–Zr treated steel

YAO Hao; LIU Cheng-jun; ZHANG Li-feng

doi:10.13374/j.issn2095-9389.2022.05.03.003

Volume 45 Issue 6

May 2023

Turn off MathJax

Article Contents

Article Navigation > Chinese Journal of Engineering > 2023 > 45(6): 907-914

YAO Hao, LIU Cheng-jun, ZHANG Li-feng. Effect of austenite grain size on the acicular ferrite transformation in Ti–Zr treated steel[J]. Chinese Journal of Engineering, 2023, 45(6): 907-914. doi: 10.13374/j.issn2095-9389.2022.05.03.003

Citation:

YAO Hao, LIU Cheng-jun, ZHANG Li-feng. Effect of austenite grain size on the acicular ferrite transformation in Ti–Zr treated steel[J]. Chinese Journal of Engineering, 2023, 45(6): 907-914. doi: 10.13374/j.issn2095-9389.2022.05.03.003

Citation:

PDF( 7760 KB)

Effect of austenite grain size on the acicular ferrite transformation in Ti–Zr treated steel

doi: 10.13374/j.issn2095-9389.2022.05.03.003

YAO Hao^1
,,
LIU Cheng-jun^{1
,
,},
ZHANG Li-feng^{2
,
,}

1.
School of Metallurgy, Northeastern University, Shenyang 110819, China
2.
School of Mechanical and Materials Engineering, North China University of Technology, Beijing 100144, China

More Information

Corresponding author: LIU Cheng-jun, E-mail: liucj@smm.neu.edu.cn; ZHANG Li-feng, E-mail: zhanglifeng@ncut.edu.cn
Received Date: 2022-05-03
Available Online: 2022-06-14
Publish Date: 2023-05-31

Abstract

Abstract

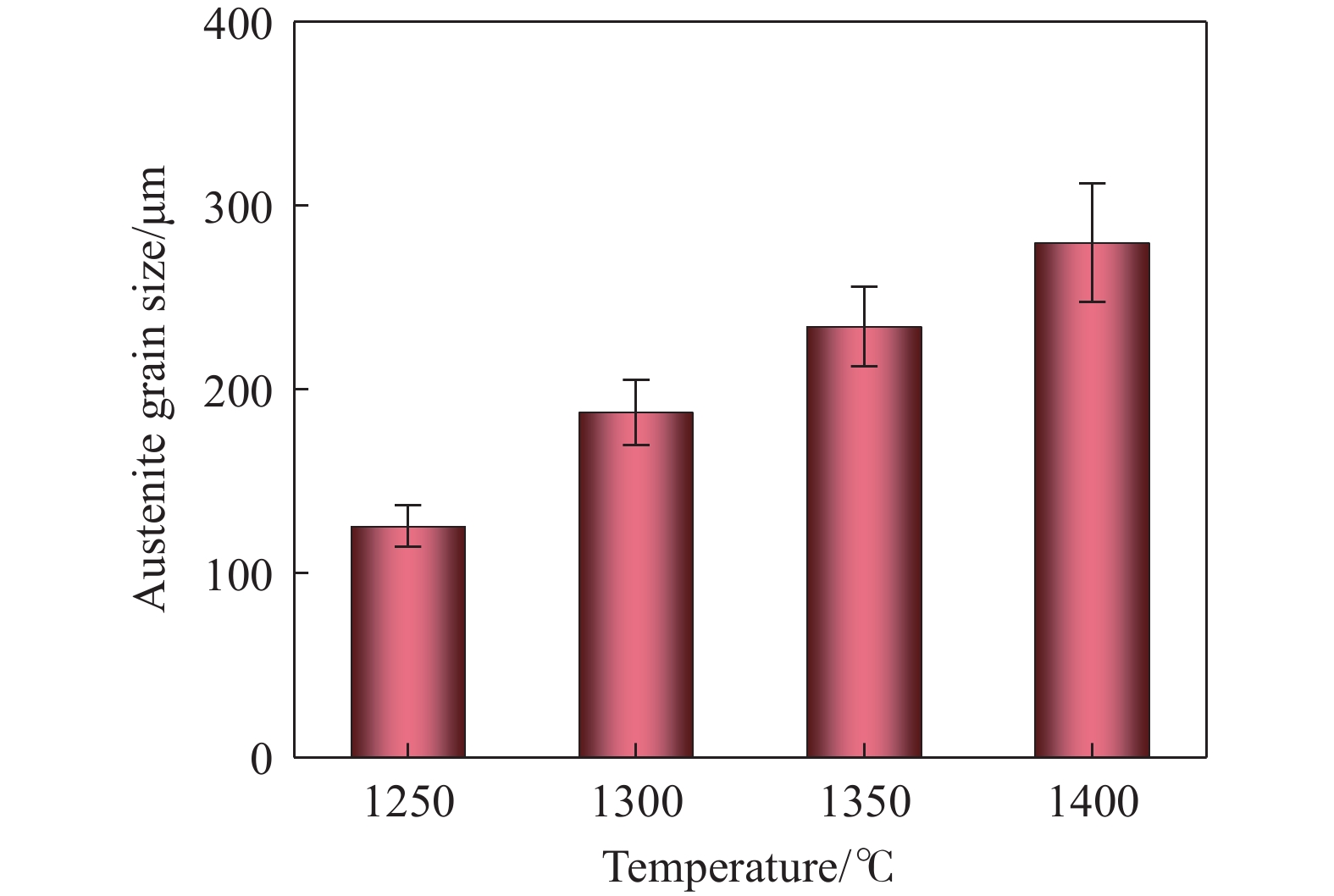

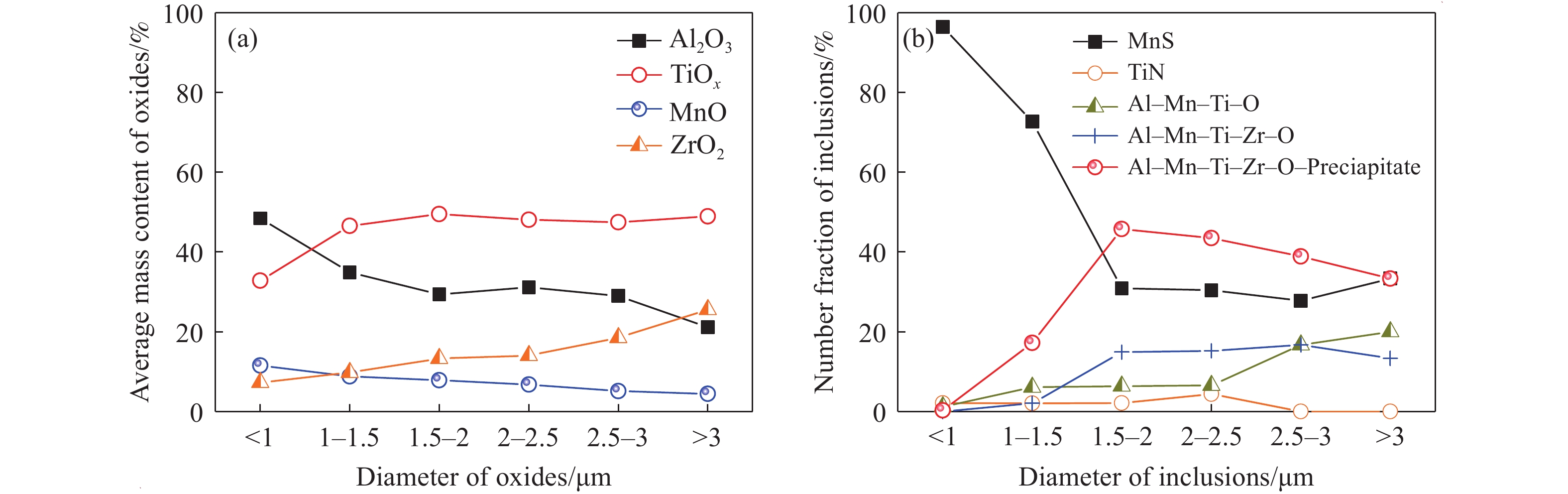

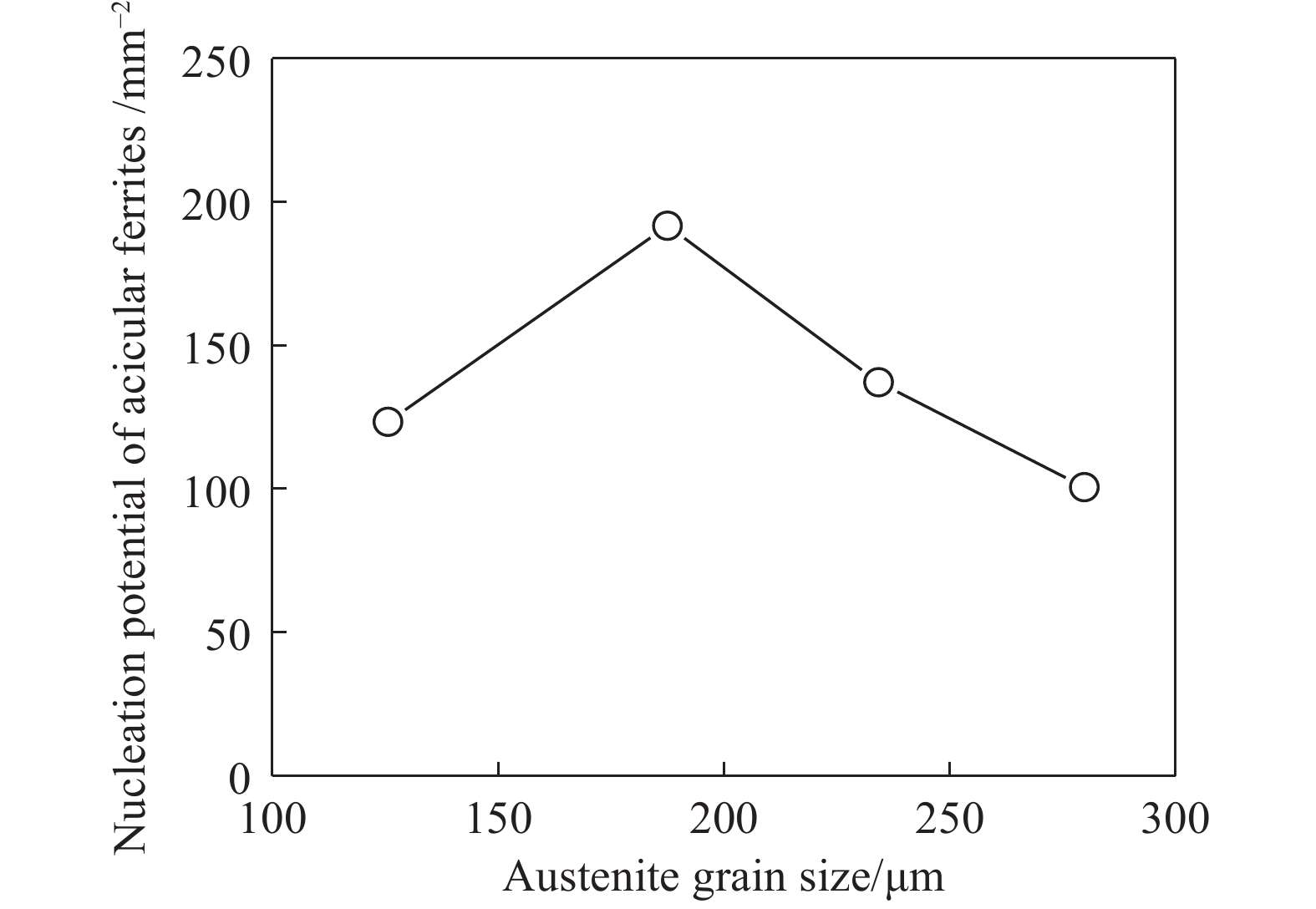

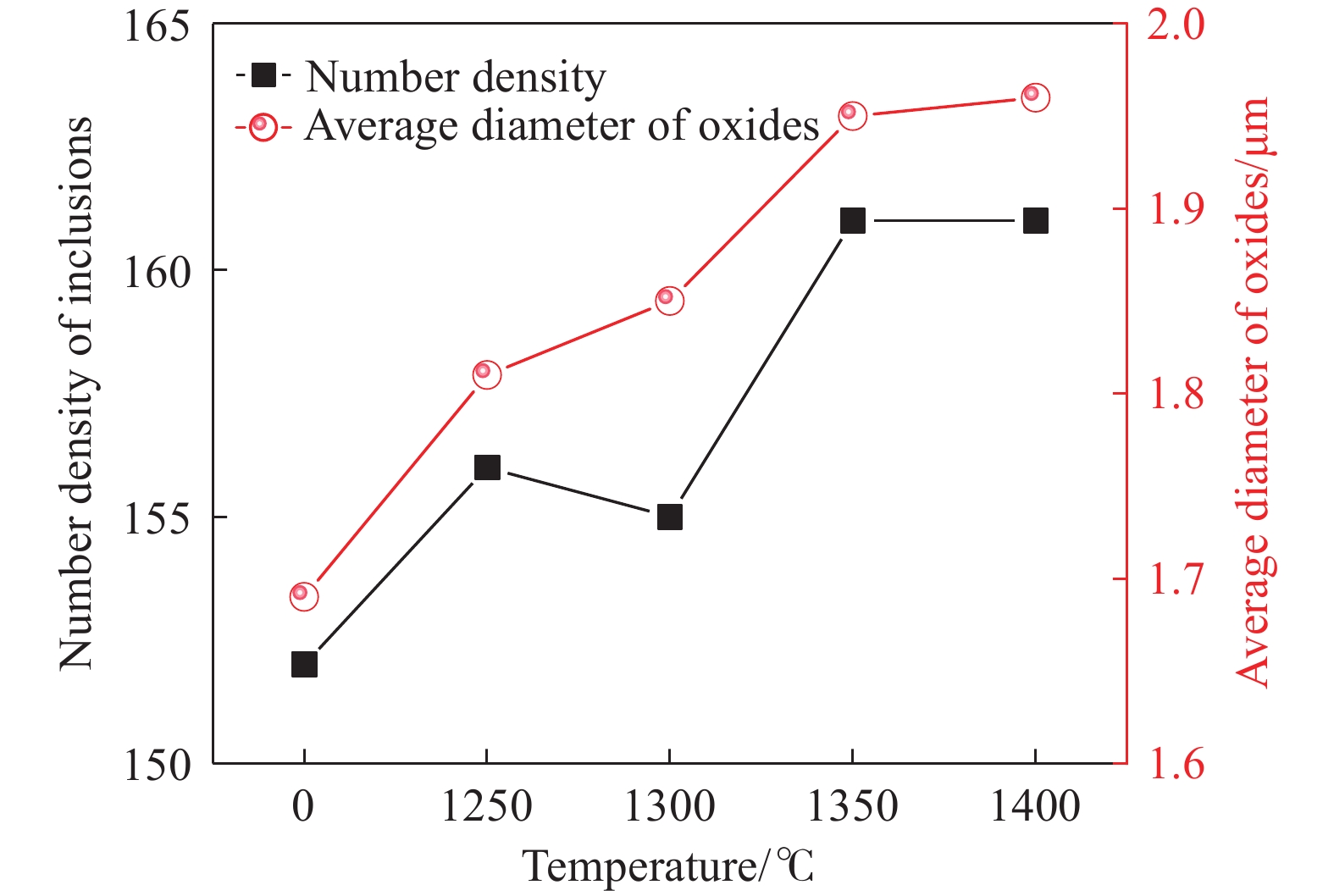

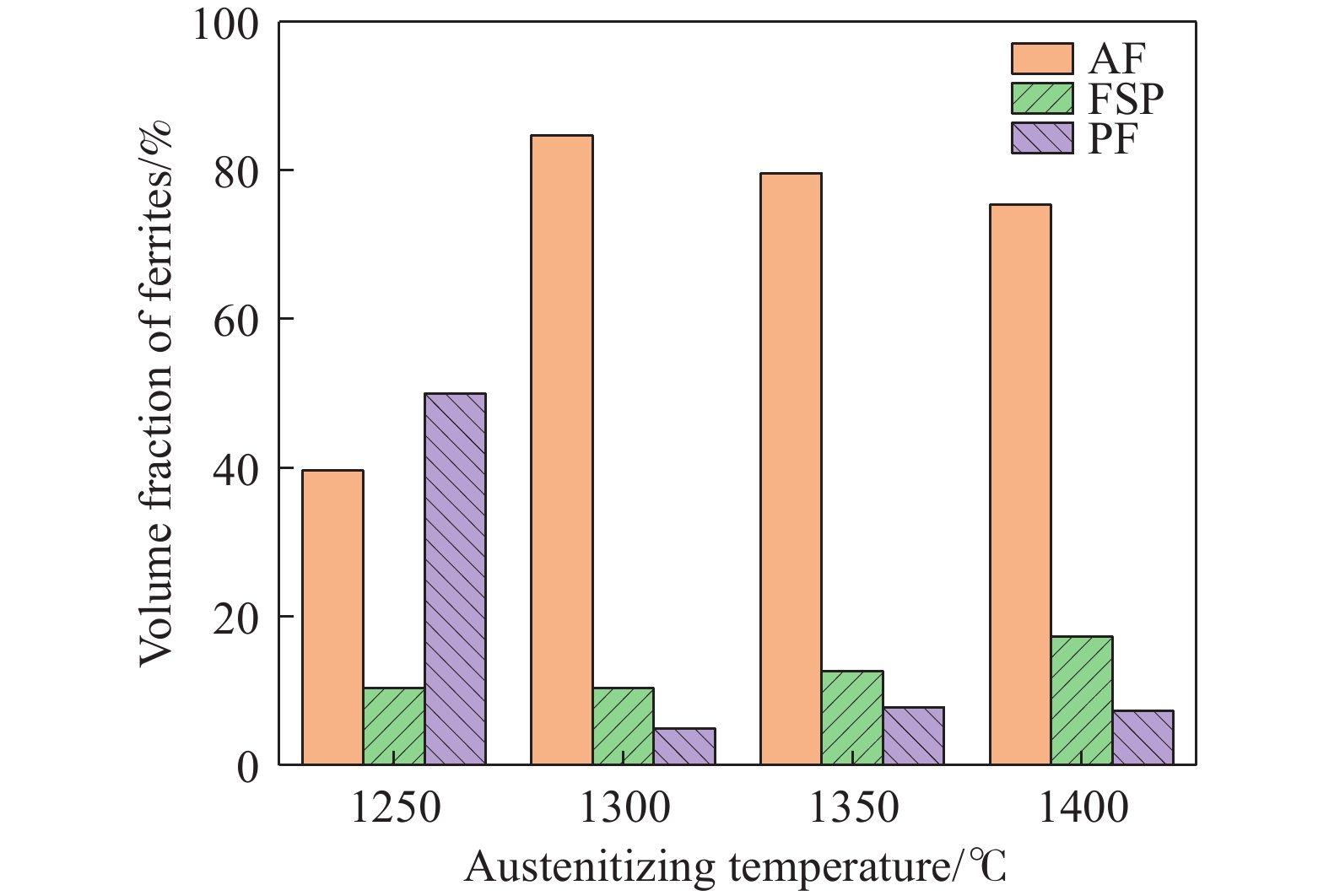

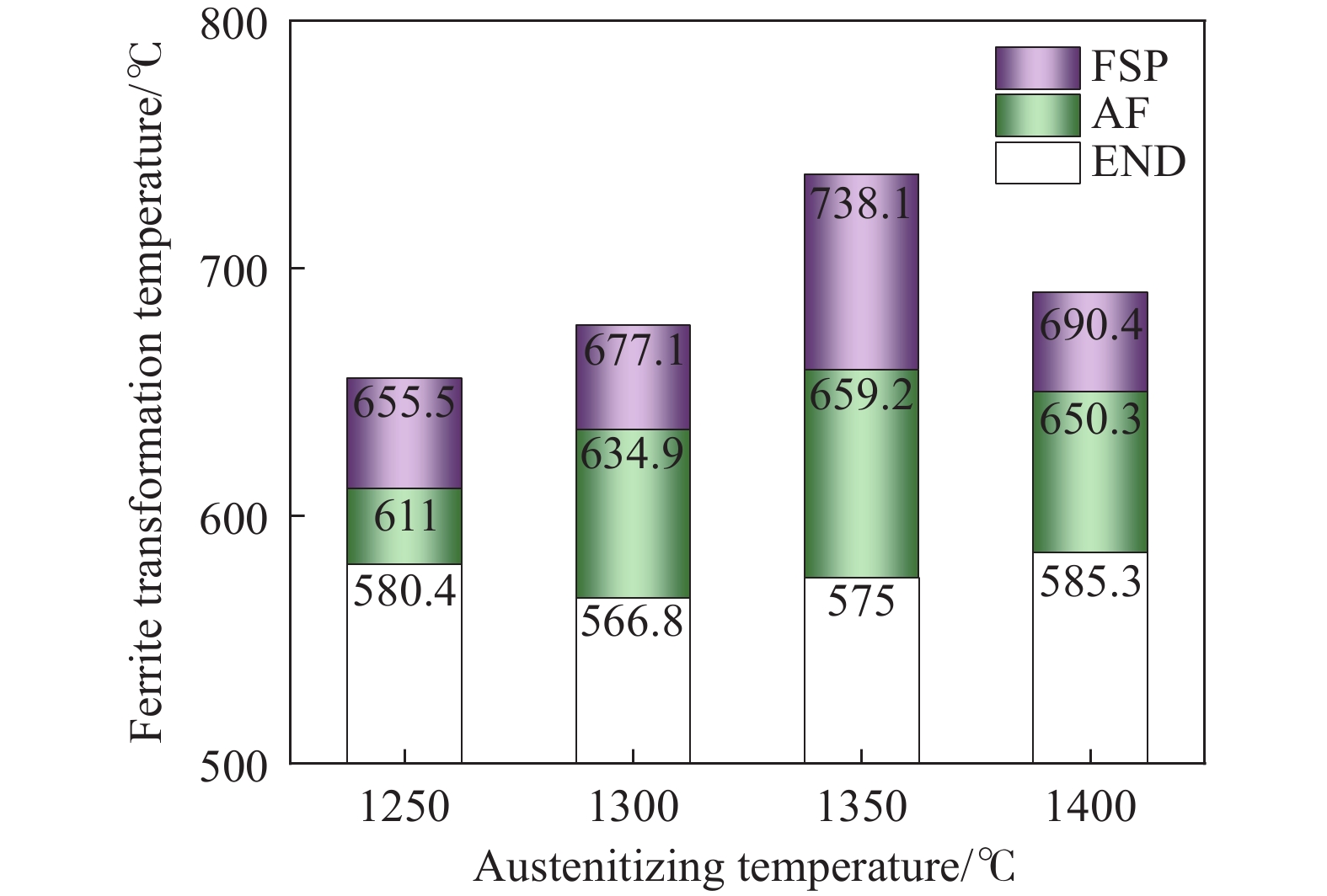

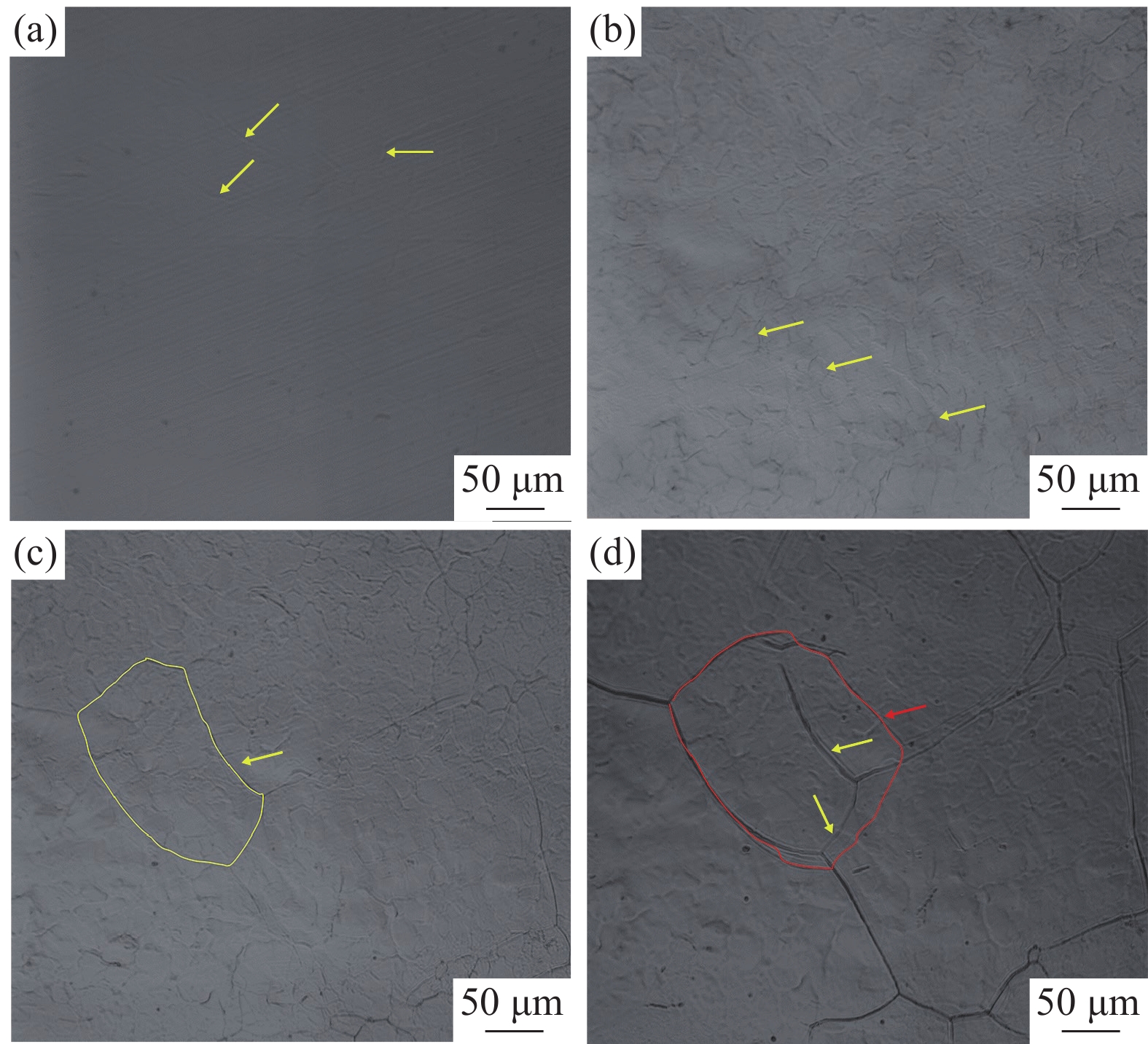

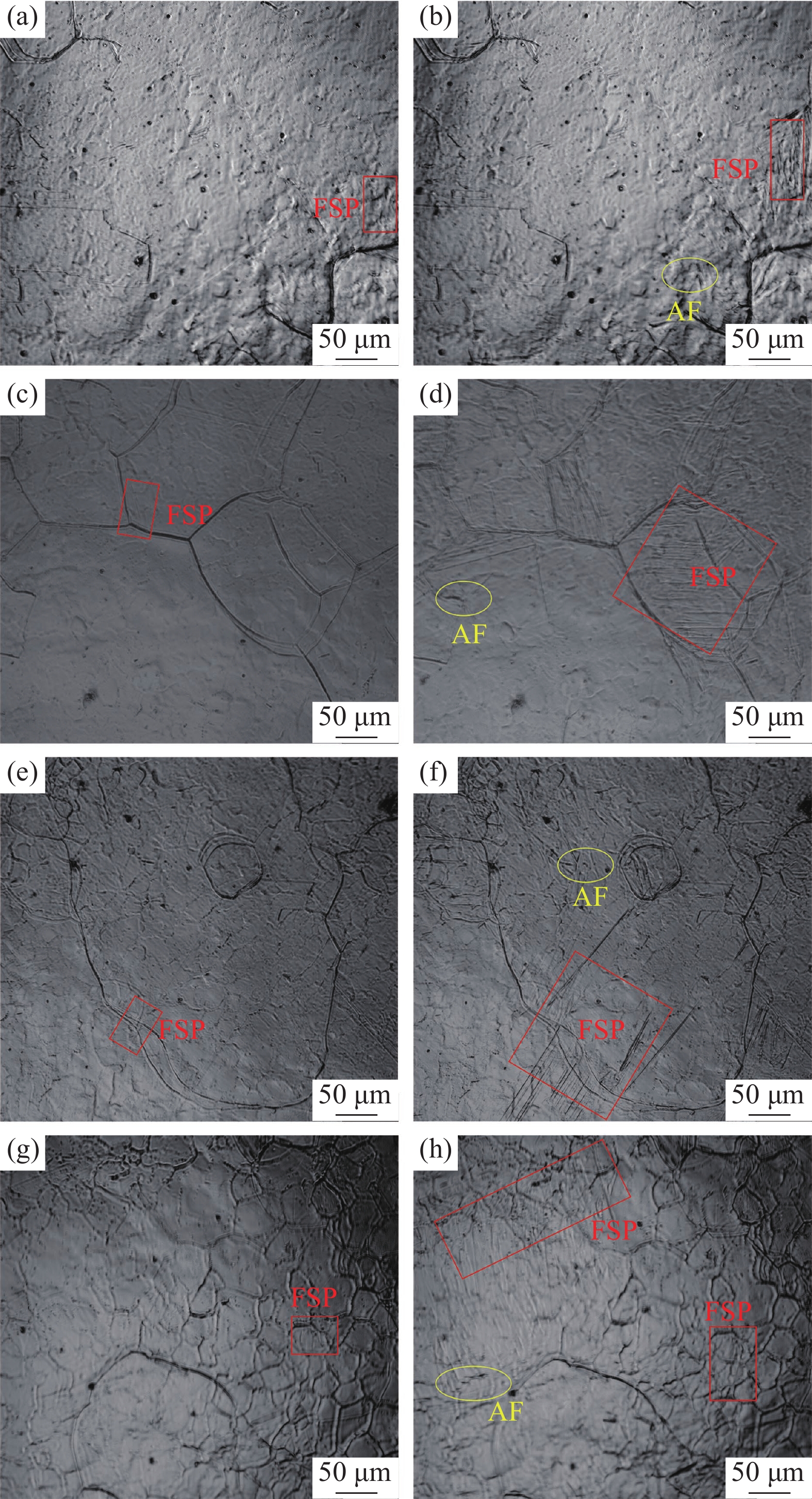

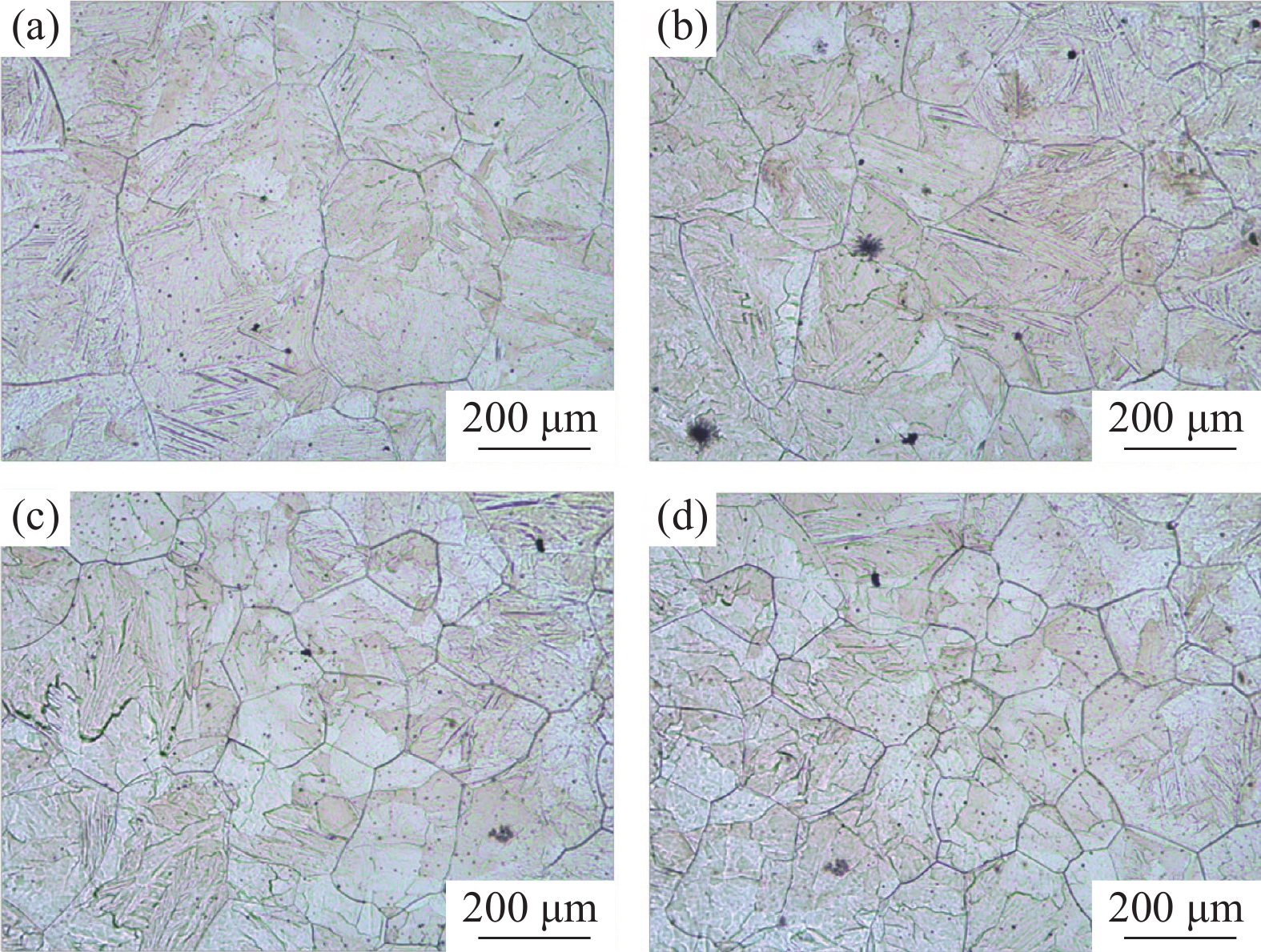

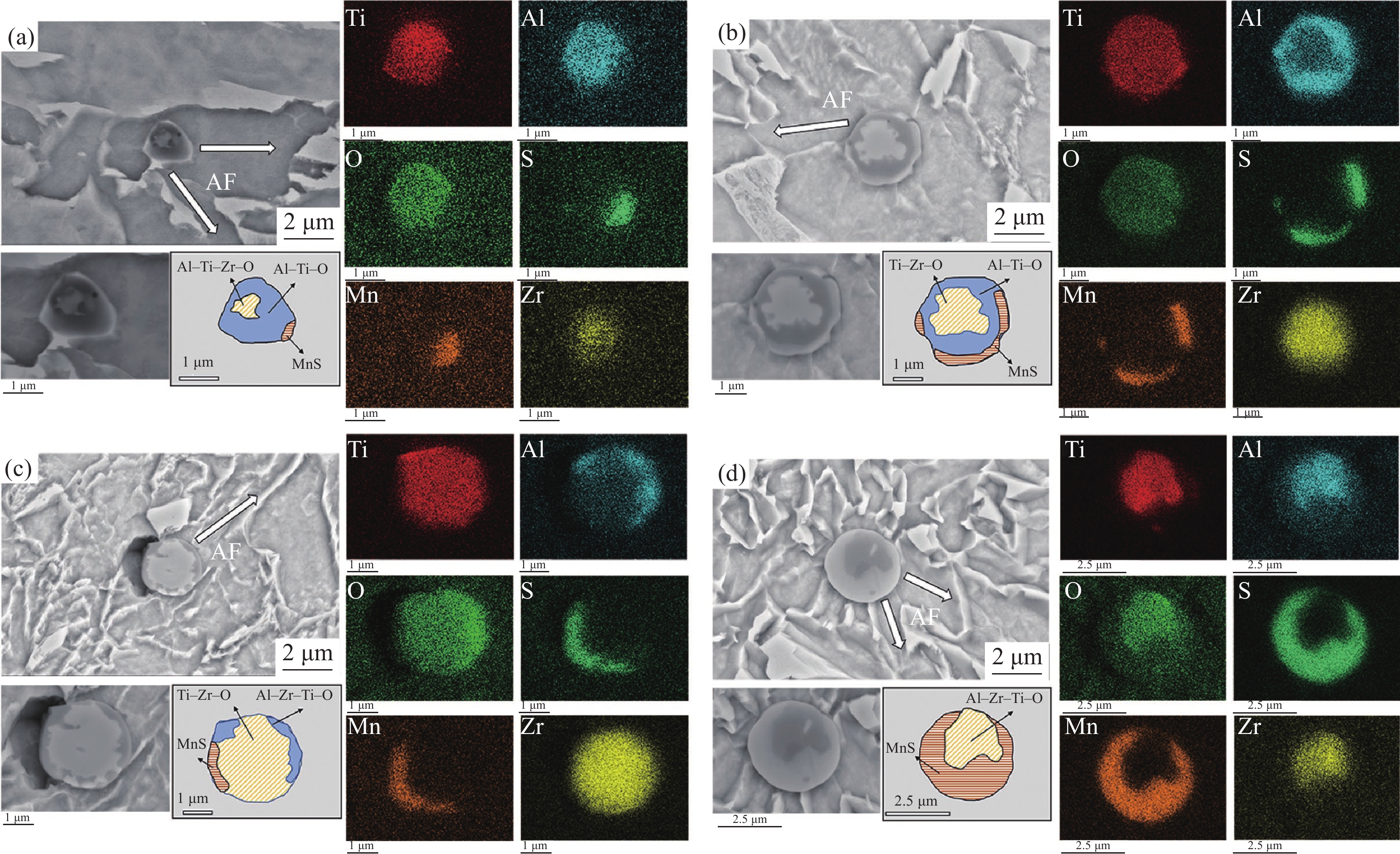

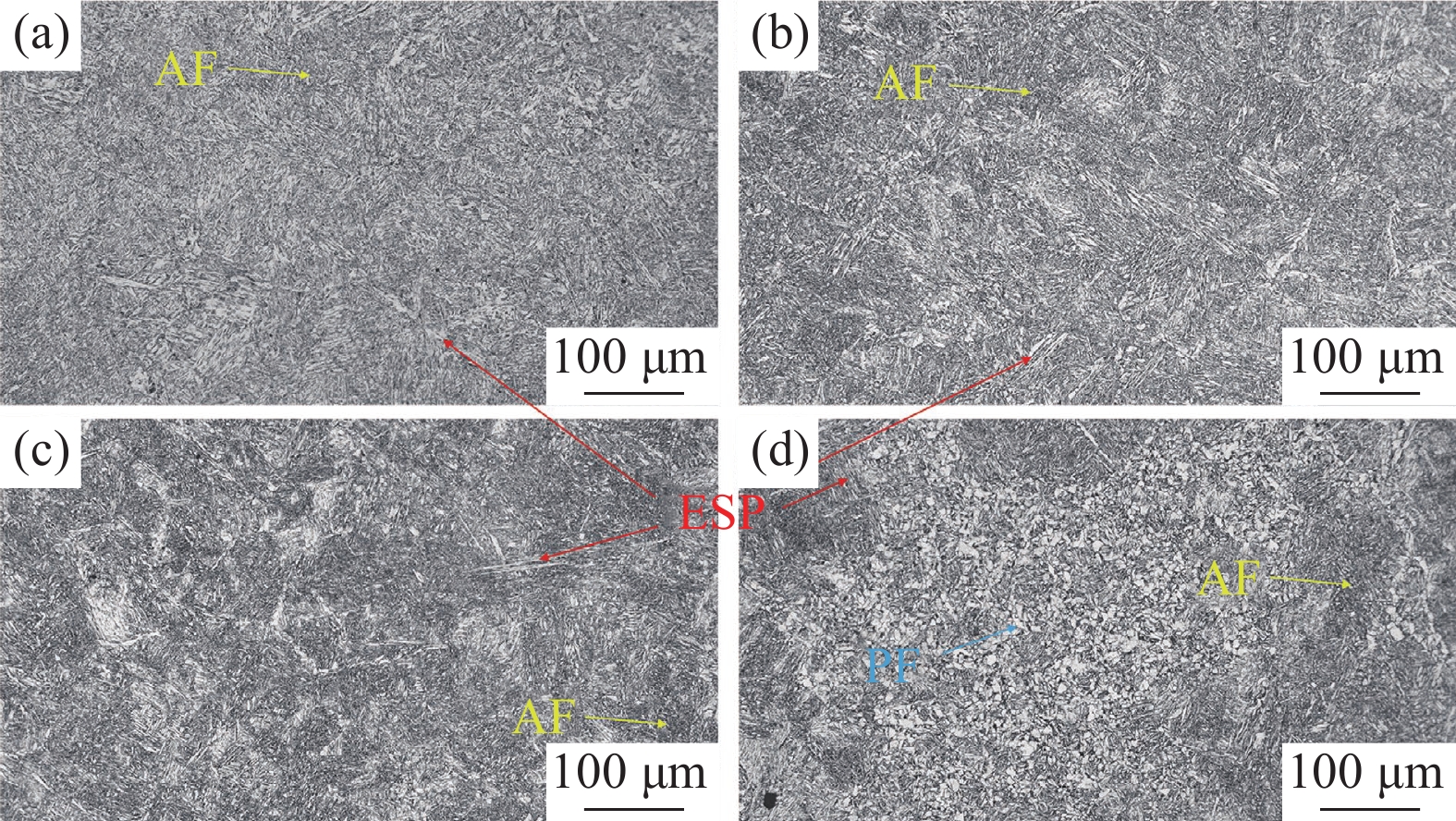

The composite oxides of Ti and Zr can effectively induce acicular ferrite nucleation and refine austenite grain size. To study the transformation mechanism of acicular ferrite in Ti–Zr treated steel, the mass fraction of 0.038% titanium and 0.008% zirconium were added to low alloy steel by melting in a 25 kg vacuum induction furnace. The effect of austenitizing temperature on acicular ferrite transformation behavior was observed in-situ using a high-temperature laser confocal microscope: the samples were heated to 1250, 1300, 1350, and 1400 ℃ at a heating rate of 5 ℃·s^?1 and then cooled to 400 ℃ at a cooling rate of 3 ℃·s^?1 after holding for 300 s. The ferrite transformation behavior of samples during the above process was observed using a high-temperature confocal microscope. The inclusion composition of Ti–Zr treated steel and the nucleation of acicular ferrite on the inclusion surface were observed using a scanning electron microscope. The variation in microstructure at different austenitizing temperatures was observed using an optical microscope. The austenite grain size was found to increase from 125.6 to 279.8 μm with increasing austenitizing temperature from 1250 to 1400 ℃. The initial transformation temperature of acicular ferrite and side-plate ferrite increased, reached a maximum at 1350 ℃, and then decreased. The volume fraction of acicular ferrite increased from 39.6% to 83.6%. In Ti–Zr treated steel, the size of complex inclusion with Zr–Ti–O in core and Al–Ti–Zr–O in exterior and MnS precipitated on the surface was mainly concentrated in 1–3 μm. It could effectively promote acicular ferrite nucleation. The Mn-poor region and the good lattice relationship between complex inclusions and ferrite were the mechanisms by which the type of inclusions in the steel could promote acicular ferrite nucleation. Using classical nucleation theory, the nucleation potential of acicular ferrite under different conditions was calculated. The results showed that when the austenitizing temperature was 1300 ℃, the nucleation potential of acicular ferrite was the strongest, reaching 191.7 mm^?2. The calculation results were consistent with the variated law of acicular ferrite volume fraction. An increase in austenite grain size led to a decrease in polygonal ferrite nucleation sites, an increase in acicular ferrite nucleation space, and the formation of many inclusions that effectively induced nucleation of acicular ferrite treated by titanium and zirconium, which increased the acicular ferrite volume fraction.
- Ti–Zr treated steel,
- austenite grain size,
- acicular ferrite,
- in-situ observation,
- transformation temperature,
- inclusions

FullText(HTML)

References(26)

References

[1]	Jian Y, Kai Z, Division W G M P, et al. Progress in the technological development of oxide metallurgy for manufacturing steel plates with excellent HAZ toughness. Baosteel Tech Res, 2008, 2(4): 43
[2]	張立峰. 關于鋼潔凈度指數的討論. 煉鋼, 2019, 35(3):1 Zhang L F. Discussion on the index of steel cleanliness. Steelmaking, 2019, 35(3): 1
[3]	王學敏, 舒瑋, 鄭超超, 等. 低碳微合金鋼中Ti_xO–MnS型復合夾雜對焊接熱影響區微觀組織相變的影響. 北京科技大學學報, 2011, 33(8):958 Wang X M, Shu W, Zheng C C, et al. Effects of Ti_xO–MnS complex inclusions on the microstructure phase transformation of heat affected zone in the welding of low carbon microalloyed steels. J Univ Sci Technol Beijing, 2011, 33(8): 958
[4]	孫立根, 雷鳴, 張鑫, 等. 鎂處理對船體鋼組織細化作用的高溫原位分析. 鋼鐵, 2020, 55(5):94 doi: 10.13228/j.boyuan.issn0449-749x.20190392 Sun L G, Lei M, Zhang X, et al. In-situ research on microstructure refining effect of Mg treatment for shipbuilding steel at high temperature. Iron Steel, 2020, 55(5): 94 doi: 10.13228/j.boyuan.issn0449-749x.20190392
[5]	徐龍云, 楊健, 王睿之. Mg脫氧夾雜物對大線能量焊接HAZ組織的影響. 工程科學學報, 2020, 42(增刊 1):9 Xu L Y, Yang J, Wang R Z. Influence of inclusions with Mg deoxidation on the microstructure in the heat-affected zone of steel plates after high-heat-input welding. Chin J Eng, 2020, 42(Suppl 1): 9
[6]	Liu Y, Li G Q, Wan X L, et al. Toughness improvement by Zr addition in the simulated coarse-grained heat-affected zone of high-strength low-alloy steels. Ironmak Steelmak, 2019, 46(2): 113 doi: 10.1080/03019233.2017.1353763
[7]	Bizyukov P V, Giese S R. Effects of Zr, Ti, and Al additions on nonmetallic inclusions and impact toughness of cast low-alloy steel. J Mater Eng and Perform, 2017, 26(4): 1878 doi: 10.1007/s11665-017-2583-0
[8]	Li X B, Min Y, Liu C J, et al. Study on the formation of intragranular acicular ferrite in a Zr–Mg–Al deoxidized low carbon steel. Steel Res Int, 2016, 87(5): 622 doi: 10.1002/srin.201500167
[9]	Mabuchi H, Uemori R, Fujioka M. The role of Mn depletion in intra-granular ferrite transformation in the heat affected zone of welded joints with large heat input in structural steels. ISIJ Int, 1996, 36(11): 1406 doi: 10.2355/isijinternational.36.1406
[10]	Li X B, Min Y, Yu Z, et al. Effect of Mg addition on nucleation of intra-granular acicular ferrite in Al-killed low carbon steel. J Iron Steel Res Int, 2016, 23(5): 415 doi: 10.1016/S1006-706X(16)30066-8
[11]	Pu J, Yu S F, Li Y Y. Effects of Zr–Ti on the microstructure and properties of flux aided backing submerged arc weld metals. J Alloys Compd, 2017, 692: 351 doi: 10.1016/j.jallcom.2016.09.045
[12]	Lou H, Wang C, Wang B, et al. Inclusion evolution behavior of Ti–Mg oxide metallurgy steel and its effect on a hgh heat input welding HAZ. Metals, 2018, 8(7): 534 doi: 10.3390/met8070534
[13]	姚浩, 任強, 張立峰. 低合金高強鋼中針狀鐵素體控制的綜述. 煉鋼, 2022, 38(2):1 doi: 10.3969/j.issn.1002-1043.2022.2.lg202202002 Yao H, Ren Q, Zhang L F. Review on the control of the acicular ferrite in high strength low alloy steels. Steelmaking, 2022, 38(2): 1 doi: 10.3969/j.issn.1002-1043.2022.2.lg202202002
[14]	姚浩, 張立峰, 任強, 等. 冷卻速率對Ti–Zr處理鋼針狀鐵素體轉變的影響. 鋼鐵, 2021, 56(11):96 Yao H, Zhang L F, Ren Q, et al. Effect of cooling rates on transformation of acicular ferrite in a Ti–Zr treated steel. Iron &Steel, 2021, 56(11): 96
[15]	Song Z H, Song H Y, Liu H T. Effect of cooling route on microstructure and mechanical properties of twin-roll casting low carbon steels with an application of oxide metallurgy technology. Mater Sci Eng A, 2021, 800: 140282 doi: 10.1016/j.msea.2020.140282
[16]	Wang X, Chen Y, Wang C, et al. Effect of heat input on microstructure and impact toughness of coarse-grained heat-affected zone in Al–Ca and Ti–Ca killed steels. Steel Res Int, 2020, 91(9): 2000133 doi: 10.1002/srin.202000133
[17]	Zhao H T, Palmiere E J. Effect of austenite grain size on acicular ferrite transformation in a HSLA steel. Mater Charact, 2018, 145: 479 doi: 10.1016/j.matchar.2018.09.013
[18]	Thewlis G. Effect of cerium sulphide particle dispersions on acicular ferrite microstructure development in steels. Mater Sci Technol, 2006, 22(2): 153 doi: 10.1179/026708306X81432
[19]	Zhang D, Shintaku Y, Suzuki S, et al. In situ observation of phase transformation in low-carbon, boron-treated steels. Metall Mater Trans A, 2012, 43(2): 447 doi: 10.1007/s11661-011-0892-8
[20]	Chai F, Yang C F, Su H, et al. Effect of Zr addition to Ti-killed steel on inclusion formation and microstructural evolution in welding induced coarse-grained heat affected zone. Acta Metall Sin, 2008, 21(3): 220 doi: 10.1016/S1006-7191(08)60042-3
[21]	Wang X, Wang C, Kang J, et al. An in situ microscopy study on nucleation and growth of acicular ferrite in Ti–Ca–Zr deoxidized low-carbon steel. Mater Charact, 2020, 165: 110381 doi: 10.1016/j.matchar.2020.110381
[22]	Lee J L. Evaluation of the nucleation potential of intragranular acicular ferrite in steel weldments. Acta Metall Mater, 1994, 42(10): 3291 doi: 10.1016/0956-7151(94)90461-8
[23]	Thewlis G. Transformation kinetics of ferrous weld metals. Mater Sci Technol, 1994, 10(2): 110 doi: 10.1179/mst.1994.10.2.110
[24]	Yao H, Ren Q, Yang W, et al. In situ observation and prediction of the transformation of acicular ferrites in Ti-containing HLSA steel. Metall Mater Trans B, 2022, 53(3): 1827 doi: 10.1007/s11663-022-02492-8
[25]	Yao H, Zhang L F, Ren Q. Influence of inclusions on the nucleation of acicular ferrites in a Ti–Zr–bearing steel. Steel Res Int, 2022, 93(2): 2100468 doi: 10.1002/srin.202100468
[26]	Lee T K, Kim H J, Kang B Y, et al. Effect of inclusion size on the nucleation of acicular ferrite in welds. ISIJ Int, 2000, 40(12): 1260 doi: 10.2355/isijinternational.40.1260
