Preparation and flotation performance of thionocarbamates

MA Xin; CAO Zhan-fang; WANG Shuai; HUANG Xiao-ping; ZHONG Hong

doi:10.13374/j.issn2095-9389.2022.04.30.003

Volume 45 Issue 8

Aug. 2023

Turn off MathJax

Article Contents

Article Navigation > Chinese Journal of Engineering > 2023 > 45(8): 1254-1263

MA Xin, CAO Zhan-fang, WANG Shuai, HUANG Xiao-ping, ZHONG Hong. Preparation and flotation performance of thionocarbamates[J]. Chinese Journal of Engineering, 2023, 45(8): 1254-1263. doi: 10.13374/j.issn2095-9389.2022.04.30.003

Citation:

MA Xin, CAO Zhan-fang, WANG Shuai, HUANG Xiao-ping, ZHONG Hong. Preparation and flotation performance of thionocarbamates[J]. Chinese Journal of Engineering, 2023, 45(8): 1254-1263. doi: 10.13374/j.issn2095-9389.2022.04.30.003

Citation:

PDF( 1712 KB)

Preparation and flotation performance of thionocarbamates

doi: 10.13374/j.issn2095-9389.2022.04.30.003

MA Xin^{1, 2},
CAO Zhan-fang^{1, 2},
WANG Shuai^{1, 2},
HUANG Xiao-ping^{1, 2},
ZHONG Hong^{1, 2
,
,}

1.
College of Chemistry and Chemical Engineering, Central South University, Changsha 410083, China
2.
Hunan Provincial Key Laboratory of Efficient and Clean Utilization of Manganese Resources, Changsha 410083, China

More Information

Corresponding author: E-mail: zhongh@csu.edu.cn
Received Date: 2022-04-30
Available Online: 2022-10-10
Publish Date: 2023-08-25

Abstract

Abstract

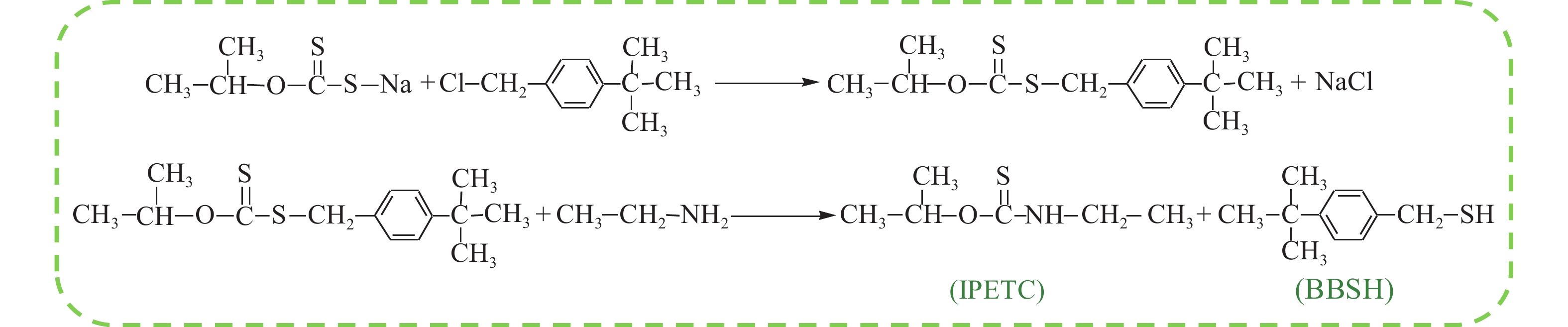

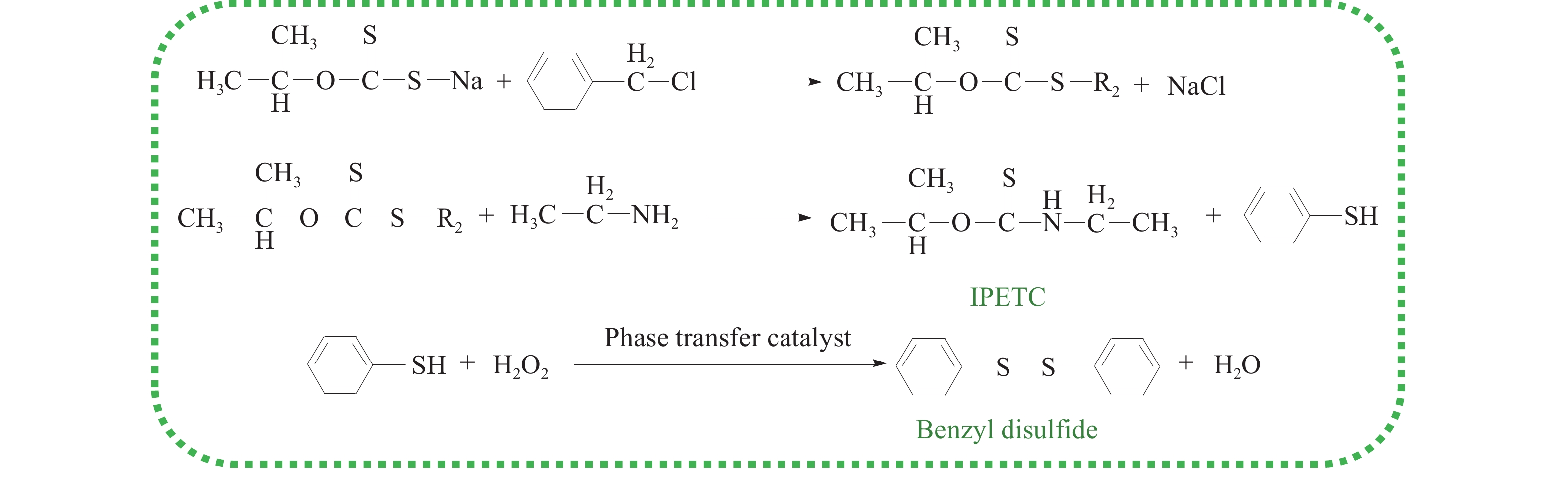

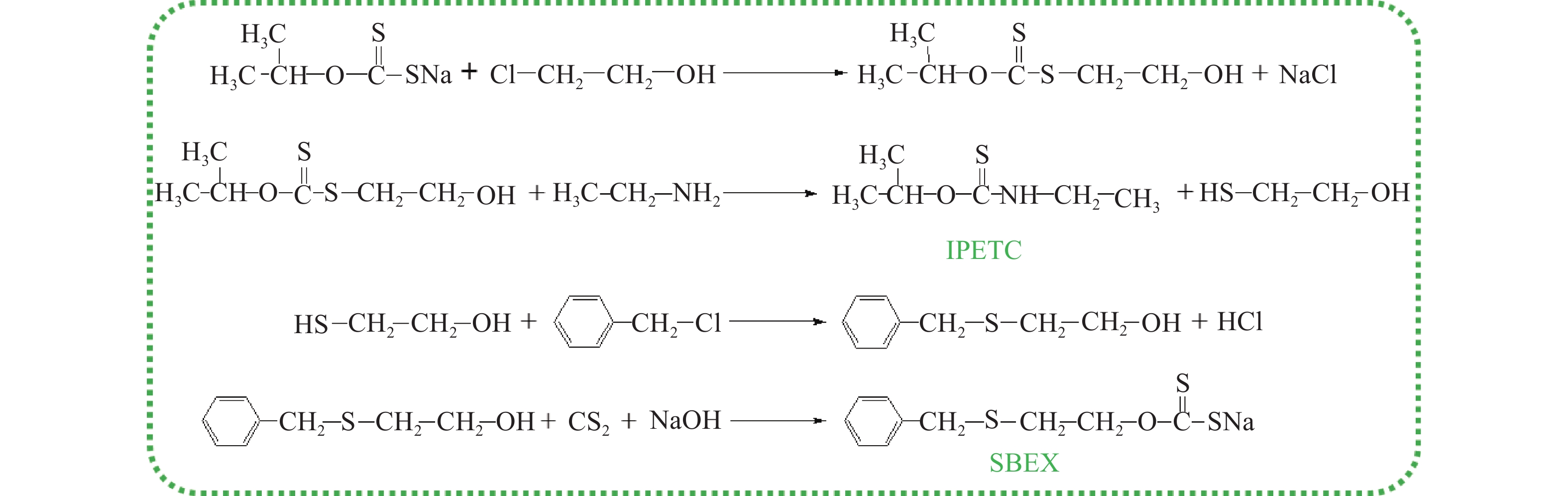

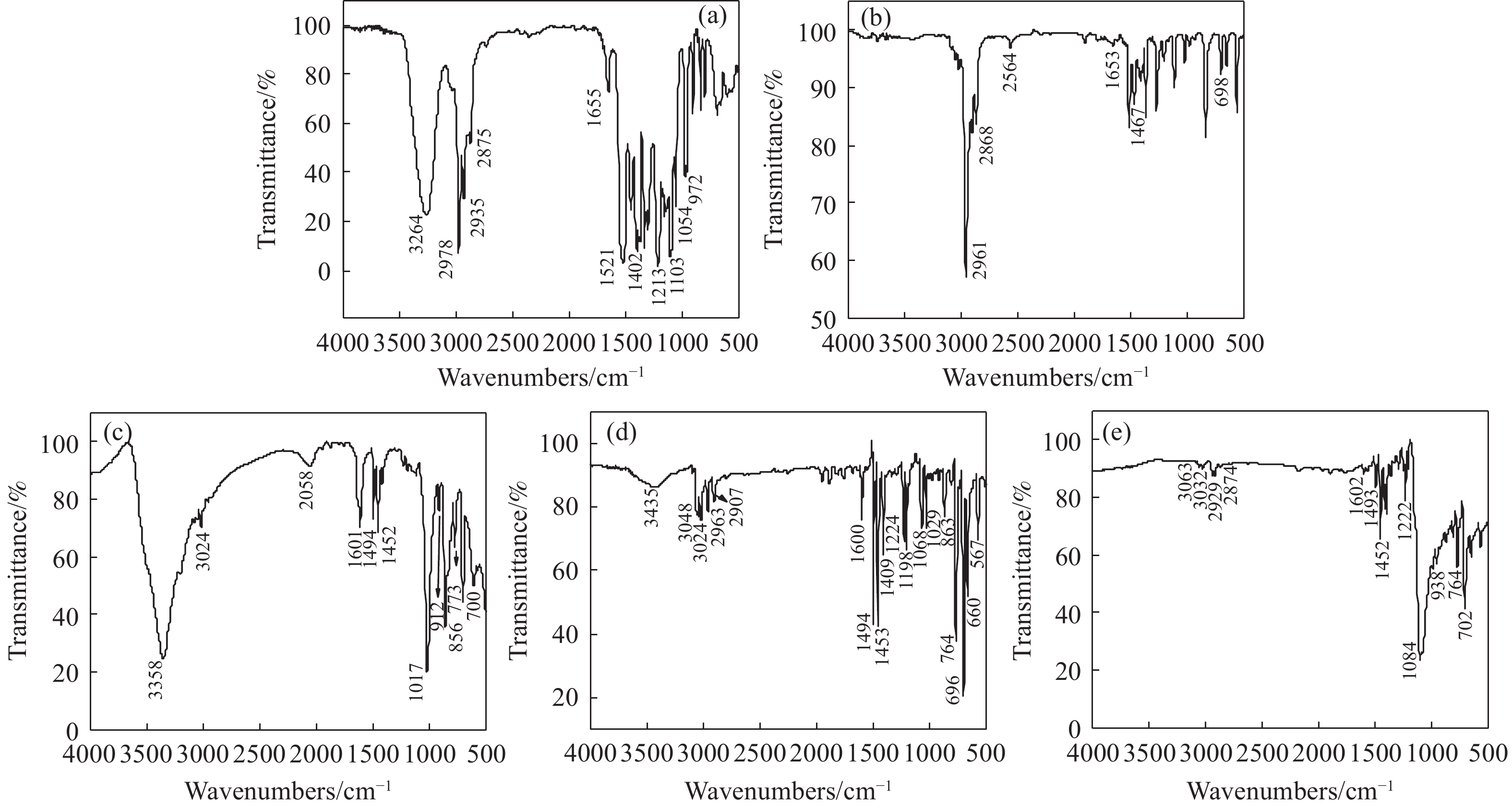

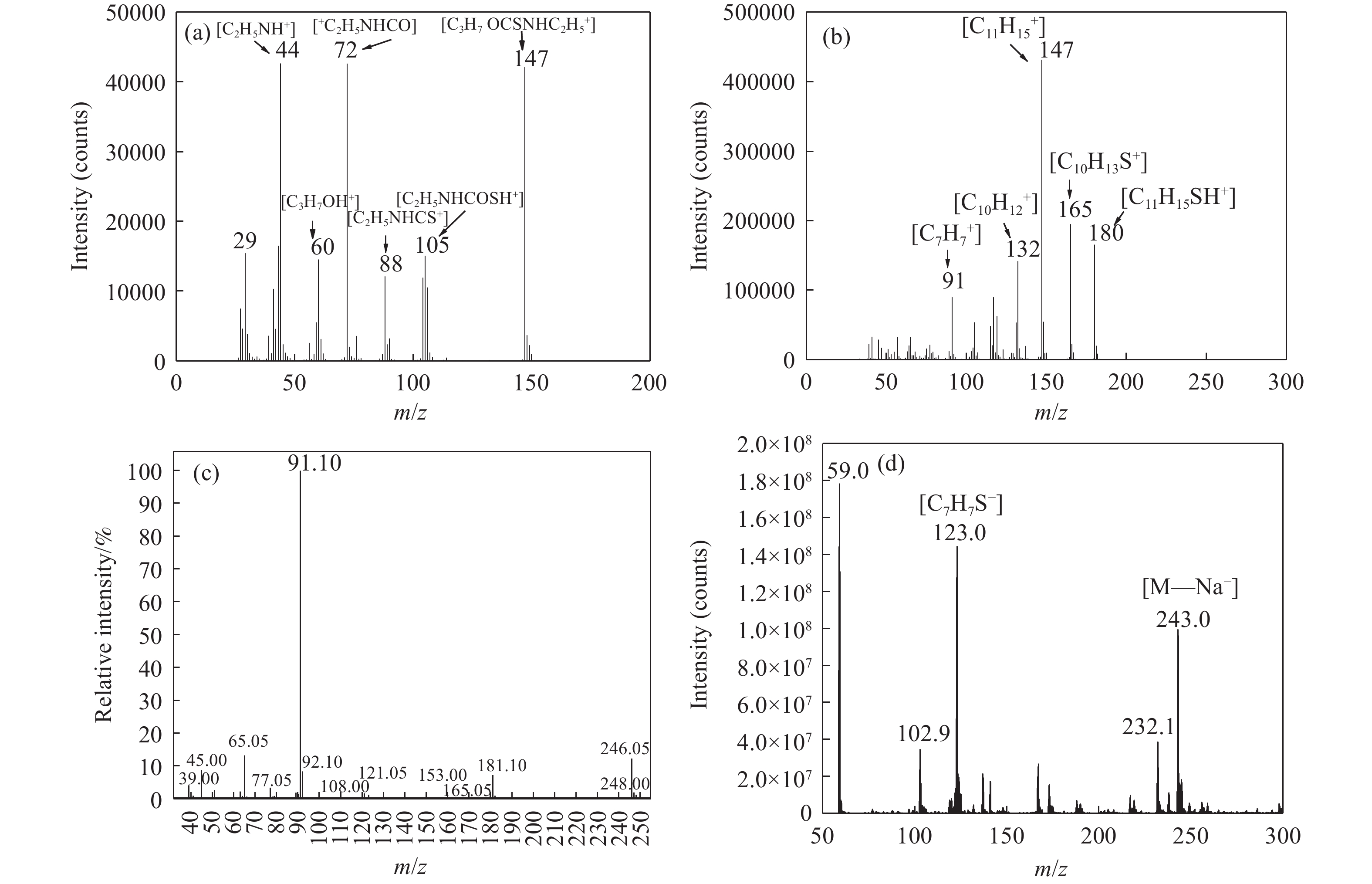

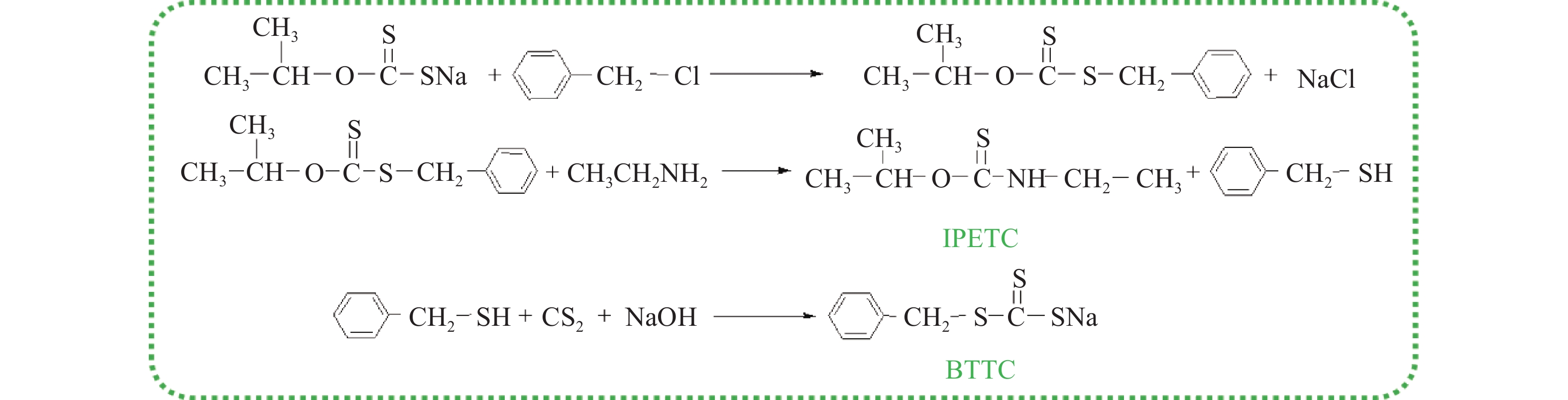

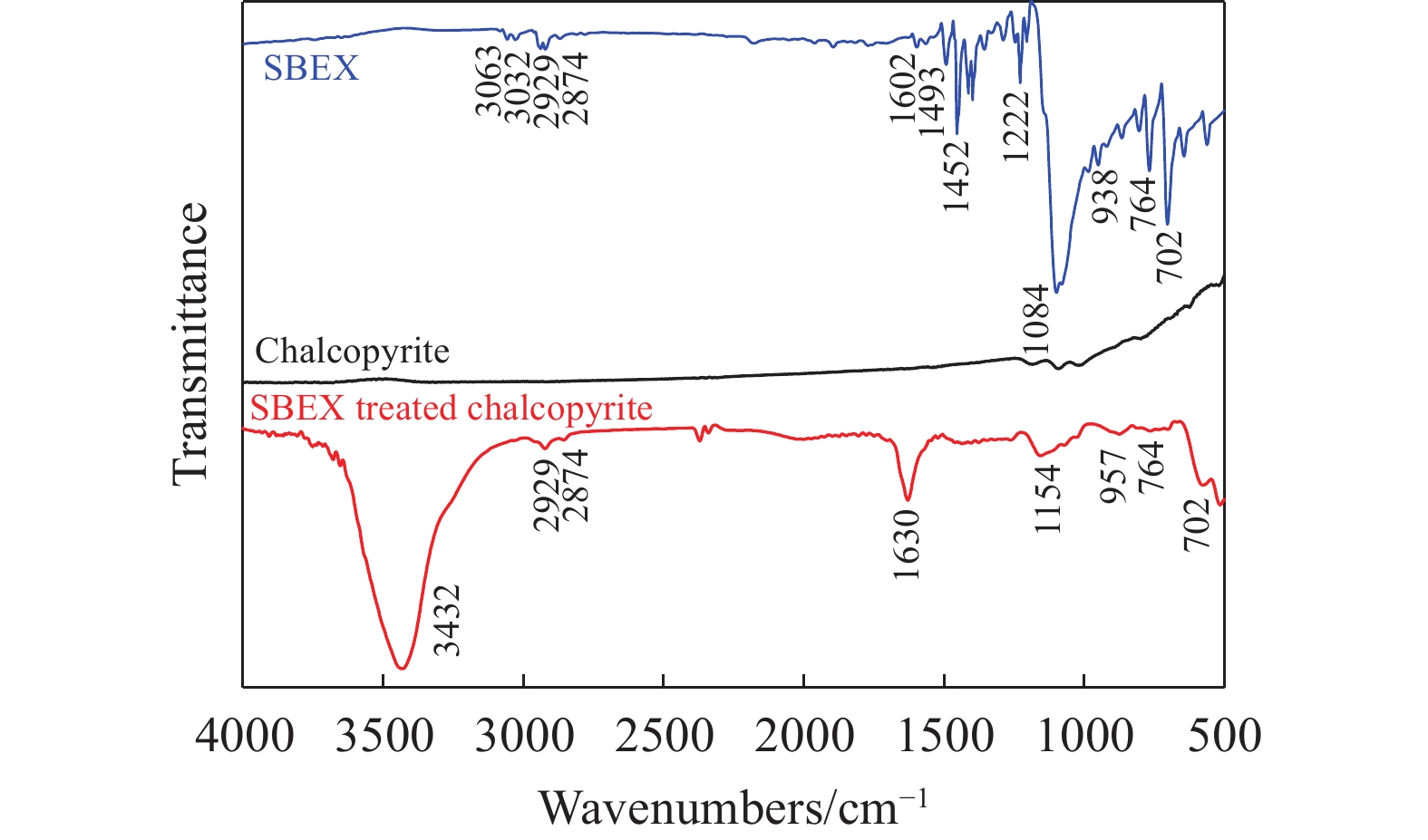

To address the problems of byproduct treatment and pollution in thionocarbamate preparation, four novel processes for preparing O-isopropyl-N-ethyl thionocarbamate (IPETC) were designed, which can coproduce 4-(tert-butyl)benzyl mercaptan (BBSH), sodium benzyl trithiocarbonate (BTTC), sodium O-benzylthioethyl xanthate (SBEX), and benzyl disulfide, respectively. All the products were confirmed via FTIR and mass spectrometry. The composite collector (IPETC and BBSH mass contents were 51% and 41%, respectively) was synthesized via one-pot reaction of sodium isopropyl xanthate, 4-tert-butylbenzylchloride, and ethylamine using tert-butyl alcohol as solvent. The yield of IPETC and BBSH was 95% in the process of coproducing IPETC and BBSH. Specifically, BTTC and IPETC were synthesized via a reaction of sodium isopropyl xanthate, benzyl chloride, ethylamine, carbon disulfide, and sodium hydroxide. The IPETC and BTTC yields were 94% and 95% with a purity of 91% and 82% in the process of coproducing IPETC and BTTC, respectively. Meanwhile, SBEX and IPETC were synthesized via reaction of sodium isopropyl xanthate, 2-chloroethanol, ethylamine, benzyl chloride, carbon disulfide, and sodium hydroxide. The IPETC and SBEX yields were 89% and 93% with a purity of 95% and 91% in the process of coproducing IPETC and SBEX, respectively. Benzyl disulfide and IPETC were synthesized via a reaction of sodium isopropyl xanthate, benzyl chloride, ethylamine, and hydrogen peroxide. The IPETC and benzyl disulfide yields were 93% and 95% with a purity of 92% and 94% in the processof coproducing IPETC and benzyl disulfide, respectively. The flotation response of copper-molybdenum ore independent with IPETC and BBSH collectors and with their mixture was assessed. The flotation results indicate that the composite collector displays a superior collecting capability for copper sulfide ore. Further, the combination of IPETC and BBSH could give rise to a synergistic effect, significantly enhancing the overall flotation performance. The flotation performance of SBEX and BTTC on chalcopyrite and pyrite was also investigated. The flotation results indicate that SBEX and BTTC exhibited better collecting performance than sodium isobutyl xanthate (SIBX), which can replace SIBX for the flotation separation of copper sulfide. FTIR spectra and X-ray photoelectron spectroscopy analyses were conducted. The results indicate that when all three sulfur atoms in BTTC bond to the mineral surface, the hydrophobicity increases when compared to xanthates, wherein oxygen does not bond to the surface. Further, the thioether structure can increase the hydrophobicity of SBEX on the chalcopyrite surface, and SBEX features a higher collecting recovery toward chalcopyrite than SIBX. The results indicate that BTTC and SBEX might bond with copper atoms on the chalcopyrite surface through their sulfur atoms to form BTTC-Cu and SBEX-Cu surface complexes.
- flotation,
- thionocarbamates,
- trithiocarbonates,
- mercaptans,
- disulfides,
- collector

FullText(HTML)

References(31)

References

[1]	Bu Y J, Hu Y H, Sun W, et al. Fundamental flotation behaviors of chalcopyrite and galena using O-isopropyl-N-ethyl thionocarbamate as a collector. Minerals, 2018, 8(3): 115 doi: 10.3390/min8030115
[2]	Fischback B C, Harris G H. Process for the Manufacture of Dialkyl Thionocarbamates: US Patent, 2691635. 1954-10-12
[3]	Hamm P C. Destroying Vegetation with Haloalkenyl Disubstituted Thionocarbamates: US Patent, 3224864. 1965-12-21
[4]	Bishop M D, Gray L A. Catalytic Synthesis of Thionocarbamates from Xanthates and Amines: US Patent, 5041599. 1991-08-20
[5]	戴洪義, 王美君. 乙硫氨酯制備的新工藝: 中國專利, 96110154. 1998-01-14 Dai H Y, Wang M J. Process of Preparing Ethyl Ammonia Sulfate: China Patent, 96110154. 1998-01-14
[6]	Lewellyn M E. Process for the Preparation of N-Allyl-O-Alkyl Thionocarbamates: US Patent, 4482500. 1984-11-13
[7]	欒和林, 姚文, 武榮成. 一種硫代胺基甲酸酯類化合物的制備方法: 中國專利, 96106463. 1997-07-09 Luan H L, Yao W, Wu R C. Prepn of Thioamino-Formates Compounds: China Patent, 96106463. 1997-07-09
[8]	徐慶華. 從硫氨酯尾液中回收巰基乙酸萃取工藝的實驗研究. 山東化工, 2015, 44(12):10 Xu Q H. Experimental study on extraction process of recovery of thioglycolic acid from the sulfur ammonia ester solution. Shandong Chem Ind, 2015, 44(12): 10
[9]	萬盛輝, 劉廣義, 王德庭, 等. 銅抑制劑巰基乙酸的合成工藝. 銅業工程, 2006(4):68 Wan S H, Liu G Y, Wang D T, et al. Compounding process of thioglycolic acid using as depressant against copper sulfides. Copp Eng, 2006(4): 68
[10]	李華, 劉廣義. 硫代氨基甲酸酯制備新工藝研究. 精細化工中間體, 2022, 52(1):56 Li H, Liu G Y. A novel method for the preparation of thionocarbamate. Fine Chem Intermed, 2022, 52(1): 56
[11]	鐘宏, 馬鑫, 王帥, 等. 一種制備硫氨酯并聯產三硫代碳酸鹽的方法: 中國專利, 201610801951. 2017-02-08 Zhong H, Ma X, Wang S, et al. Method for Preparing Thionocarbamate and Trithiocarbonate: China Patent, 201610801951. 2017-02-08
[12]	鐘宏, 馬鑫, 王帥, 等. 一種制備硫氨酯并聯產二芐基二硫醚的方法: 中國專利, 201610801983. 2017-02-08 Zhong H, Ma X, Wang S, et al. Method for Producing Thionocarbamate and Dibenzyl Disulfide: China Patent, 201610801983. 2017-02-08
[13]	馬鑫, 王帥, 鐘宏. 芐基三硫代碳酸鈉的合成及其對黃銅礦的浮選性能. 中國有色金屬學報, 2018, 28(5):1067 Ma X, Wang S, Zhong H. Sodium benzyl trithiocarbonate synthesis and flotation performance to chalcopyrite. Chin J Nonferrous Met, 2018, 28(5): 1067
[14]	Huang X P, Jia Y, Wang S, et al. Novel sodium O-benzythioethyl xanthate surfactant: Synthesis, DFT calculation and adsorption mechanism on chalcopyrite surface. Langmuir, 2019, 35(47): 15106 doi: 10.1021/acs.langmuir.9b03118
[15]	鐘宏, 黃小平, 王帥, 等. 一種制備硫氨酯并聯產2-巰基乙醇或O-烷硫基乙基黃原酸鹽的方法: 中國專利, 201810519232. 2018-09-25 Zhong H, Huang X P, Wang S, et al. Method for Preparing Thionocarbamates and Co-producing 2-mercaptoethanol or O-alkylthioethyl Xanthogenate: China Patent, 201810519232. 2018-09-25
[16]	Xiao J J, Liu G Y, Zhong H. The adsorption mechanism of N-butoxypropyl-S-[2-(hydroxyimino) propyl] dithiocarbamate ester to copper minerals flotation. Int J Miner Process, 2017, 166: 53 doi: 10.1016/j.minpro.2017.07.003
[17]	Andrew F P, Ajibade P A. Synthesis, characterization and anticancer studies of bis-(N-methyl-1-phenyldithiocarbamato) Cu(II), Zn(II), and Pt(II) complexes: Single crystal X-ray structure of the copper complex. J Coord Chem, 2018, 71(16-18): 2776 doi: 10.1080/00958972.2018.1489537
[18]	Suyantara G P W, Hirajima T, Miki H, et al. Selective flotation of chalcopyrite and molybdenite using H₂O₂ oxidation method with the addition of ferrous sulfate. Miner Eng, 2018, 122: 312 doi: 10.1016/j.mineng.2018.02.005
[19]	Du M M, Zhang Y Q, Hussain I, et al. Effect of pyrite on enhancement of zero-valent iron corrosion for arsenic removal in water: A mechanistic study. Chemosphere, 2019, 233: 744 doi: 10.1016/j.chemosphere.2019.05.197
[20]	Makhlouf M M, Radwan A S, Ghazal B. Experimental and DFT insights into molecular structure and optical properties of new chalcones as promising photosensitizers towards solar cell applications. Appl Surf Sci, 2018, 452: 337 doi: 10.1016/j.apsusc.2018.05.007
[21]	Liu S, Xie L, Liu G Y, et al. Hetero-difunctional reagent with superior flotation performance to chalcopyrite and the associated surface interaction mechanism. Langmuir, 2019, 35(12): 4353 doi: 10.1021/acs.langmuir.9b00156
[22]	Yin Z G, Hu Y H, Sun W, et al. Adsorption mechanism of 4-amino-5-mercapto-1, 2, 4-triazole as flotation reagent on chalcopyrite. Langmuir, 2018, 34(13): 4071 doi: 10.1021/acs.langmuir.7b03975
[23]	Liu S, Zhong H, Liu G Y, et al. Cu(I)/Cu(II) mixed-valence surface complexes of S-[(2-hydroxyamino)-2-oxoethyl]-N, N-dibutyldithiocarbamate: Hydrophobic mechanism to malachite flotation. J Colloid Interface Sci, 2018, 512: 701 doi: 10.1016/j.jcis.2017.10.063
[24]	Deng T, Yu S, Lotter N O, et al. Laboratory testwork of mixed xanthates for the raglan ore // Proceedings of Canadian Mineral Processors. Ottawa, 2010, 1: 253
[25]	Liu G Y, Qiu Z H, Wang J Y, et al. Study of N-isopropoxypropyl-N’-ethoxycarbonyl thiourea adsorption on chalcopyrite using in situ SECM, ToF-SIMS and XPS. J Colloid Interface Sci, 2015, 437: 42 doi: 10.1016/j.jcis.2014.08.069
[26]	Smart R S C. Surface layers in base metal sulphide flotation. Miner Eng, 1991, 4(7-11): 891 doi: 10.1016/0892-6875(91)90072-4
[27]	McIntyre N S, Cook M G. X-ray photoelectron studies on some oxides and hydroxides of cobalt, nickel, and copper. Anal Chem, 1975, 47(13): 2208 doi: 10.1021/ac60363a034
[28]	Szargan R, Schaufu? A, Ro?bach P. XPS investigation of chemical states in monolayers: Recent progress in adsorbate redox chemistry on sulphides. J Electron Spectrosc Relat Phenom, 1999, 100(1-3): 357 doi: 10.1016/S0368-2048(99)00055-9
[29]	Beattie D A, Kempson I M, Fan L J, et al. Synchrotron XPS studies of collector adsorption and co-adsorption on gold and gold: Silver alloy surfaces. Int J Miner Process, 2009, 92(3-4): 162 doi: 10.1016/j.minpro.2009.03.009
[30]	Acres R G, Harmer S L, Beattie D A. Synchrotron XPS, NEXAFS, and ToF-SIMS studies of solution exposed chalcopyrite and heterogeneous chalcopyrite with pyrite. Miner Eng, 2010, 23(11-13): 928 doi: 10.1016/j.mineng.2010.03.007
[31]	Fairthorne G, Fornasiero D, Ralston J. Effect of oxidation on the collectorless flotation of chalcopyrite. Int J Miner Process, 1997, 49(1-2): 31 doi: 10.1016/S0301-7516(96)00039-7
