面向撲翼飛行機器人的飛行控制研究進展綜述

汪婷婷; 何修宇; 鄒堯; 付強; 賀威

doi:10.13374/j.issn2095-9389.2022.12.24.001

面向撲翼飛行機器人的飛行控制研究進展綜述

doi: 10.13374/j.issn2095-9389.2022.12.24.001

汪婷婷^{1, 2, 3},
何修宇^{1, 2, 3},
鄒堯^{1, 2, 3},
付強^{1, 2, 3},
賀威^{1, 2, 3, ,}

1.
北京科技大學智能科學與技術學院，北京 100083
2.
北京科技大學人工智能研究院，北京 100083
3.
北京科技大學智能仿生無人系統教育部重點實驗室，北京 100083

基金項目: 國家自然科學基金資助項目（62225304, 61933001）；北京市自然科學基金資助項目（JQ20026）；北京科技大學中央高校基本科研業務費專項資金資助項目（FRF-IDRY-21-030, FRF-TP-22-003C2）

詳細信息

通訊作者:
E-mail: weihe@ieee.org

中圖分類號: TP242.6
計量
- 文章訪問數: 288
- HTML全文瀏覽量: 63
- PDF下載量: 43
- 被引次數: 0
出版歷程
- 收稿日期: 2022-12-24
- 網絡出版日期: 2023-02-11
- 刊出日期: 2023-10-25

Research progress on the flight control of flapping-wing aerial vehicles

WANG Tingting^{1, 2, 3},
HE Xiuyu^{1, 2, 3},
ZOU Yao^{1, 2, 3},
FU Qiang^{1, 2, 3},
HE Wei^{1, 2, 3
, ,}

1.
School of Intelligence Science and Technology, University of Science and Technology Beijing, Beijing 100083, China
2.
Institute of Artificial Intelligence, University of Science and Technology Beijing, Beijing 100083, China
3.
Key Laboratory of Intelligent Bionic Unmanned Systems (Ministry of Education), University of Science and Technology Beijing, Beijing 100083, China

More Information

Corresponding author: E-mail: weihe@ieee.org

摘要

摘要: 近十年來，研究人員從飛行生物的飛行機理著手分析，對撲翼飛行機器人的姿態控制、位置控制設計以及系統穩定性分析展開了深入研究，基于魯棒控制、神經網絡等技術，提出了諸多控制方法實現撲翼飛行機器人的自主飛行，其中，姿態控制通過自適應等控制器并結合線性化方法來實現，位置控制則通過搭建層級架構的控制器等方法來完成，并通過設計擾動觀測器等來處理系統的不確定性，以提高系統穩定性能。通過對相關研究工作進行總結，可以看出目前撲翼飛行機器人的飛行控制研究仍大多處于理論階段，還需要進一步結合工程應用中的實際需求，推進撲翼飛行機器人的應用與推廣。最后，探討了撲翼飛行機器人飛行控制未來的研究方向。
- 撲翼飛行機器人 /
- 生物飛行原理 /
- 自主飛行控制 /
- 姿態控制 /
- 人工智能
Abstract: In nature, flying creatures flap their wings to generate lift, which is necessary for flight. Most birds change flight patterns by moving their wings using their wing muscles and adjusting their tail states. Insects, which are without tails, can achieve maneuverable flight using their chest and abdomen muscles and other structures such as hind wings. Owing to high mobility and high energy efficiency, researchers have developed various flapping-wing aerial vehicles according to the bionic principle to improve flight performance. However, a flapping-wing aerial vehicle is a nonlinear and time-variable system. The low Reynolds number and unsteady eddy are important characteristics of the flapping-wing aerial vehicle, and the values are different from those of traditional aircraft. The Reynolds number of the traditional aircraft is larger; thus, the air viscosity is small enough to be ignored. However, the air viscosity of the bionic flapping-wing aerial vehicle is high at low Reynolds number conditions. Adopting a conventional aerodynamic configuration will result in insufficient lift. In addition, the traditional aerodynamics theory cannot explain the high lift of the flapping-wing aerial vehicles, and the mature technologies in traditional aircraft design cannot be directly applied owing to the low Reynolds number. Owing to the periodic movement of the flapping wing, it is difficult for researchers to accurately analyze the aerodynamic model. The autonomous flight of a flapping-wing aerial vehicle is limited by several challenges. To solve this problem, researchers have studied the flight principle of birds and insects. Moreover, the attitude control, position control, and stability analysis of flapping-wing aerial vehicles have been studied. Several control strategies based on robust control, neural networks, and other methods have been proposed to realize the autonomous flight of flapping-wing aerial vehicles. Researchers have also adopted control methods such as adaptive controllers combined with linearization techniques to control attitude. Position control has been achieved using a hierarchical controller and other approaches. In addition, perturbation observation is used to deal with the uncertainty of the system to improve stability. In this paper, the flight control strategies of flapping-wing aerial vehicles of different scales are reviewed. The current research on the flight control of the flapping-wing aerial vehicle is mostly in the prototype phase. Most of these theories have not been verified in actual flight. Therefore, the flight control theory needs to be combined with actual missions to promote the application of the flapping-wing aerial vehicle. Finally, the future trend of the flight control of the flapping-wing aerial vehicle is highlighted.
- flapping-wing aerial vehicles /
- flight principle /
- autonomous flight /
- attitude control /
- artificial intelligence

HTML全文

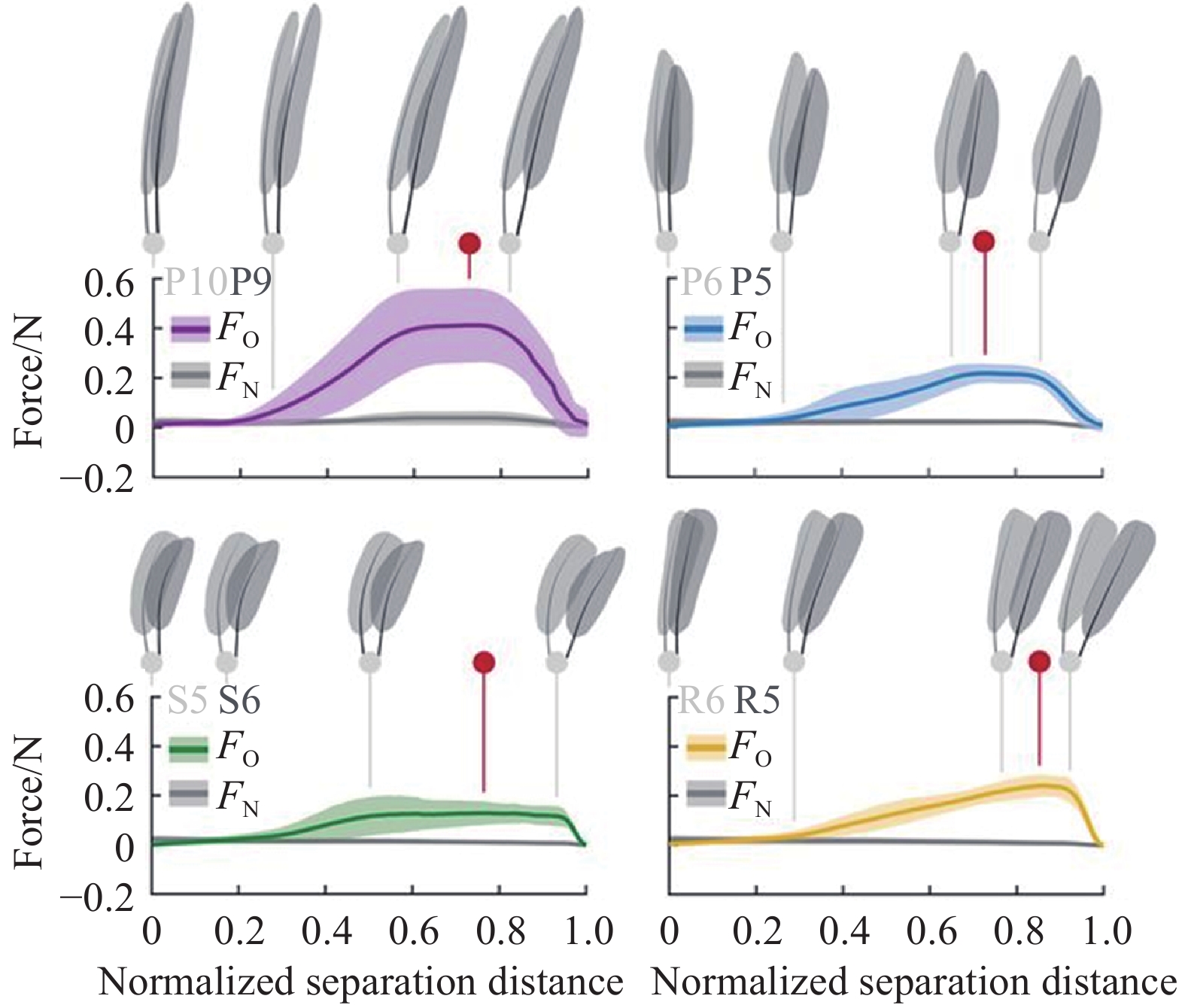

圖 1 鴿子的一對飛羽間的反作用力隨分離距離的變化^[35]

Figure 1. Change in the opposing force between the two flight feathers of a pigeon with separation distance^[35]

下載: 全尺寸圖片幻燈片

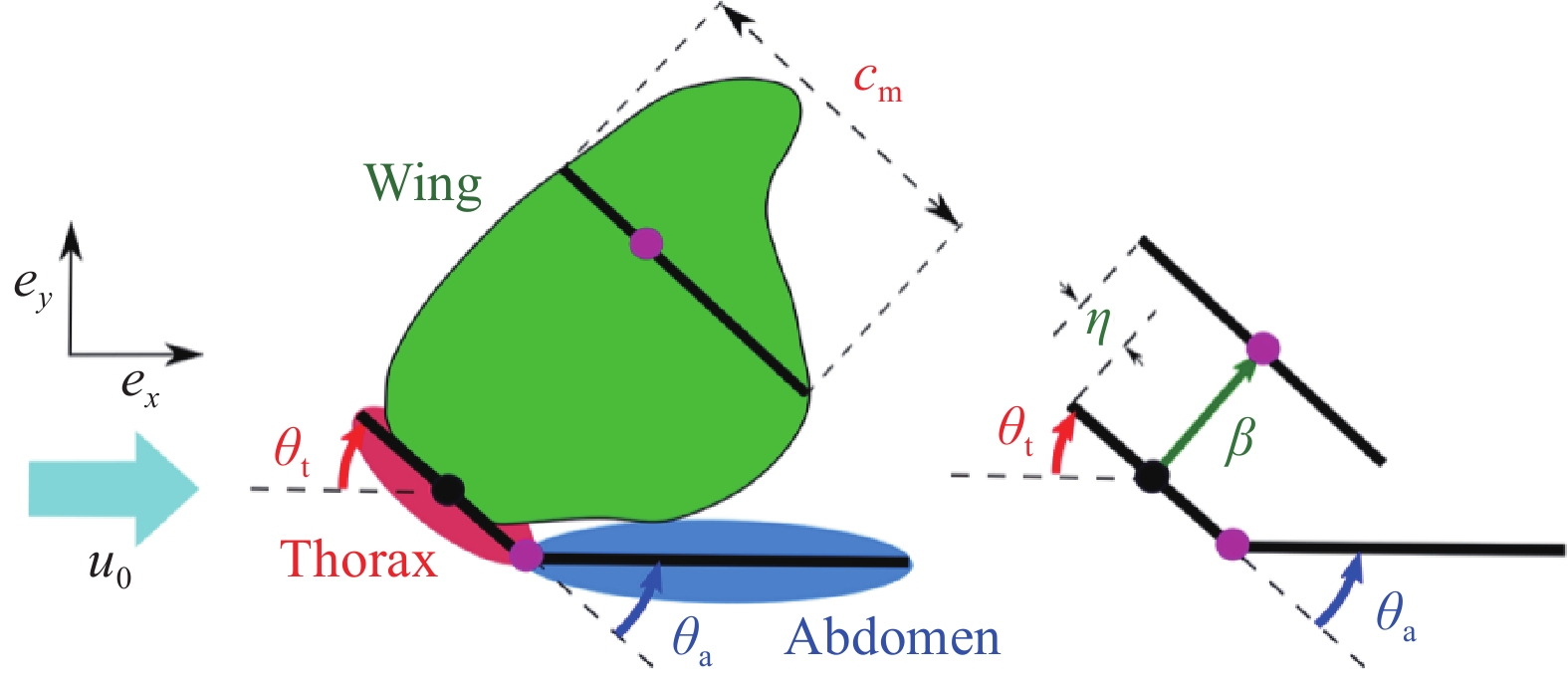

圖 2 蝴蝶的二維模型圖^[38]

Figure 2. Two-dimensional butterfly model^[38]

下載: 全尺寸圖片幻燈片

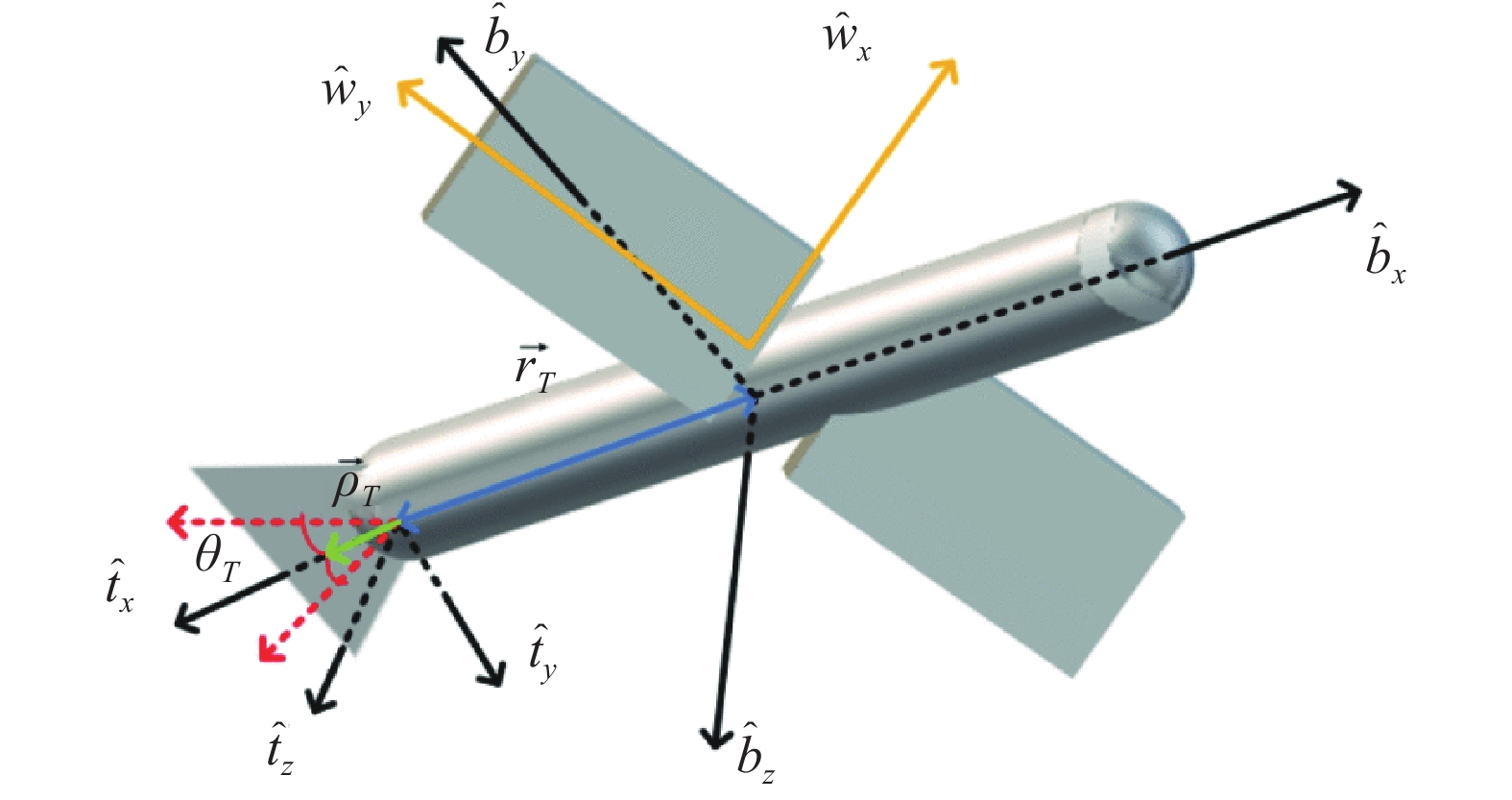

圖 3 撲翼飛行機器人三維氣動力模型^[42]

Figure 3. Three-dimensional aerodynamic model of the flapping-wing aerial vehicle^[42]

下載: 全尺寸圖片幻燈片

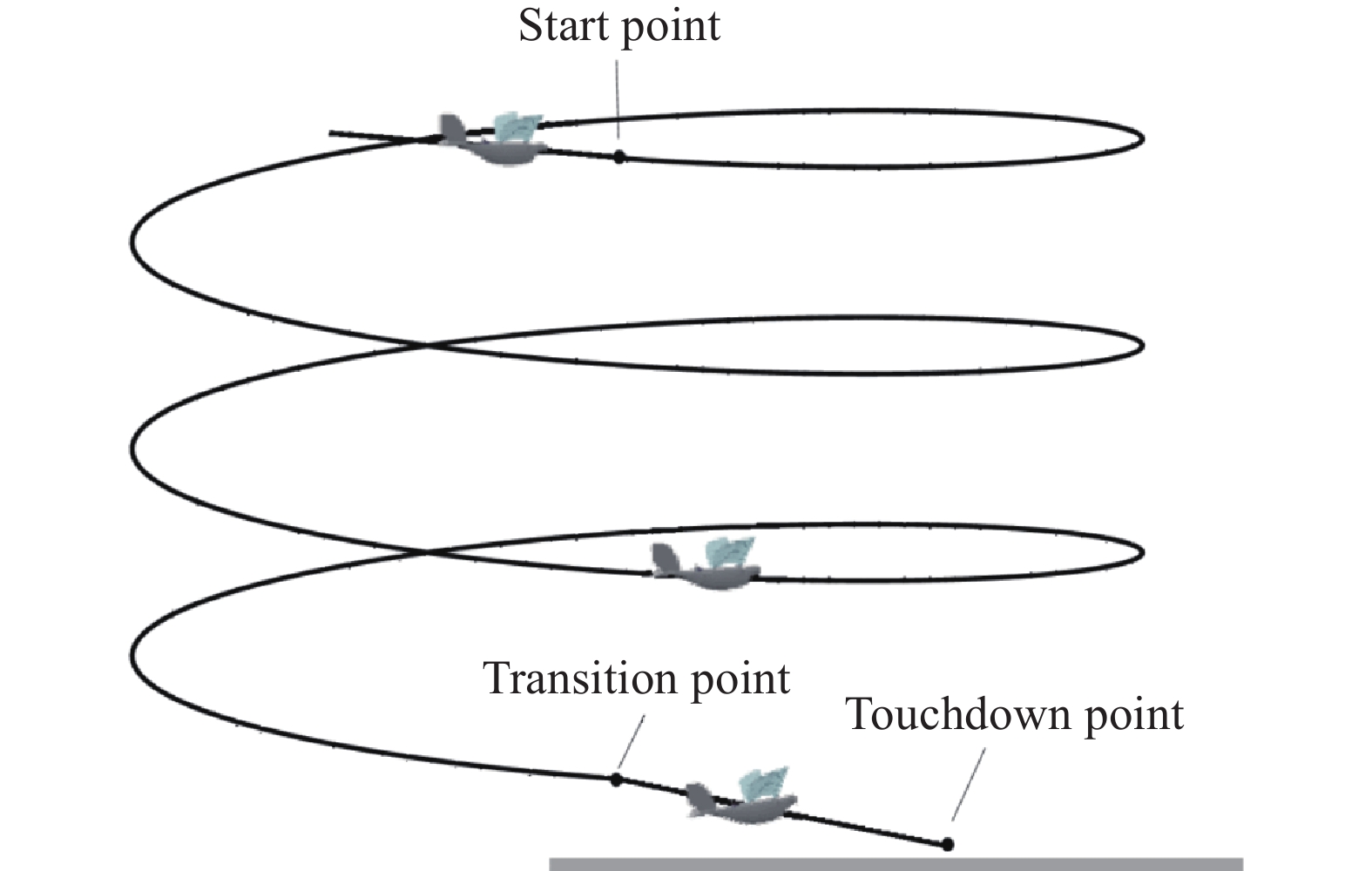

圖 4 仿鳥撲翼飛行機器人的自主著陸^[50]

Figure 4. Autonomous landing of a bird-like flapping-wing aerial vehicle^[50]

下載: 全尺寸圖片幻燈片

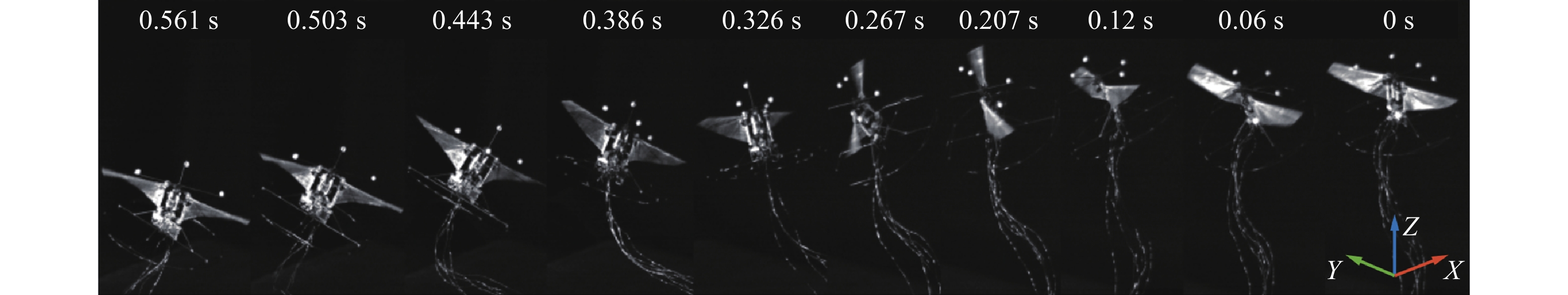

圖 5 撲翼飛行機器人在完成快速躲避動作時的狀態^[59]

Figure 5. Emergency avoidance of a flapping-wing aerial vehicle^[59]

下載: 全尺寸圖片幻燈片

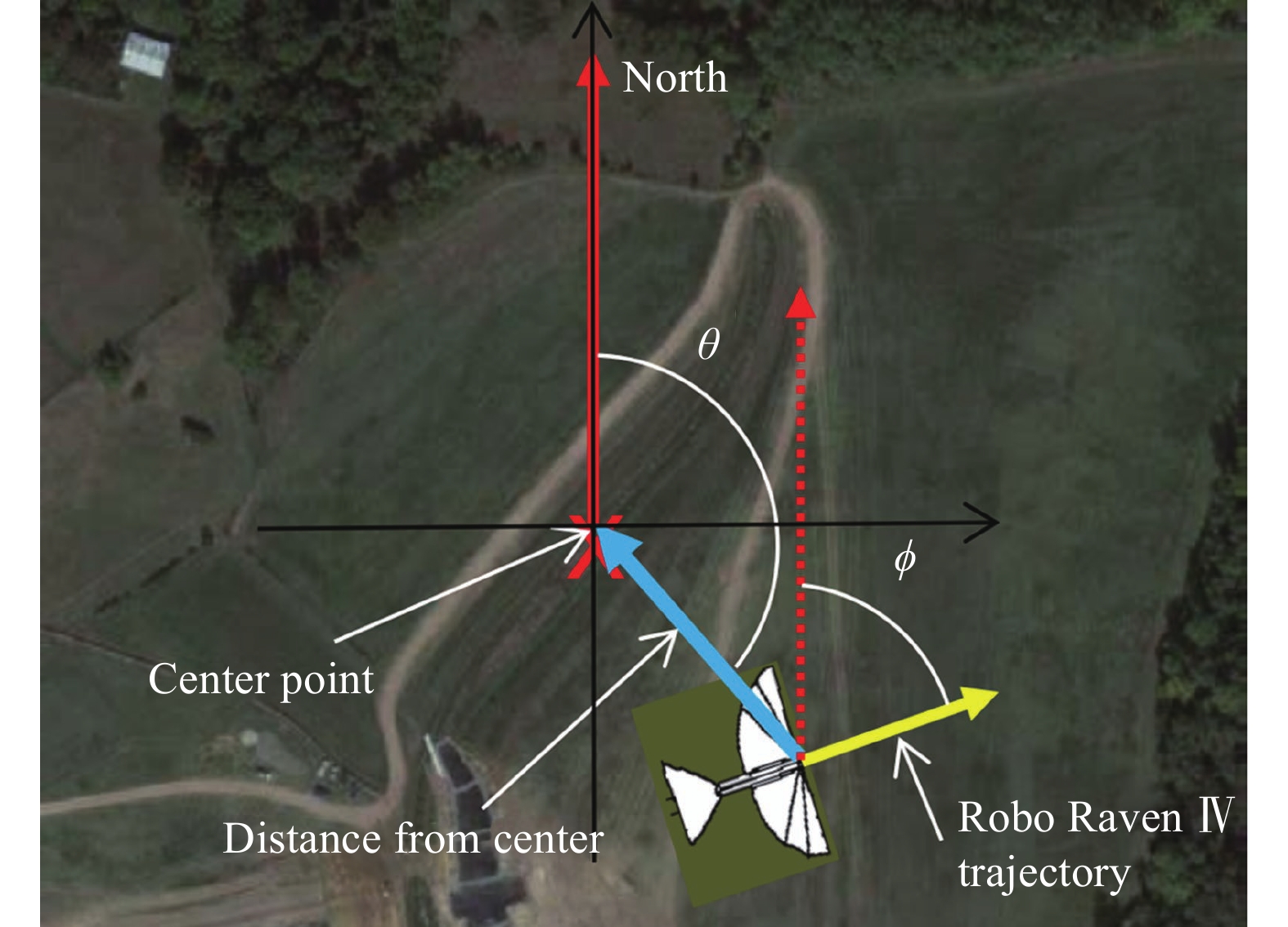

圖 6 撲翼飛行機器人自主巡航示意圖^[65]

Figure 6. Autonomous cruise of a flapping-wing aerial vehicle^[65]

下載: 全尺寸圖片幻燈片

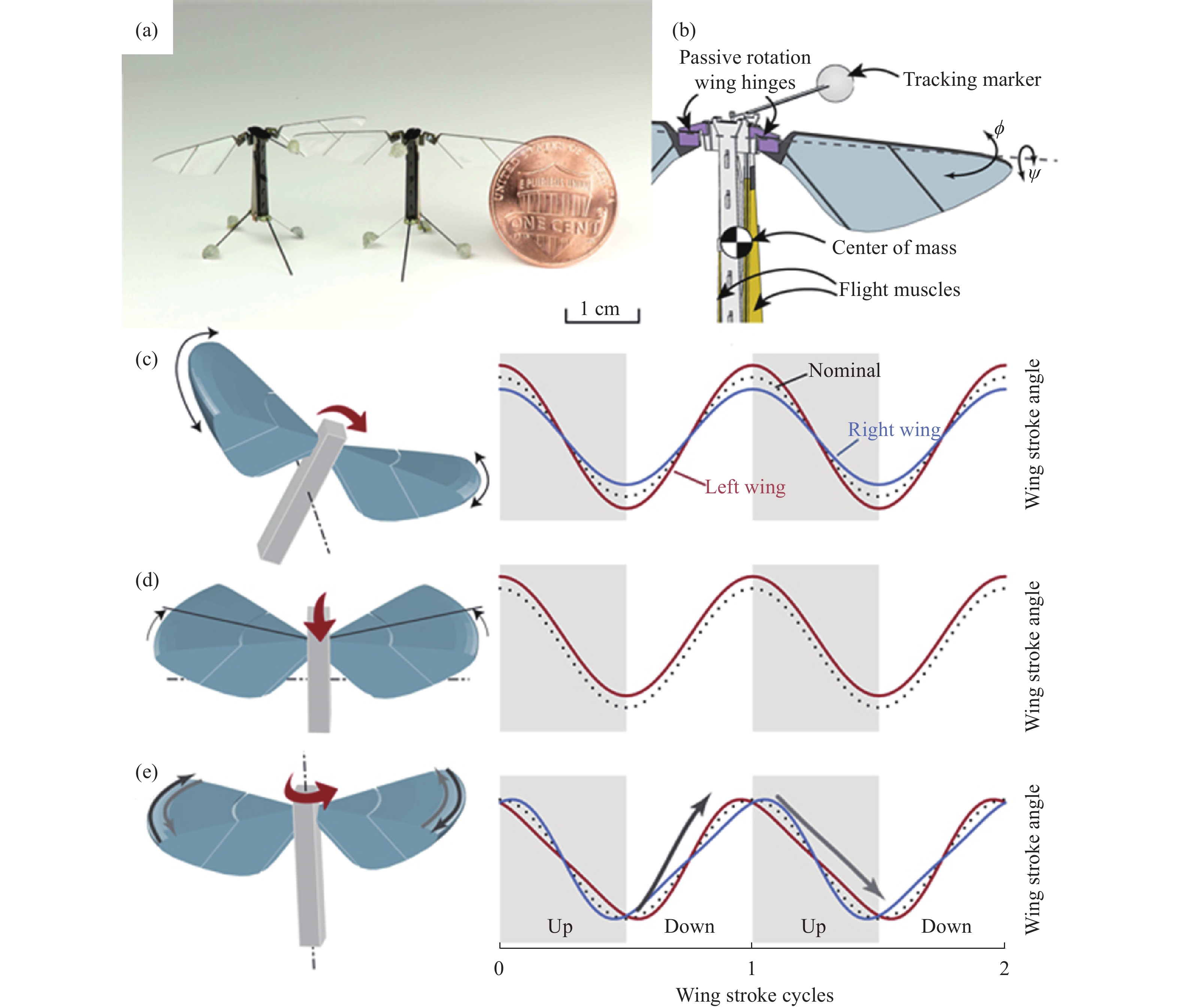

圖 7 微型撲翼飛行機器人系統. (a)實物樣機; (b) 微型撲翼飛行機器人關鍵部件以及撲翼旋轉軸示意圖; (c) 滾轉力矩產生示意圖; (d) 俯仰力矩產生示意圖; (e) 偏航力矩產生示意圖^[74]

Figure 7. Flapping-wing microaerial vehicle: (a) the prototype; (b) critical components of the flapping-wing aerial vehicle; (c) rolling moment; (d) pitching moment; (e) yaw moment^[74]

下載: 全尺寸圖片幻燈片

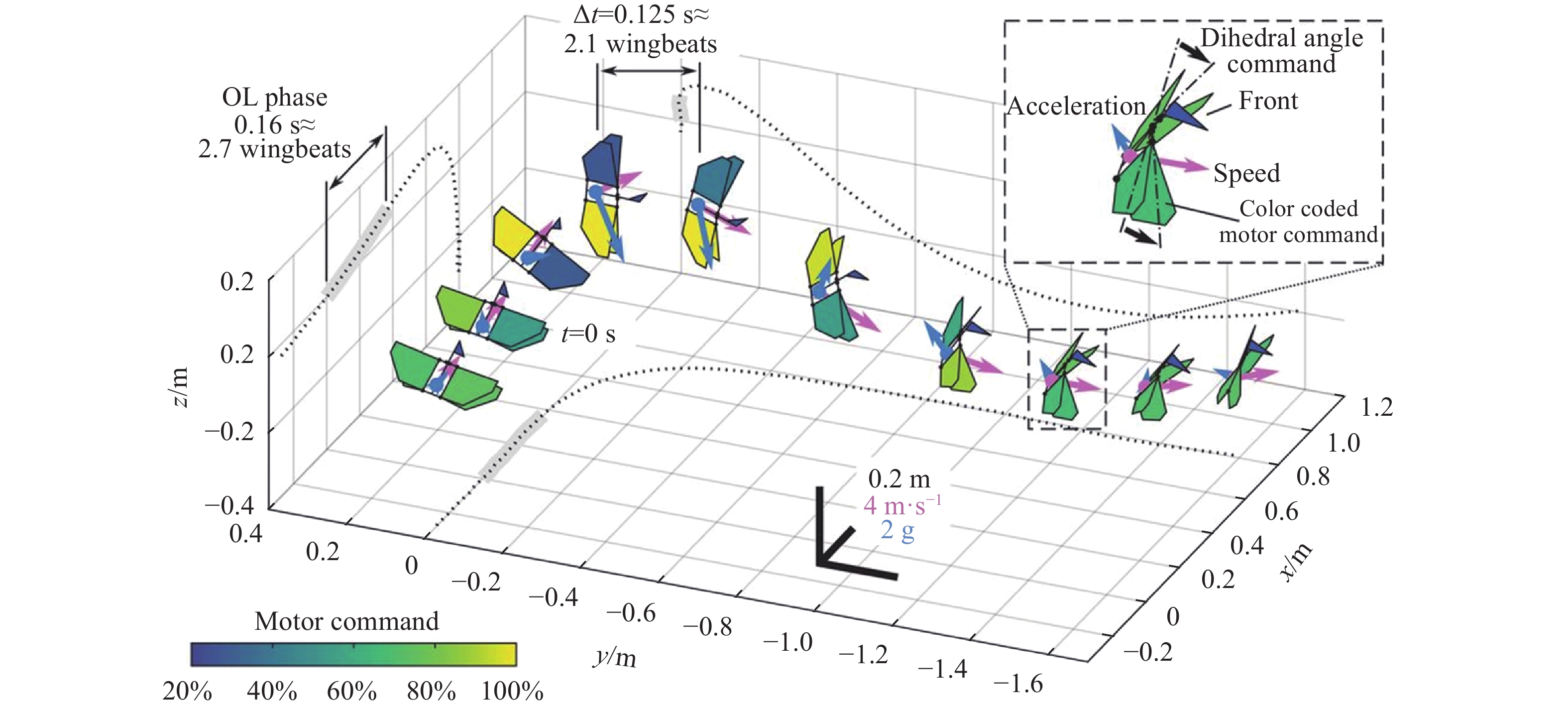

圖 8 仿生快速規避運動分解，其中機翼顏色表示不同大小的推力命令^[76]

Figure 8. Decomposition of bionic quick avoidance; wing color represents thrust value^[76]

下載: 全尺寸圖片幻燈片

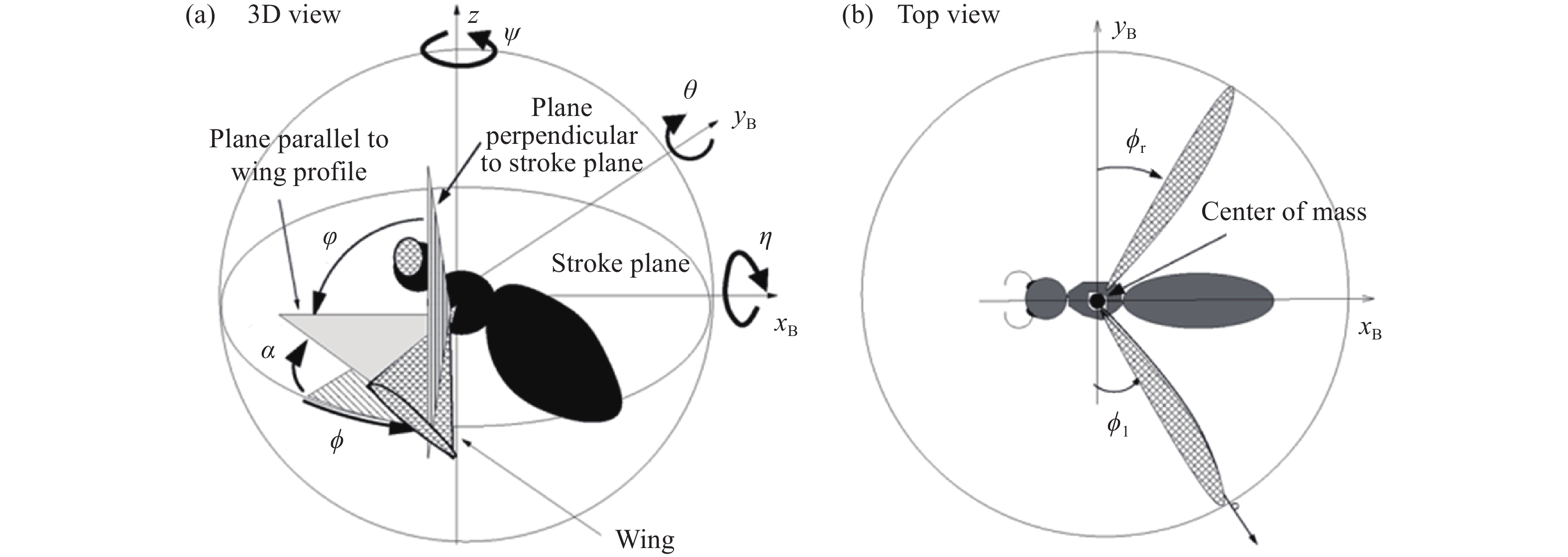

圖 9 微型撲翼飛行機器人動力學分析. (a) 機體與左翼三維視圖; (b) 撲翼行程平面俯視圖^[79]

Figure 9. Kinetics of the flapping-wing microaerial vehicle: (a) three-dimensional view of the body and the left wing; (b) top view of the stroke plane^[79]

下載: 全尺寸圖片幻燈片

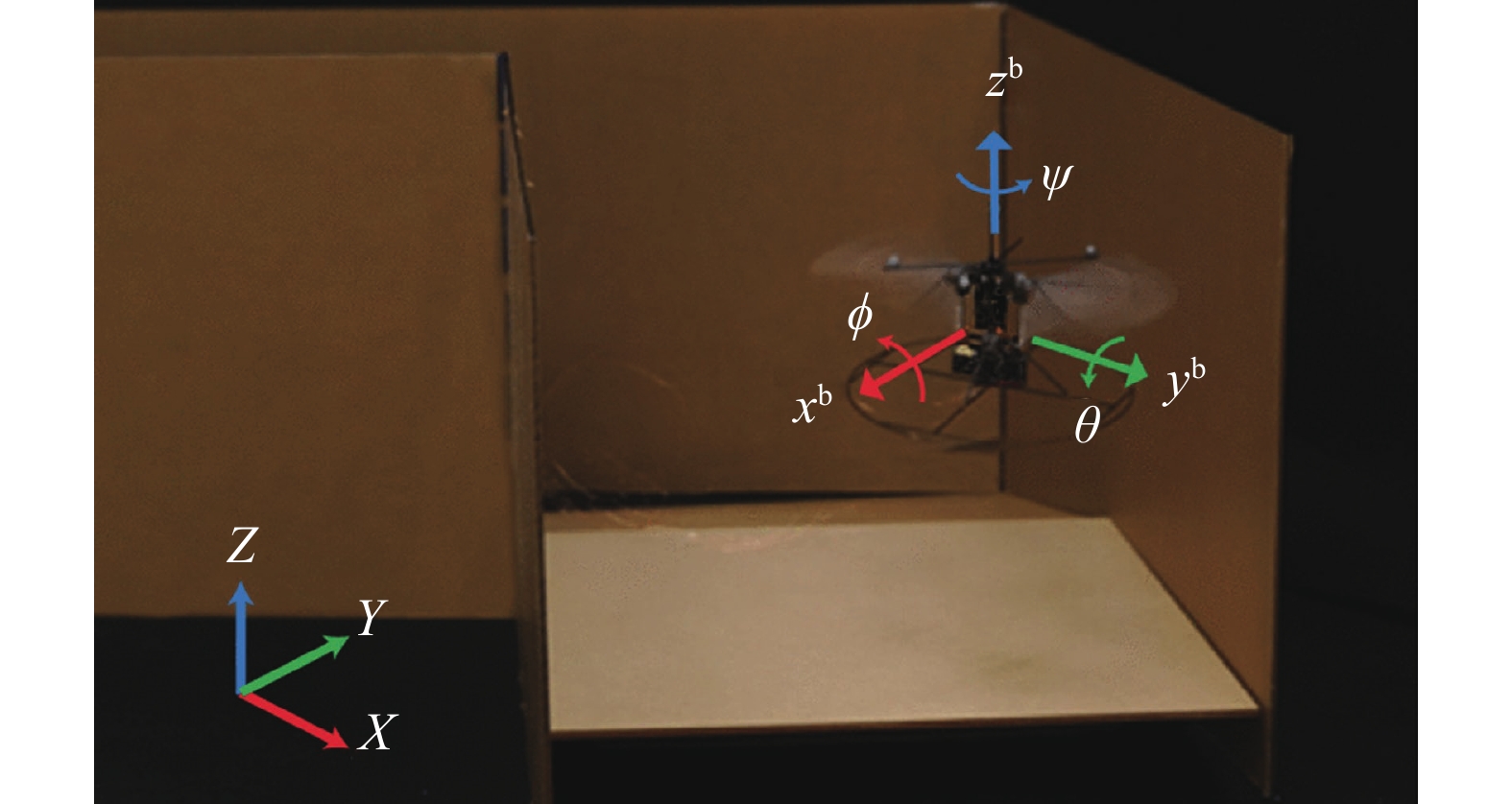

圖 10 處于狹窄通道中的微型撲翼飛行機器人^[83]

Figure 10. Flapping-wing microaerial vehicle in a narrow passage^[83]

下載: 全尺寸圖片幻燈片

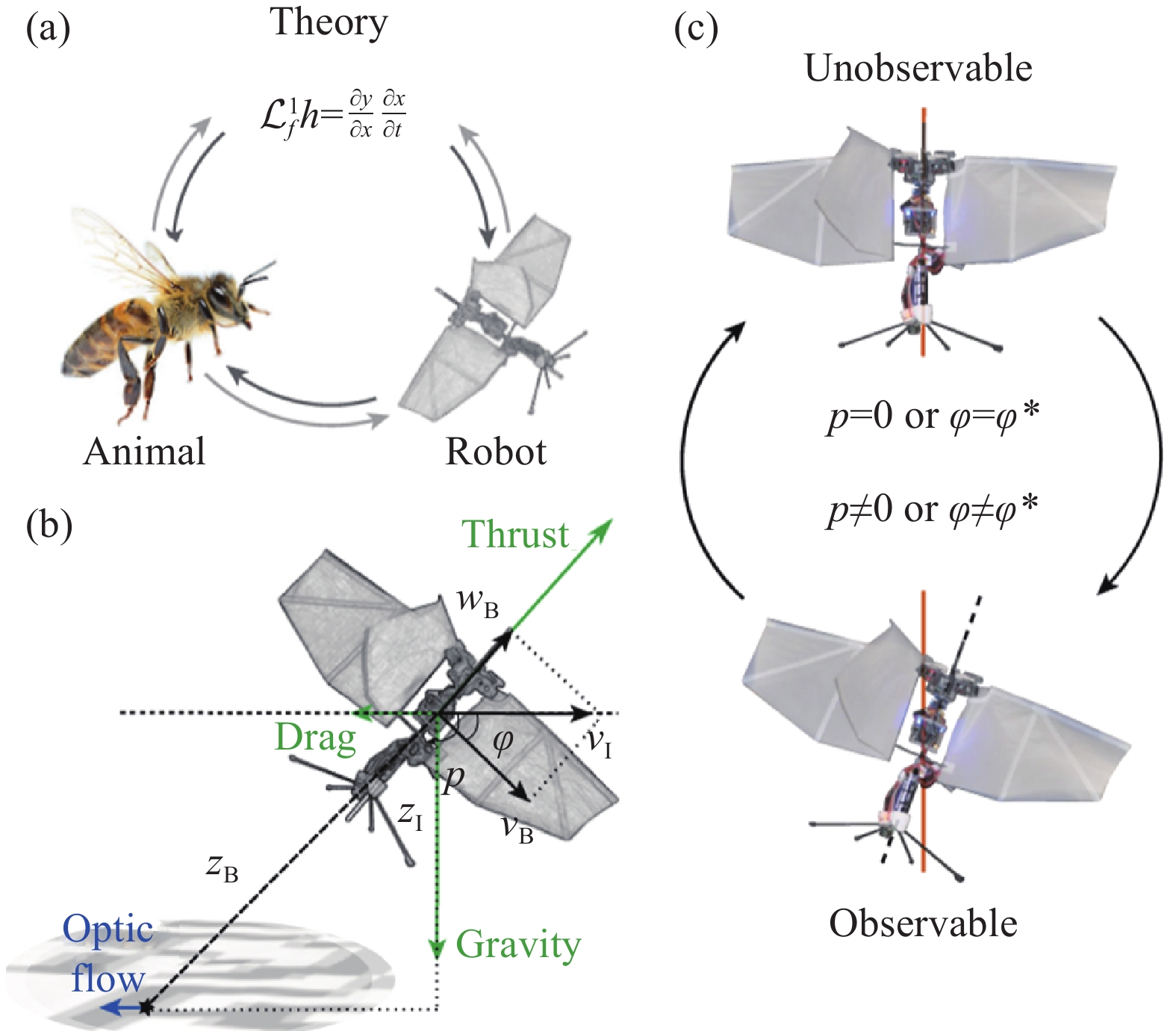

圖 11 利用光流和運動模型估計姿態. (a) 基于光流的飛行姿態控制方法; (b) 不穩定飛行系統的推力矢量運動模型; (c)所提出的姿態估計方法導致系統輕微的姿態振蕩^[87]

Figure 11. Attitude estimation using an optical flow and motion model: (a) attitude control based on optical flow; (b) thrust-vectoring motion model of an unstable system; (c) slight oscillation caused by the proposed attitude estimation method^[87]

下載: 全尺寸圖片幻燈片
