摘要

摘要: 開展了一系列靜態三軸剪切試驗，研究了不同初始條件（圍壓、密實度）以及不同試驗條件（剪切速率、排水條件）對黃河泥沙靜力強度以及變形特性的影響，得到了黃河泥沙的應力應變曲線發展規律，以及應力路徑、抗剪強度包線、應力比曲線和不同特征狀態下的內摩擦角分布、初始剪切模量以及極限偏應力等指標。結果表明：黃河泥沙的抗剪強度對圍壓、密實度以及排水條件更為敏感，具體而言，峰值強度、臨界強度均隨著圍壓與密實度的提高而增大，不排水條件下的抗剪強度大于排水條件；不排水條件下孔壓的發展與排水條件下的剪脹特性具有對照關系，但孔壓較剪脹特性發展得更為迅速，并且得到黃河泥沙的特征狀態內摩擦角分布區間介于22.6°到38.1°之間。本研究可以為黃河泥沙在路基工程中的資源化利用提供數據和理論參考。
- 黃河泥沙 /
- 三軸試驗 /
- 強度 /
- 變形 /
- 特征狀態
Abstract: The middle and lower reaches of the Yellow River are rich in silt. The Yellow River silt can be utilized as a subgrade filling material along the Yellow River expressway to enhance its resource utilization potential. However, research on the geotechnical mechanical properties of the Yellow River silt is limited. In this study, a series of triaxial shear tests were conducted using the global digital systems triaxial apparatus to examine the effects of initial conditions (confining pressure and relative density) and test conditions (shear rate and drainage conditions) on the static strength and deformation characteristics of the Yellow River silt. The stress–strain curve, volumetric strain curve, envelope of shear strength, stress ratio curve, and internal friction angle distribution under different characteristic states were obtained. The test results showed that the shear strength of the Yellow River silt was more sensitive to confining pressure, relative density, and drainage conditions. The stress–strain curves of the Yellow River silt samples under drained conditions showed a slight strain-softening phenomenon; therefore, there were three characteristic states: peak state, phase transformation state, and critical state. Moreover, the stress–strain curves of the Yellow River silt samples under undrained conditions showed strain hardening characteristics, and there existed three characteristic states: the peak state, critical state, and peak pore pressure state. Additionally, the Yellow River silt samples simultaneously reached the peak and critical states at the end of the shear procedure. Specifically, the strength at the peak and critical states increased with increasing confining pressure and relative density. The shear strength under the undrained conditions was greater than that under the drained conditions. The development of pore pressure under the undrained conditions was in contrast with the dilatancy characteristics under the drained conditions; however, the pore pressure developed more rapidly than that depicted by the dilatancy characteristics. The distribution interval of the friction angle at the characteristic states of the Yellow River silt was between 22.6° and 38.1°. The initial shear modulus and ultimate deviator stress of the Yellow River silt increased with increasing confining pressure and relative density but were not sensitive to the shear rate. The ultimate deviator stress under undrained conditions was greater than that under drained conditions, while the initial shear modulus under drained conditions was smaller than that under undrained conditions under medium–low confining pressure. To strengthen the shear resistance of Yellow River silt, more attention should be paid to improving the compaction degree when the Yellow River silt is used as the filling material of expressway subgrades. This study can provide data and theoretical references for the resource utilization of Yellow River silt in subgrade engineering.
- Yellow River silt /
- triaxial test /
- strength /
- deformation /
- characteristic state

HTML全文

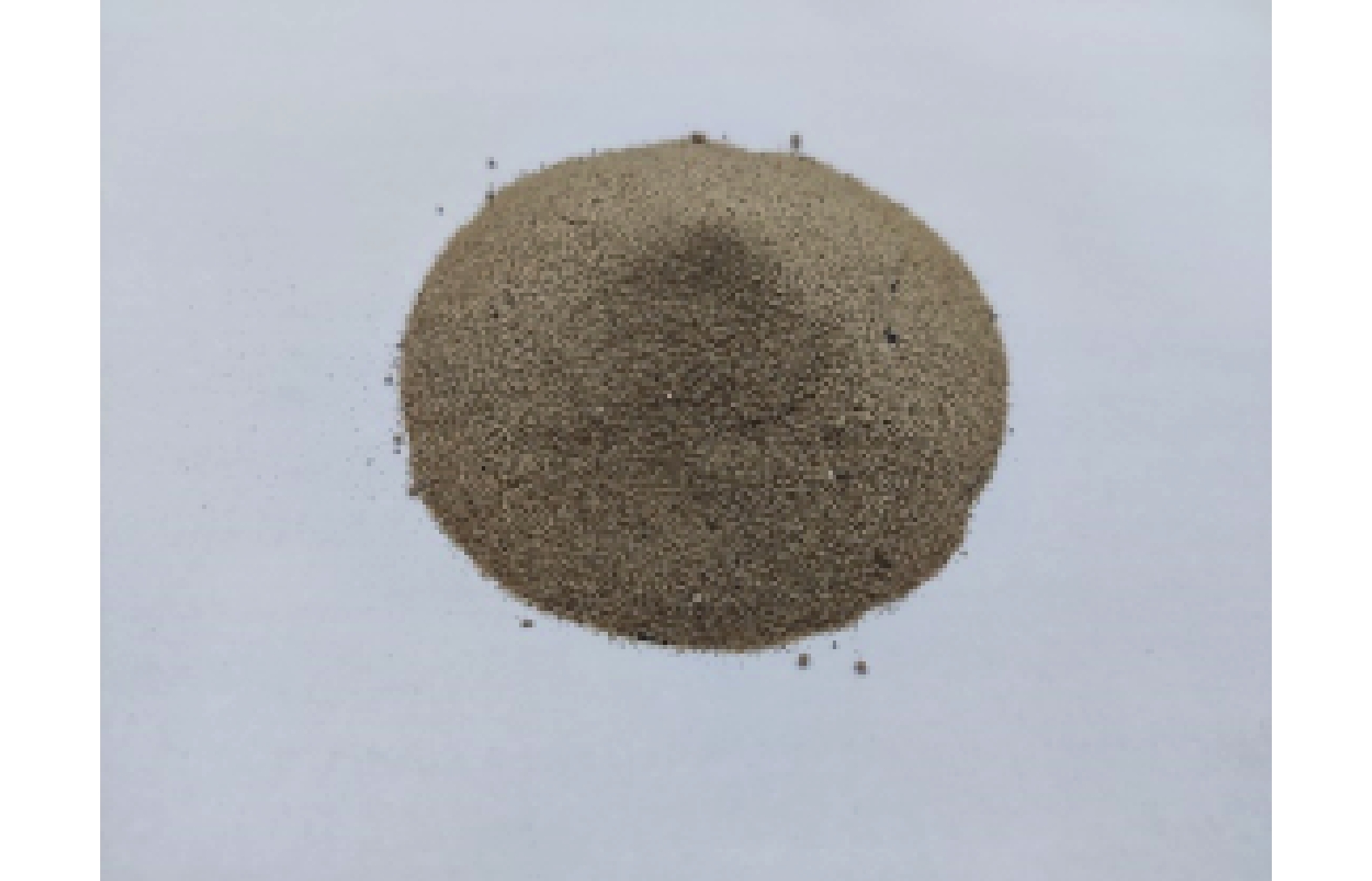

圖 1 黃河泥沙土樣

Figure 1. Yellow River silt

下載: 全尺寸圖片幻燈片

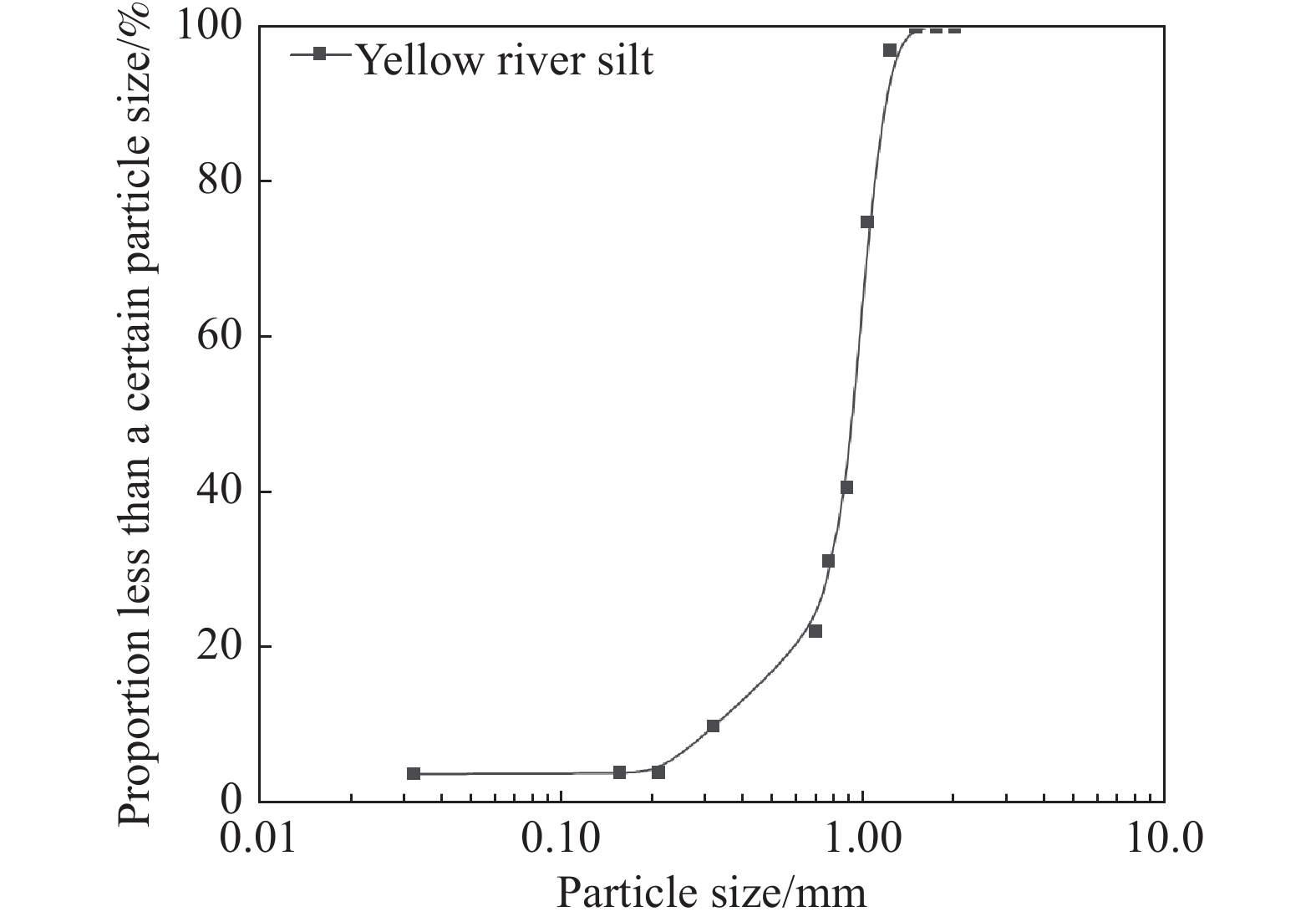

圖 2 黃河泥沙級配曲線

Figure 2. Grading curve of Yellow River silt

下載: 全尺寸圖片幻燈片

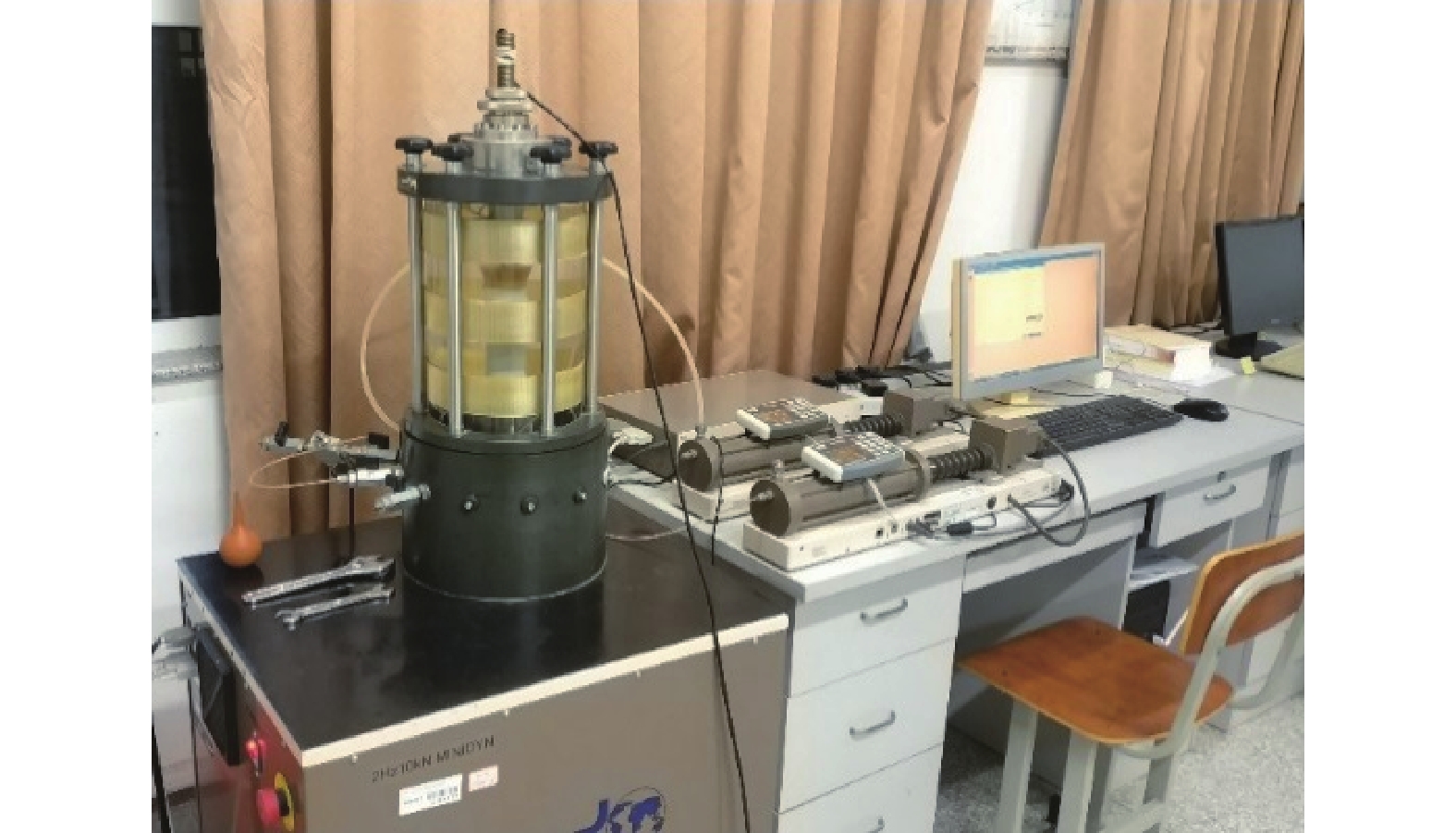

圖 3 GDS三軸試驗儀

Figure 3. GDS triaxial test apparatus

下載: 全尺寸圖片幻燈片

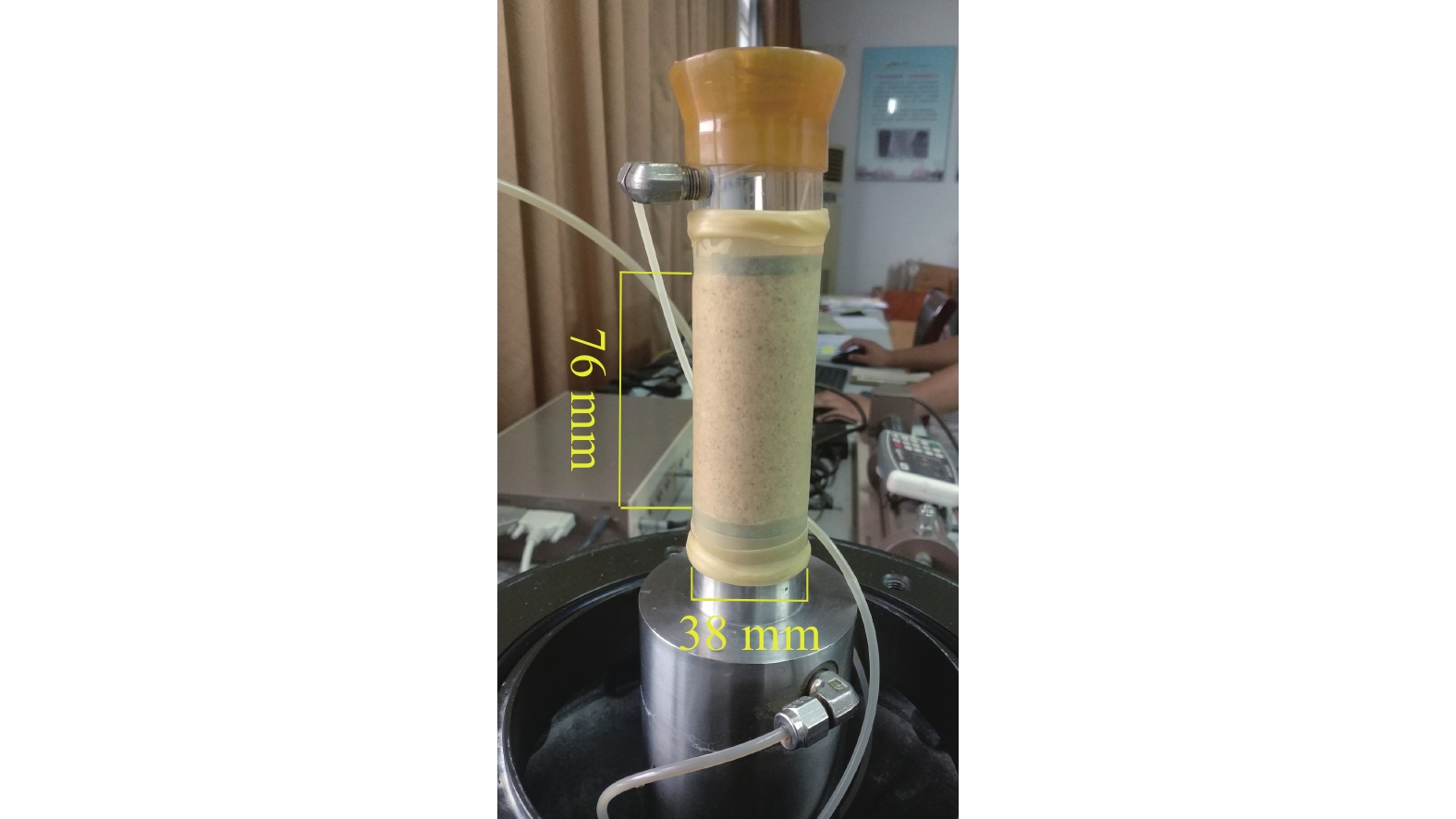

圖 4 黃河泥沙三軸試樣

Figure 4. Triaxial samples of Yellow River silt

下載: 全尺寸圖片幻燈片

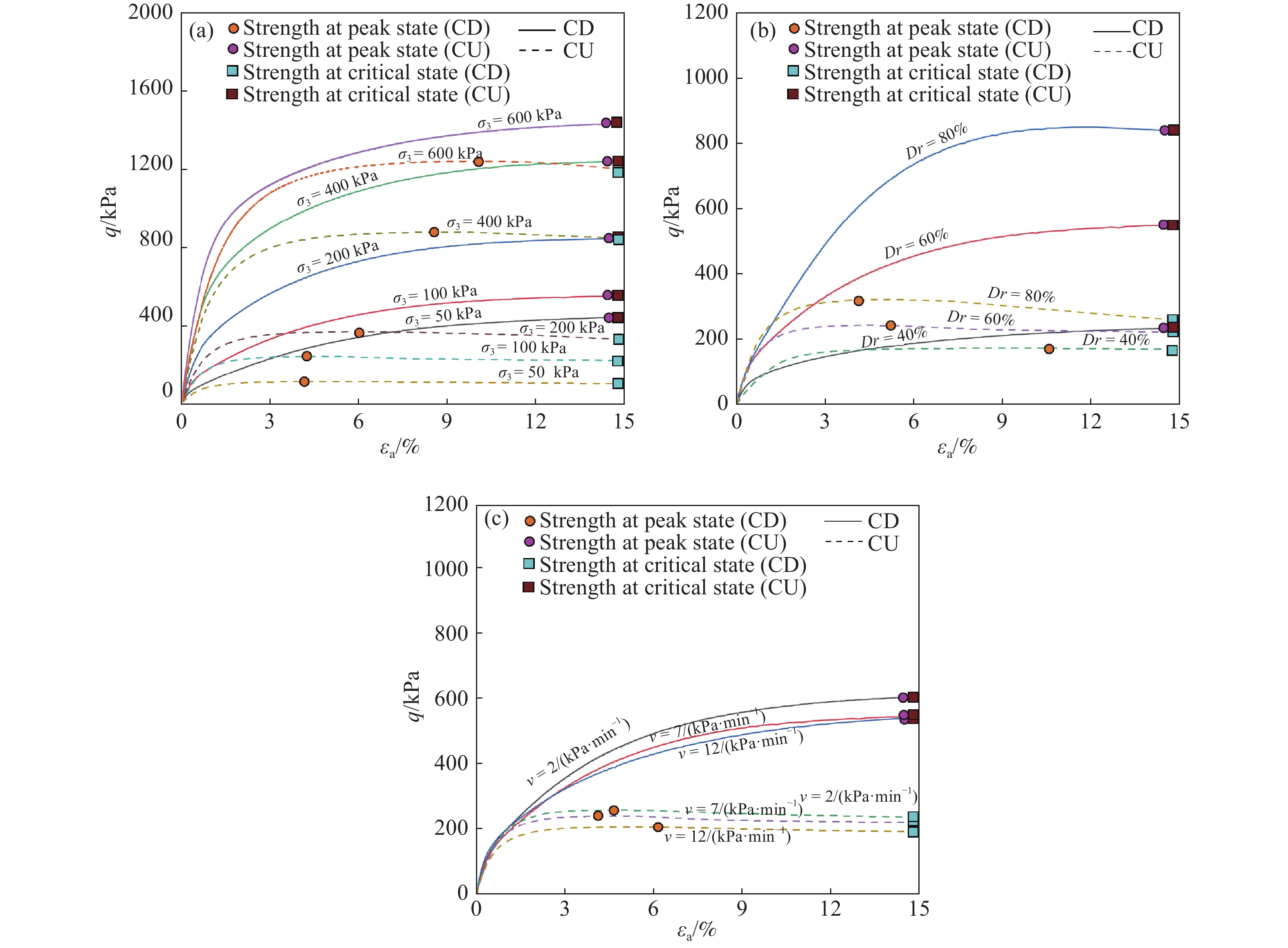

圖 5 不同條件下應力應變關系對比. (a)圍壓；(b)密實度；(c)剪切速率

Figure 5. Comparison of stress–strain curve under different conditions: (a) confining pressure; (b) relative density; (c) shear rate

下載: 全尺寸圖片幻燈片

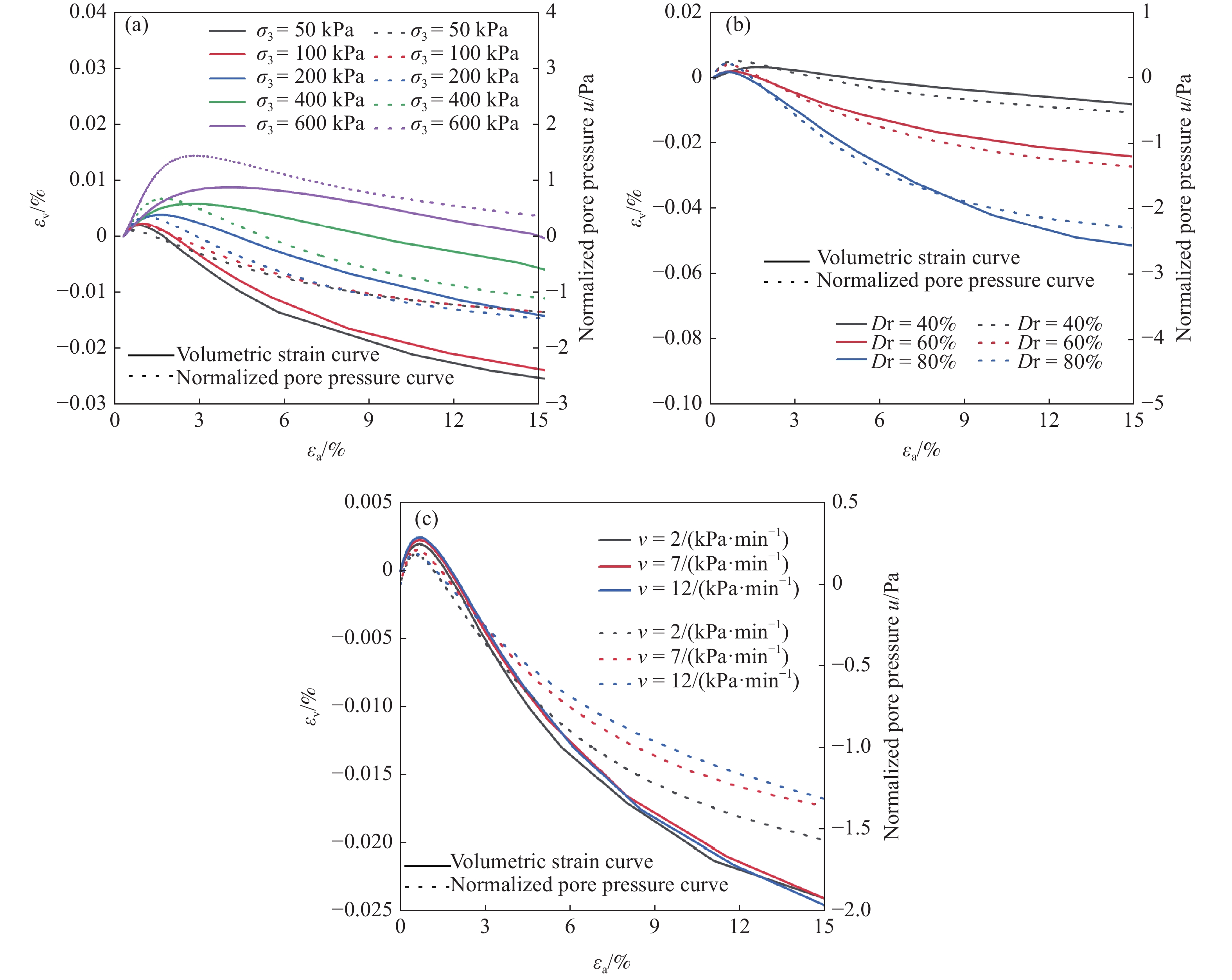

圖 6 不同條件下體應變曲線與歸一化孔壓曲線對比.(a)圍壓；(b)密實度；(c)剪切速率

Figure 6. Comparison between volumetric strain curve and normalized pore pressure curve under different conditions: (a) confining pressure; (b) relative density; (c) shear rate

下載: 全尺寸圖片幻燈片

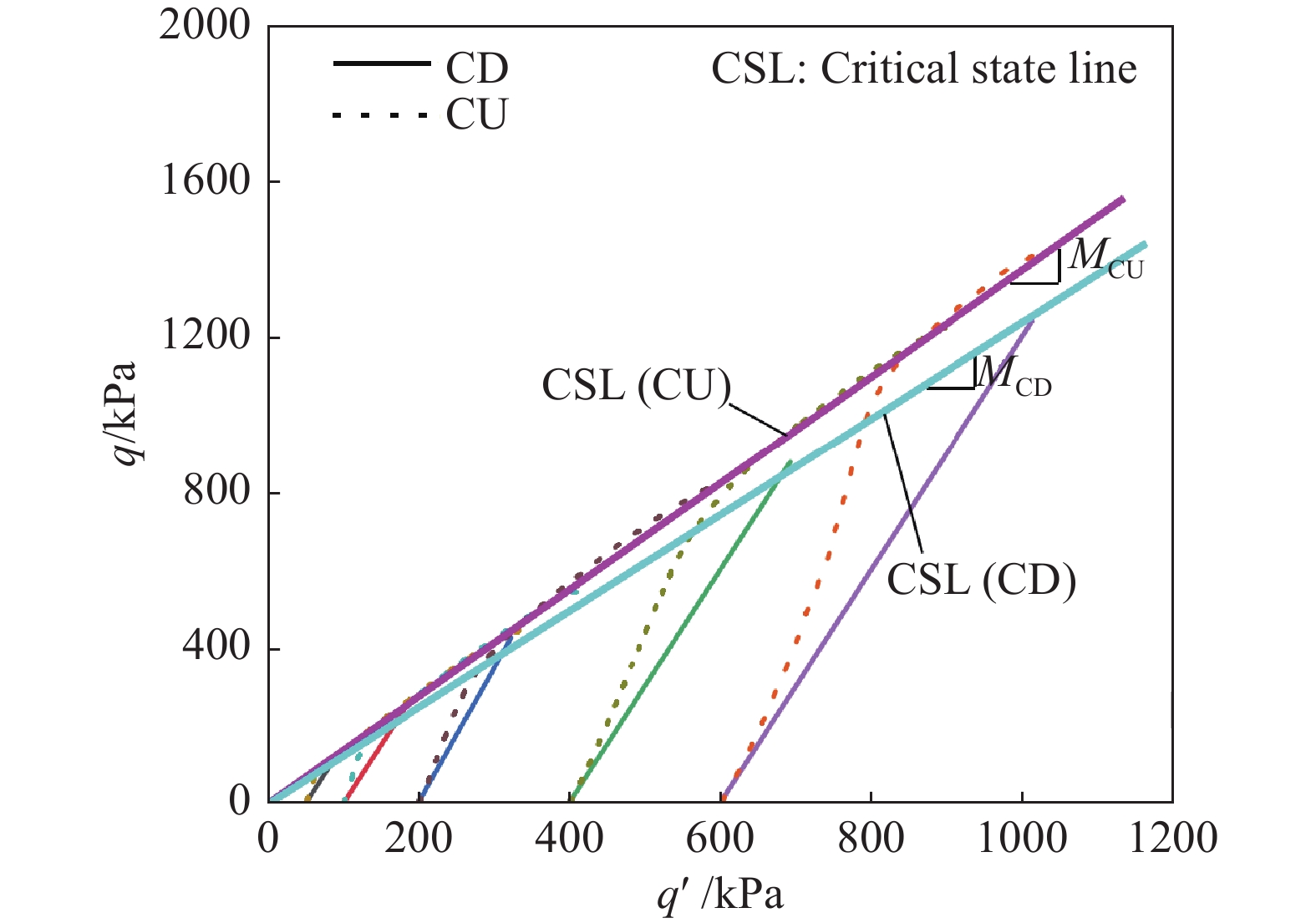

圖 7 不同排水條件下黃河泥沙的應力路徑

Figure 7. Stress path of Yellow River silt under different drained conditions

下載: 全尺寸圖片幻燈片

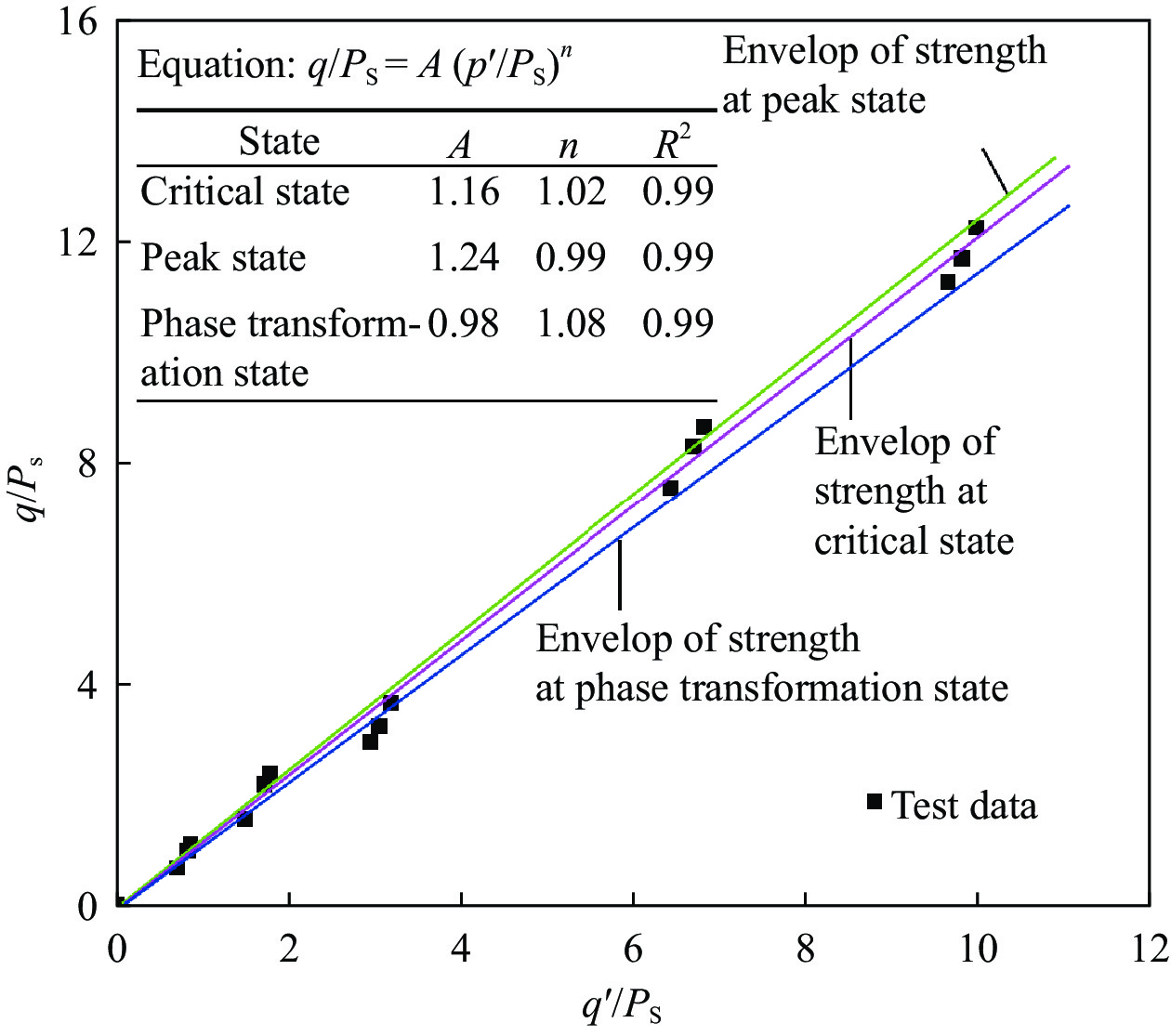

圖 8 CD試驗條件下強度包線

Figure 8. Strength envelope of CD test

下載: 全尺寸圖片幻燈片

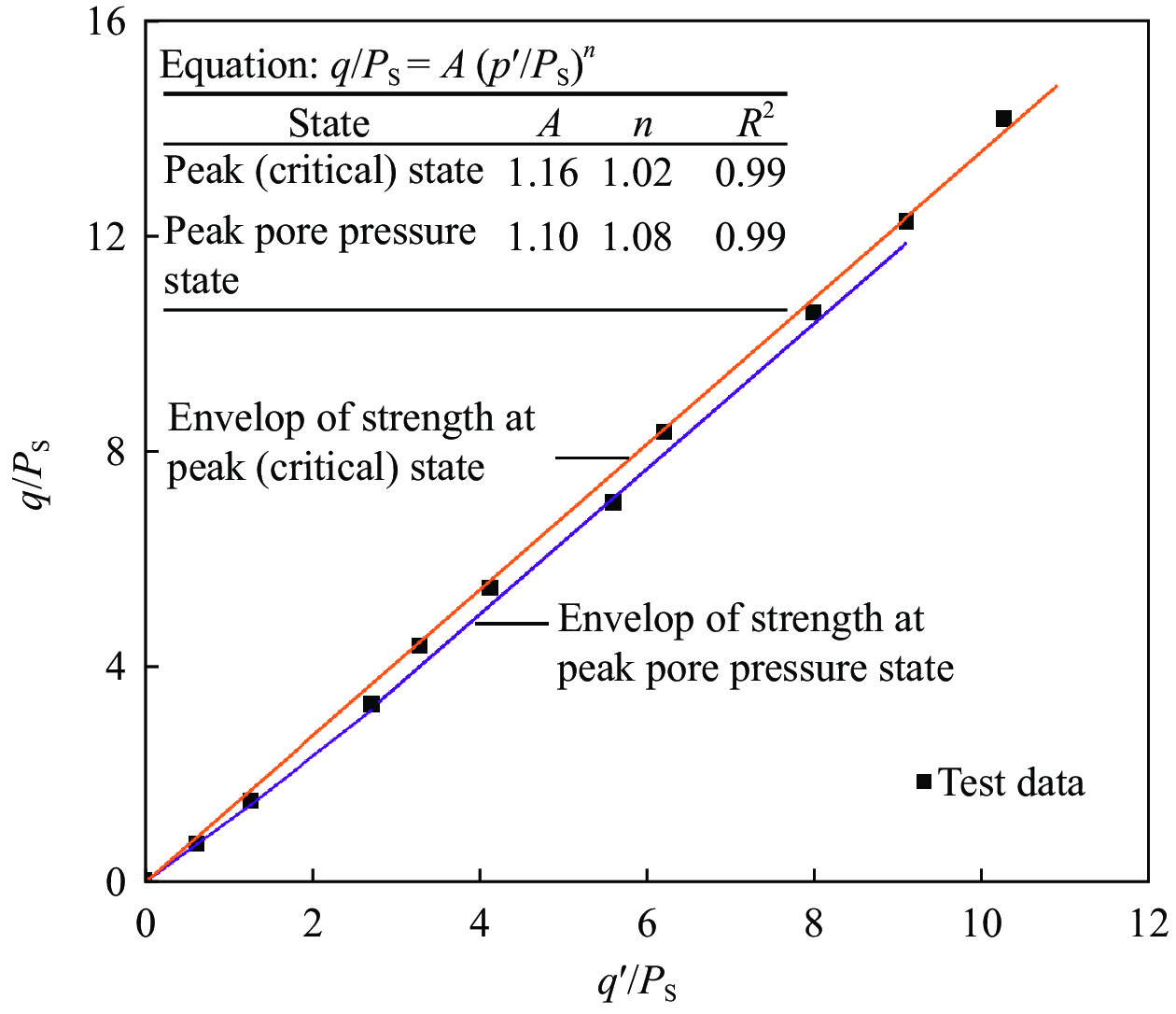

圖 9 CU試驗條件下強度包線

Figure 9. Strength envelope of CU test

下載: 全尺寸圖片幻燈片

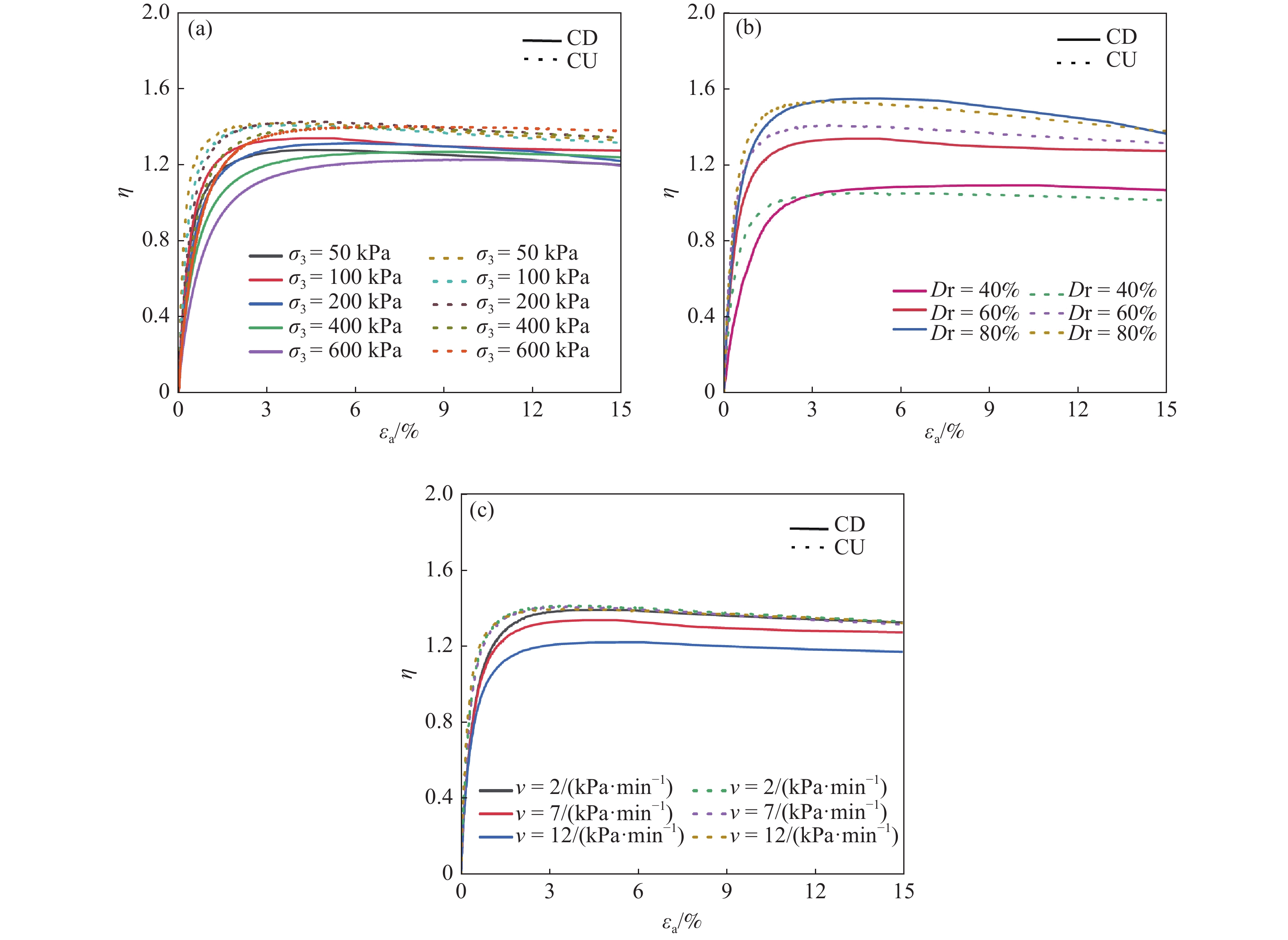

圖 10 不同條件下應力比曲線對比. (a)圍壓；(b)密實度；(c)剪切速率

Figure 10. Comparison of the stress ratio curves under different conditions: (a) confining pressure; (b) relative density; (c) shear rate

下載: 全尺寸圖片幻燈片

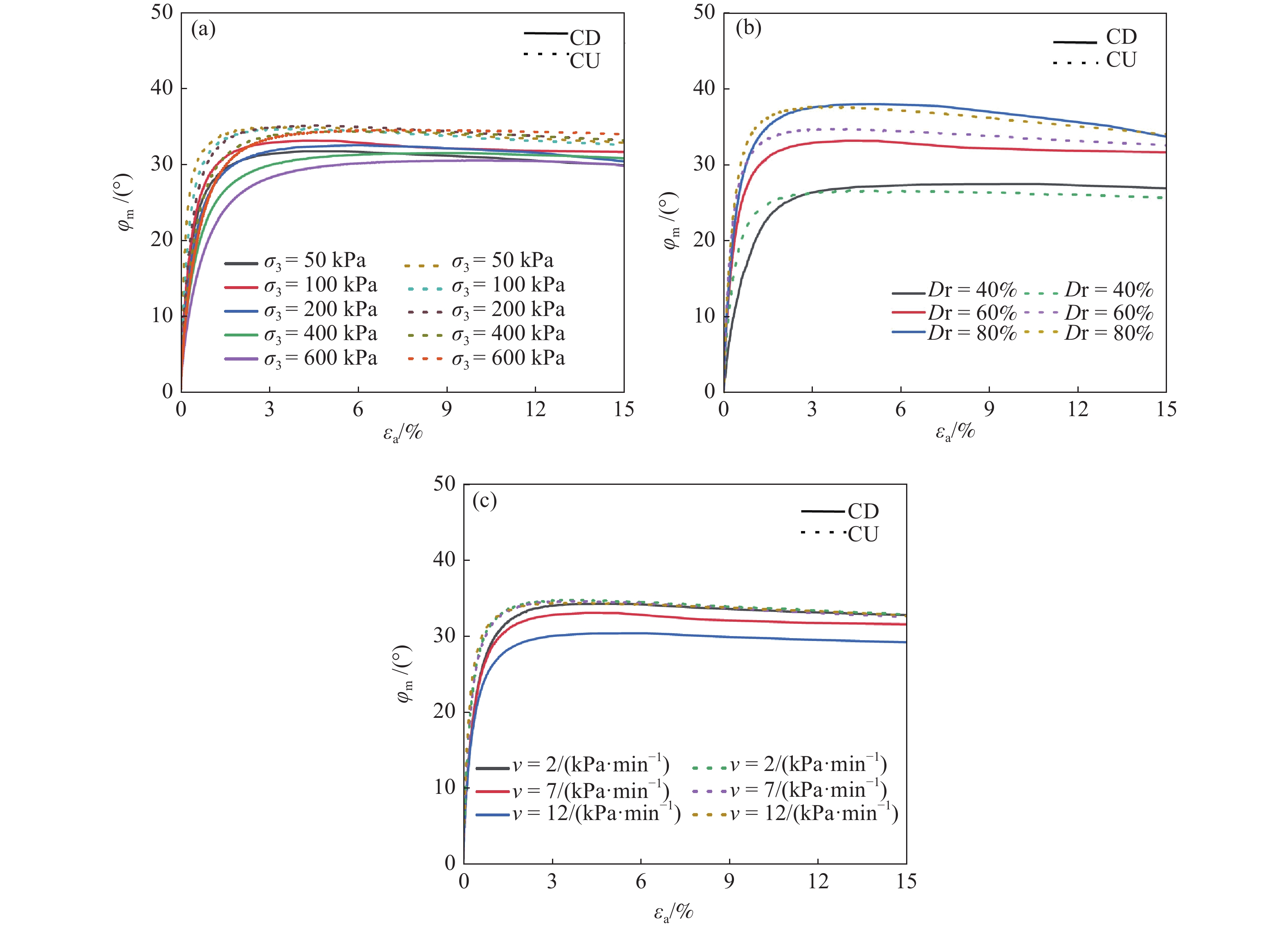

圖 11 不同條件下動內摩擦角曲線對比. (a)圍壓；(b)密實度；(c)剪切速率

Figure 11. Comparison of mobilized internal friction angle curve under different conditions: (a) confining pressure; (b) relative density; (c) shear rate

下載: 全尺寸圖片幻燈片

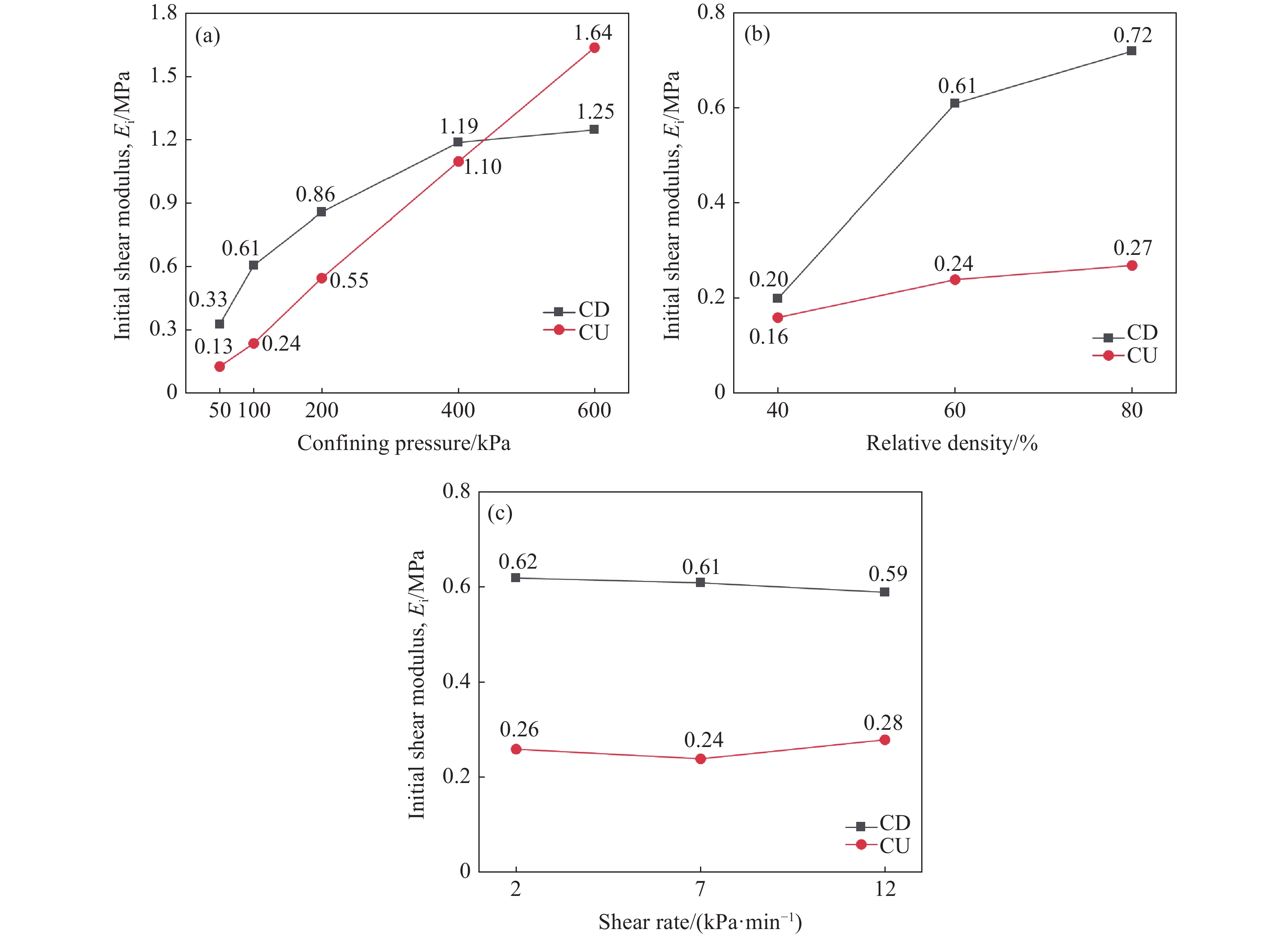

圖 12 不同試驗條件下的初始剪切模量. (a)圍壓；(b)密實度；(c)剪切速率

Figure 12. Initial shear modulus under different experimental conditions: (a) confining pressure; (b) relative density; (c) shear rate

下載: 全尺寸圖片幻燈片

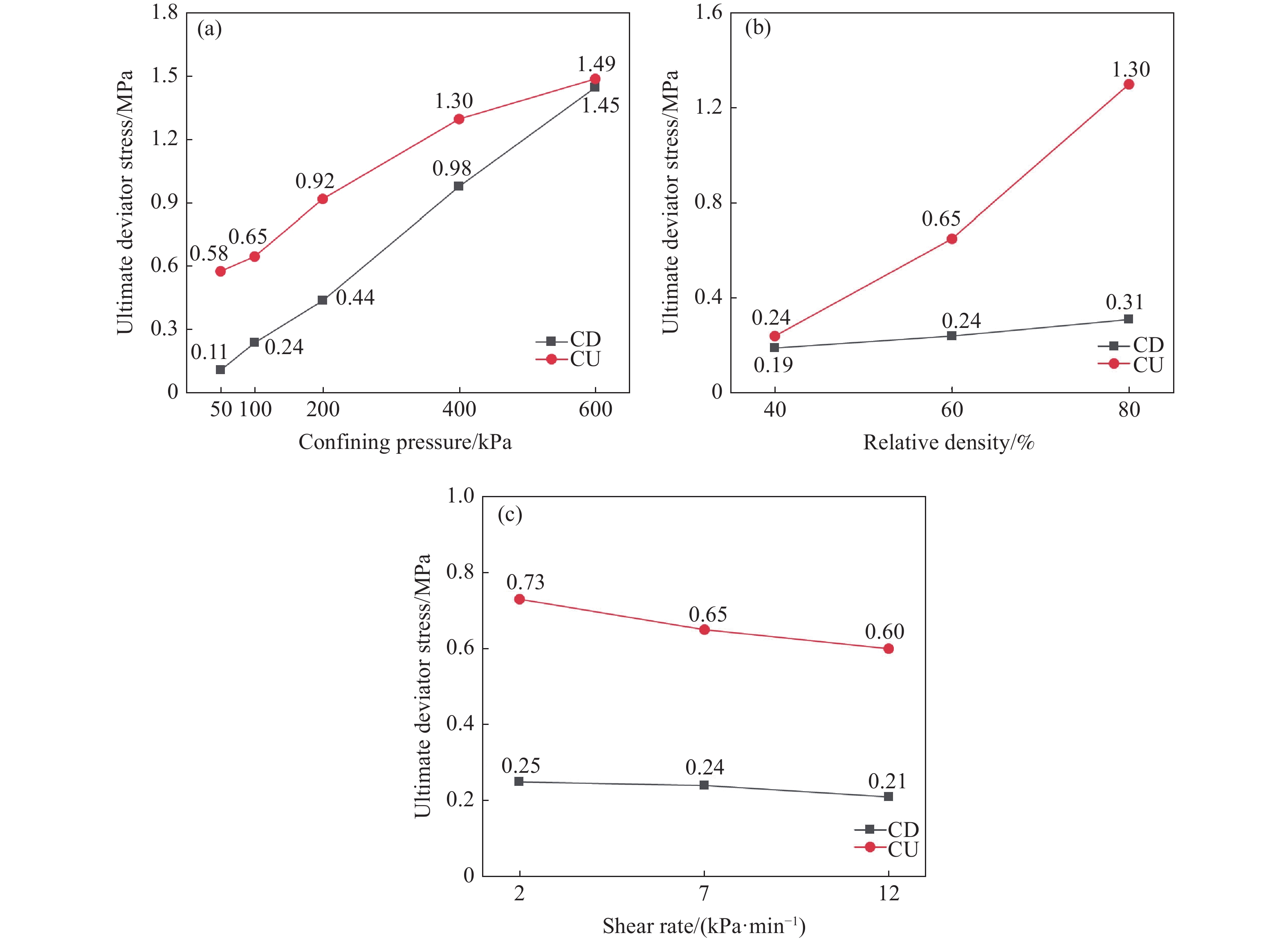

圖 13 不同試驗條件下極限偏應力. (a)圍壓；(b)密實度；(c)剪切速率

Figure 13. Ultimate deviator stress strength under different experimental conditions: (a) confining pressure; (b) relative density; (c) shear rate

下載: 全尺寸圖片幻燈片

表 1 黃河泥沙基本物理性質

Table 1. Basic physical properties of Yellow River silt

Coefficient of uniformity, C_u	Coefficient of graduation, C_c	ρ_dmax/(g·cm^?3)	ρ_dmin/(g·cm^?3)	Liquid limit, ω_L/%	Plastic limit, ω_P/%	I_P	G_S
5.08	1.662	1.65	1.357	23.8	12.4	11.4	2.7

下載: 導出CSV

表 2 黃河泥沙三軸試驗方案

Table 2. Triaxial test program of Yellow River silt

Test type	Confining pressure/kPa	Relative density/%	Shear rate/(kPa·min^?1)
CD/CU	50	60	7
	100	40	7
		60	2, 7, 12
		80	7
	200	60	7
	400	60	7
	600	60	7

下載: 導出CSV

表 3 特征狀態下的強度擬合包線參數值

Table 3. Parameters of fitting strength envelope at characteristic states

Test type	Characteristic states	A	n	R²
CD	Critical state	1.16	1.02	0.99
	Peak state	1.24	0.99	0.99
	Phase transformation state	0.98	1.08	0.99
CU	Peak (critical) state	1.25	1.03	0.99
CU	Peak pore pressure state	1.1	1.08	0.99

下載: 導出CSV

表 4 排水條件下各特征狀態對應的內摩擦角

Table 4. Internal friction angles at different characteristic states under CD condition

Confining pressure/kPa	Relative density/%	Shear rate/(kPa·min^?1)	φ_ps/(°)	φ_cs/(°)	φ_pt/(°)
50	60	7	31.8	30	23.95
100	40	7	27.5	26.9	23.76
	60	2, 7, 12	34.4, 33.2, 30.5	32.9, 31.7, 29.3	26.31, 26.03, 24.28
	80	7	38.1	33.8	27.6
200	60	7	28.7	26.8	25.21
400	60	7	31.6	30.9	29.24
600	60	7	30.6	29.8	29.17

下載: 導出CSV

表 5 不排水條件特征狀態下的內摩擦角

Table 5. Internal friction angles at different characteristic states under CU condition

Confining pressure/kPa	Relative density/%	Shear rate/(kPa·min^?1)	φ_p(φ_cs)/(°)	φ_up/(°)
50	60	7	32.9	28.1
100	40	7	25.7	22.6
	60	2, 7, 12	32.9, 32.6, 32.8	28.1, 29.1, 29.4
	80	7	34.1	29.6
200	60	7	33.2	30.2
400	60	7	33.2	31.2
600	60	7	34.1	32.7

下載: 導出CSV

表 6 不同試驗條件下的初始剪切模量以及極限偏應力

Table 6. Initial shear modulus and ultimate deviator stress strength under different test conditions

Confining pressure/kPa	Relative density/%	Shear rate/(kPa·min^?1)	Test type	a	E_i/MPa	b	(σ₁–σ₃)_ult/MPa	R²
50	60	7	CD	3.05	0.33	9.33	0.11	0.994
100	60	7	CD	1.63	0.61	4.13	0.24	0.989
200	60	7	CD	1.16	0.86	2.28	0.44	0.986
400	60	7	CD	0.84	1.19	1.02	0.98	0.993
600	60	7	CD	0.80	1.25	0.69	1.45	0.991
100	40	7	CD	4.94	0.20	5.18	0.19	0.984
100	80	7	CD	1.39	0.72	3.26	0.31	0.972
100	60	2	CD	1.61	0.62	4.01	0.25	0.981
100	60	12	CD	1.69	0.59	4.87	0.21	0.996
50	60	7	CU	7.46	0.13	1.72	0.58	0.994
100	60	7	CU	4.09	0.24	1.54	0.65	0.99
200	60	7	CU	1.81	0.55	1.09	0.92	0.991
400	60	7	CU	0.91	1.10	0.77	1.30	0.996
600	60	7	CU	0.61	1.64	0.67	1.49	0.999
100	40	7	CU	6.45	0.16	4.21	0.24	0.976
100	80	7	CU	3.72	0.27	0.77	1.30	0.995
100	60	2	CU	3.91	0.26	1.37	0.73	0.991
100	60	12	CU	3.60	0.28	1.68	0.60	0.980

下載: 導出CSV
